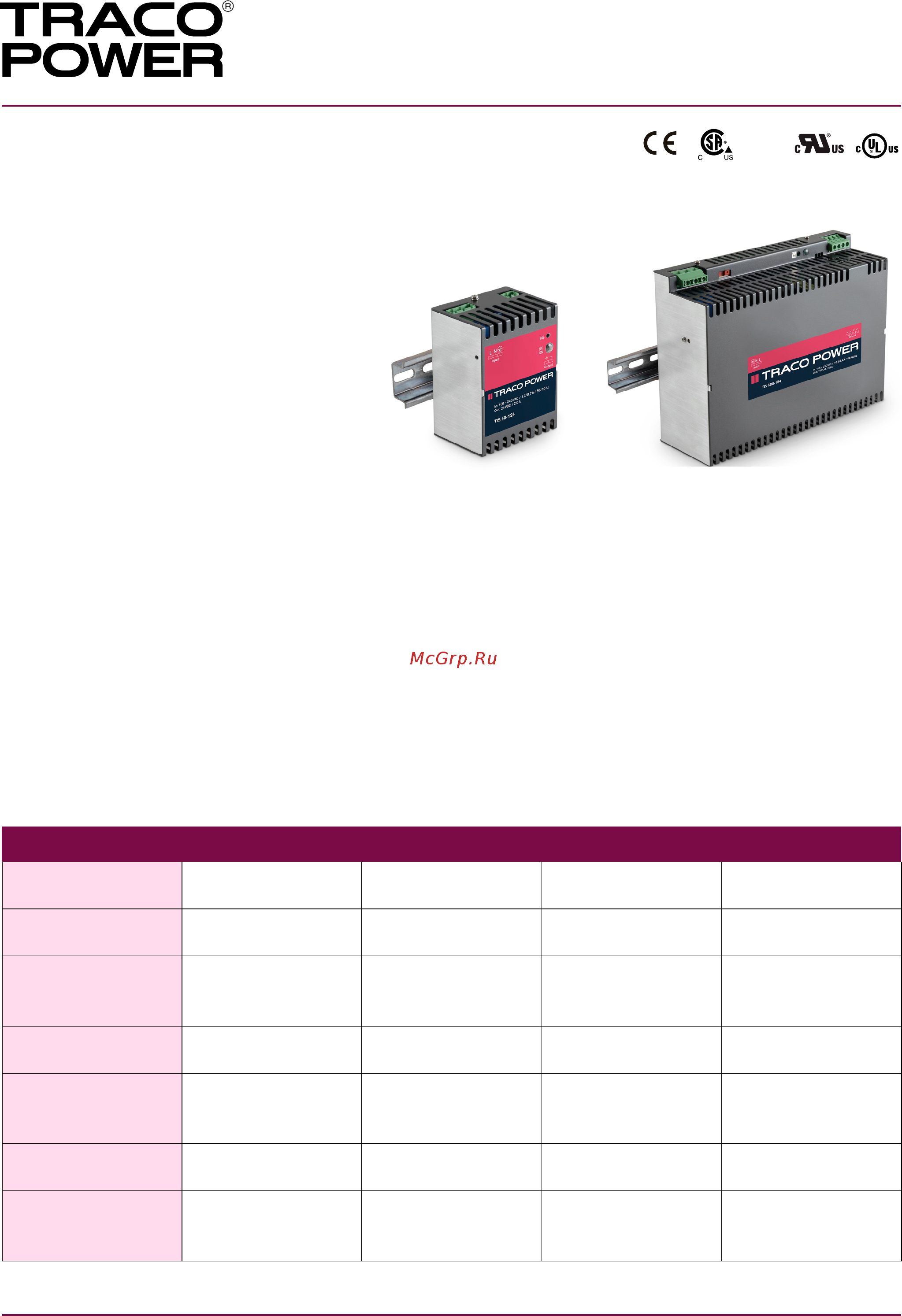

http://www.tracopower.com Page 1 of 12
Industrial Power Supplies
TIS Series, 50–600 Watt
Features
◆
Switch mode power supplies for
DIN-rail mount
◆ 6 power ranges with 2, 3, 6, 12, 20 and
24 A output current (24 VDC models)
◆ Selectable 115/230 VAC input
◆ Very low ripple and noise
◆ EMI complies with EN 61000-6-3 and
EN 61000-6-4
◆ Operating temp. range –25°C to +70°C
◆ For system operation available with
built-in functions:
RED: Redundancy module for N+1
Systems with true current sharing
SIG: Signal module with AC-power-
fail, power good signal and
external On/Off control
UDS: DC-UPS module for uninter-
ruptable battery backed-up
power systems
◆ Worldwide safety approvals incl.
class I, div. 2 location
◆ Easy snap-on mount on DIN-rails
or chassis mount
◆ 3-year product warranty
The switching power supplies of the TIS series have been particularly designed for
applications in industrial process control systems and with machine tools. Excellent
specifications and high immunity against electrical disturbances guarantee reliable
power for sensitive loads in rugged industrial environments. With the help of op-
tional function modules specific requirements for system applications can be easily
realized with a standard model. With the UDS module the power supplies can be
extended to a perfect DC-UPS with automatic battery- backup. This function is very
often required in applications where a time delayed shutdown of a system is neces-
sary. To monitor and control the power supply a signal module can be installed.
For parallel operation with active power sharing a redundancy option is available.
This flexibility makes the TIS series power supplies a cost effective solution for many
industrial applications.
Order Code Input Voltage Output Power Output Voltage Output Current
(includes terminal plugs)
nom. max. nom. max.
TIS 50-112
115 –240 VAC
50 W
12 VDC 3.5 A
TIS 50-124
universal input
24 VDC 2.0 A
TIS 75-112
115/23 0 VAC
12 VDC 6.0 A
TIS 75-124
selectable
75 W
24 VDC 3.0 A
TIS 75-148 48 VDC 1.5 A
TIS 150-124
115/23 0 VAC
150 W
24 VDC 6.0 A
TIS 150-148
selectable
48 VDC 3.0 A
TIS 300-124
115/23 0 VAC
24 VDC 12.0 A
TIS 300-148
selectable
300 W
48 VDC 6.0 A
TIS 300-172 72 VDC 4.2 A
TIS 500-124-115
115 VAC 500 W
24 VDC 20.0 A
TIS 500-124-230
230 VAC 500 W
24 VDC 20.0 A
TIS 600-124 24 VDC 24.0 A
TIS 600-148
115/23 0 VAC
600 W
48 VDC 12.0 A
TIS 600-172
selectable
72 VDC 8.5 A
Models
CB
Scheme
(LVD)
UL 60950-1
UL 508
UL 1604
