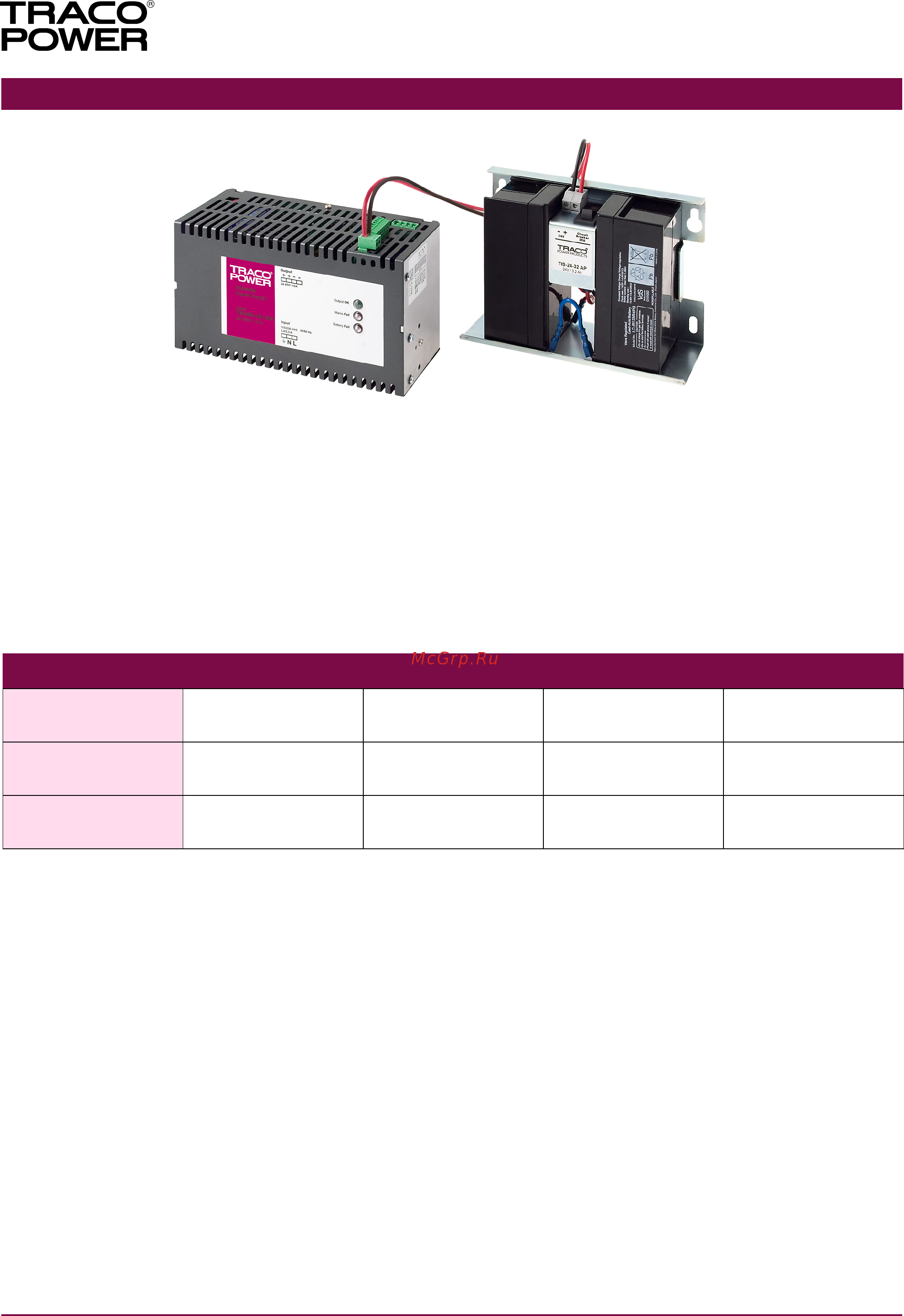

DC-UPS-System

Industrial Power Supplies

TIS Series 50–600 Watt

In addition to the standard power supply function, these models

include a professional battery management system to charge and

monitor an external battery. In the event of a power failure the

battery is switched automatically and without any interruption to

the DC output. Once mains power is available again, the battery

is switched off. The backup time is limited only by battery capacity

and load. Charge current and voltage can be adjusted to values as

required by battery type. Power fail and low battery alarm signals

are available via two independent relay contacts. During normal

operation the battery status is monitored by periodically loading

the battery for a short time. If a cell resistance is high, there is a

relay alarm is available. The battery is fully protected under any

operational conditions. The power supply is short circuit protected

even in battery backup operation but, for safety reasons, the bat-

tery should be ﬁtted with a fast blow fuse. Battery mode can be

activated by interconnecting pin 7 and 8.

External Batteries

For external batteries we recommend:

Two Panasonic LC-R123R4PG in series for 3.4 Ah: www.tracopower.com/products/tsp-panas_034.pdf

Two Panasonic LC-R127R2PG1 in series for 7.2 Ah: www.tracopower.com/products/tsp-panas_072.pdf

Mounting Devices for Batteries

Order Code:

TIS 24-32AF Frame & wiring for two Panasonic LC-R123R4PG batteries

TIS 24-70AF Frame & wiring for two Panasonic LC-R127R2PG1 batteries

Mounting devices including Batteries on request.

Order Code

Input Voltage Output Power Output Voltage Output Current

max. nom. max.

TIS 300-124 UDS

115/230 VAC 300 W

24 VDC 12 A

selectable

TIS 600-124 UDS

115/230 VAC 600 W

24 VDC 24 A

selectable

Models

1) Includes terminal plugs, does not include batteries

2) reduce max. output current by battery charging current
