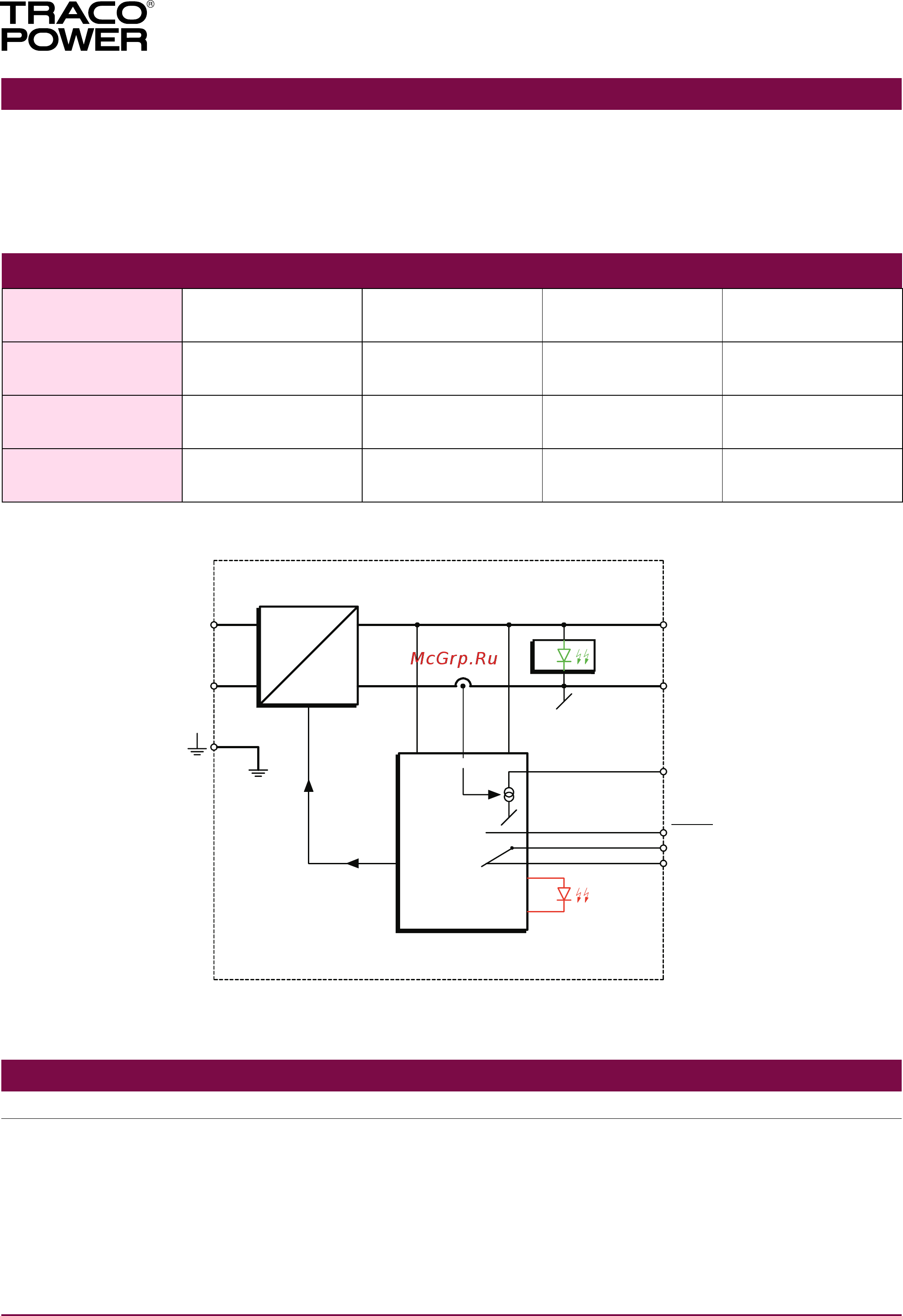

http://www.tracopower.com Page 4 of 12
Power Supplies with Redundancy Function
With this option a parallel operation of up to 5 units is possible. Decoupling diodes and current share lines allow to build true N +1 redun-
dant systems with active current sharing for all units. This function also includes an alarm relay to signal a single unit failure.
This option is available for TIS 150 W, TIS 300 W and TIS 600 W models.
Please note: This option cannot be combined with other options.
Industrial Power Supplies
TIS Series 50–600 Watt
Order Code Input Voltage Output Power Output Voltage Output Current
(includes terminal plugs)
max. nom. max.
TIS 150-124 RED
115/230 VAC
150 W
24 VDC 6.0 A
TIS 150-148 RED
selectable
48 VDC 3.0 A
TIS 300-124 RED
115/230 VAC
300 W
24 VDC 12 A
TIS 300-148 RED
selectable
48 VDC 6.0 A
TIS 600-124 RED
115/230 VAC
600 W
24 VDC 24 A
TIS 600-148 RED
selectable
48 VDC 12 A
Models
I-Sense
Regulator
L
Con1
Pin3
N
115/230VAC
Con1
Pin1
AC
Con1
Pin2
DC
Common
Unit
OK
Unit OK
Con3 - Pin1
Bus
Indicator
Con2 - Pin1/2
Con2 - Pin3/4
V-Sense
+Vout
Current
Share-
line
Unit OK
Con3 - Pin4
Con3 - Pin3
Con3 - Pin2
-Vout
24/48VDC
Specifications
Rating per relay contact 60 VDC /0.36 A max.
Instruction manual for RED option can be downloaded under:
www.tracopower.com/overview/tis
