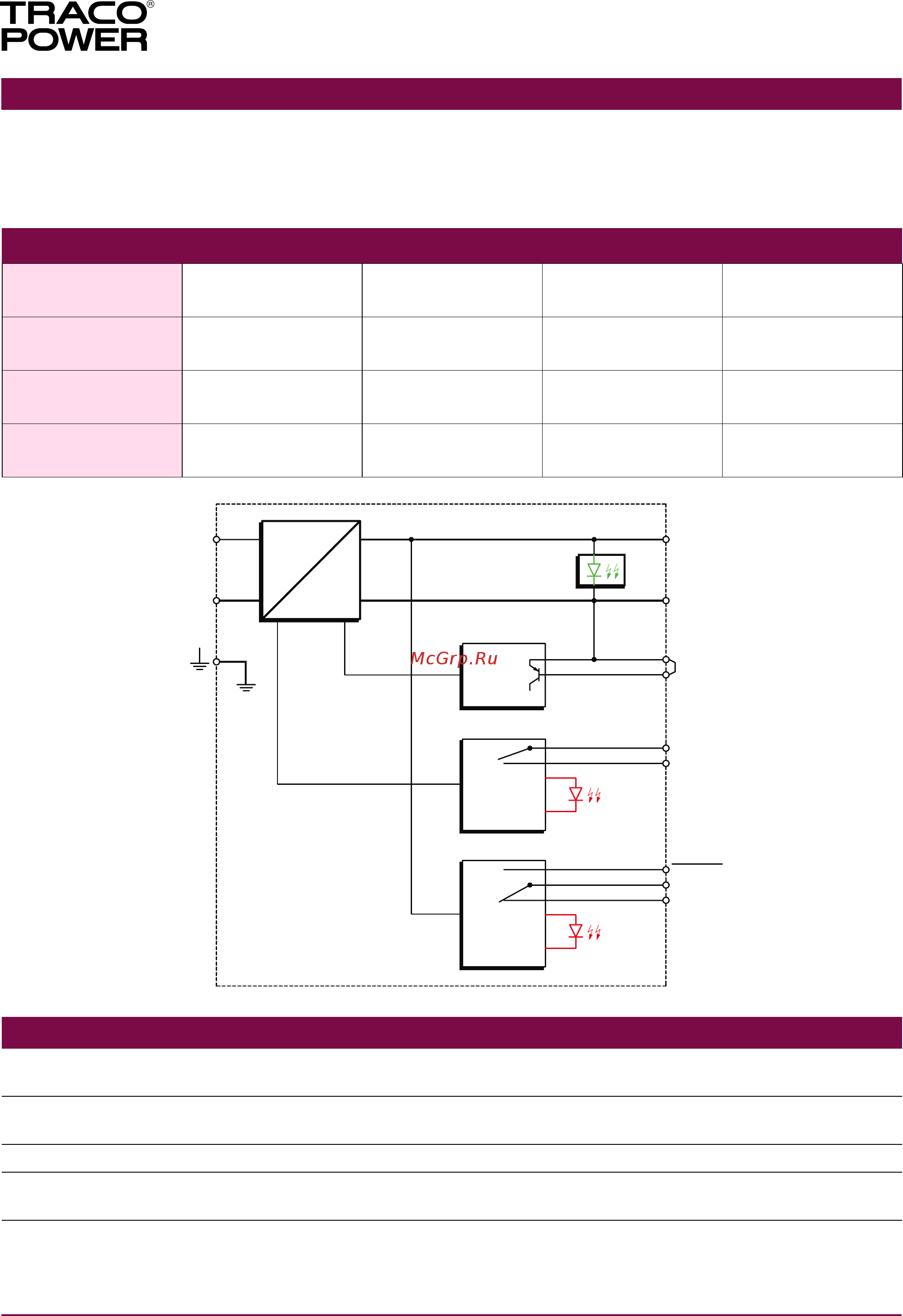

http://www.tracopower.com Page 5 of 12
Power Supplies with Powerfail Functions
These models provide 3 functions required in many process control system applications:
◆ AC-Powerfail signal (relay contact)
◆ Power Good signal (relay contact)
◆ Remote On/Off
Industrial Power Supplies
TIS Series 50–600 Watt
Order Code Input Voltage Output Power Output Voltage Output Current
(includes terminal plugs)
max. nom. max.
TIS 150-124 SIG
115/230 VAC
150 W
24 VDC 6.0 A
TIS 150-148 SIG
selectable
48 VDC 3.0 A
TIS 300-124 SIG
115/230 VAC
300 W
24 VDC 12 A
TIS 300-148 SIG
selectable
48 VDC 6.0 A
TIS 600-124 SIG
115/230 VAC
600 W
24 VDC 24 A
TIS 600-148 SIG
selectable
48 VDC 12 A
Models
Remote
ON/OFF
L
115/230VAC
Con1
Pin1
N
Con1
Pin2
Con1
Pin3
AC
DC
Mains
Fail
Detection
Mains OK
Remote
ON/OFF
+Vout
Con2 - Pin3/4
-Vout
24/48VDC
Common
AC-Powerfail
Con3 - Pin2
Con3 - Pin7
Con3 - Pin6
Con2 - Pin1/2
Output
OK
Power Good
Detection
Power Good
Common
Power Good
Power Good
Con3 - Pin5
Con3 - Pin4
Con3 - Pin3
+
-
Con3 - Pin1
(Relay A)
(Relay B)
Specifications
Power Good signal trigger point
models with 24 Vout: >22.8 VDC ±0.5 V
relay B closed (pin 4 – pin 3)
models with 48 Vout: >45.6 VDC ±1.0 V
relay B closed (pin 4 – pin
3)
AC-Powerfail signal Vin <93 resp. <187 VAC relay A closed
(pin 7 – pin 6)
Raiting per relay contact 60 VDC /0.36 A max.
Remote On/Off – On short circuit con 3 pin 1 and pin 2
– Off open circuit con 3 pin 1 and pin 2
Instruction manual for SIG option can be downloaded under:
www.tracopower.com/overview/tis
