Biostar A55MH Версия 6.x [10/51] A memory modules

Motherboard Manual

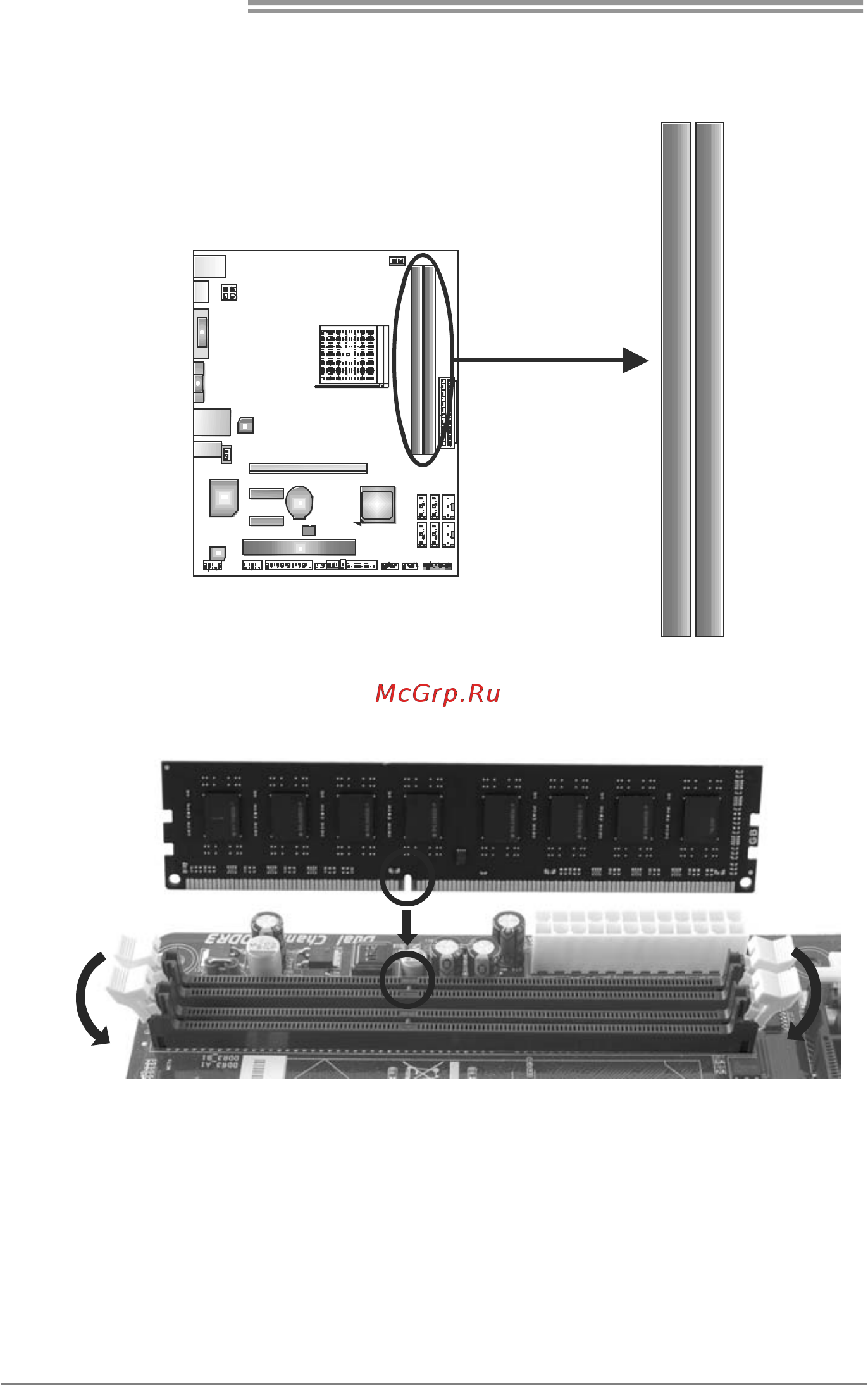

2.3 INSTALLING SYSTEM MEMORY

A. Memory Modules

DDR B3_ 1

D3_A1RD

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a

DIMM on the slot such that the notch on the DIMM matches the

break on the Slot.
