Biostar TF8200 A2+ Версия 5.x [11/65] A memory modules

TF8200 A2+

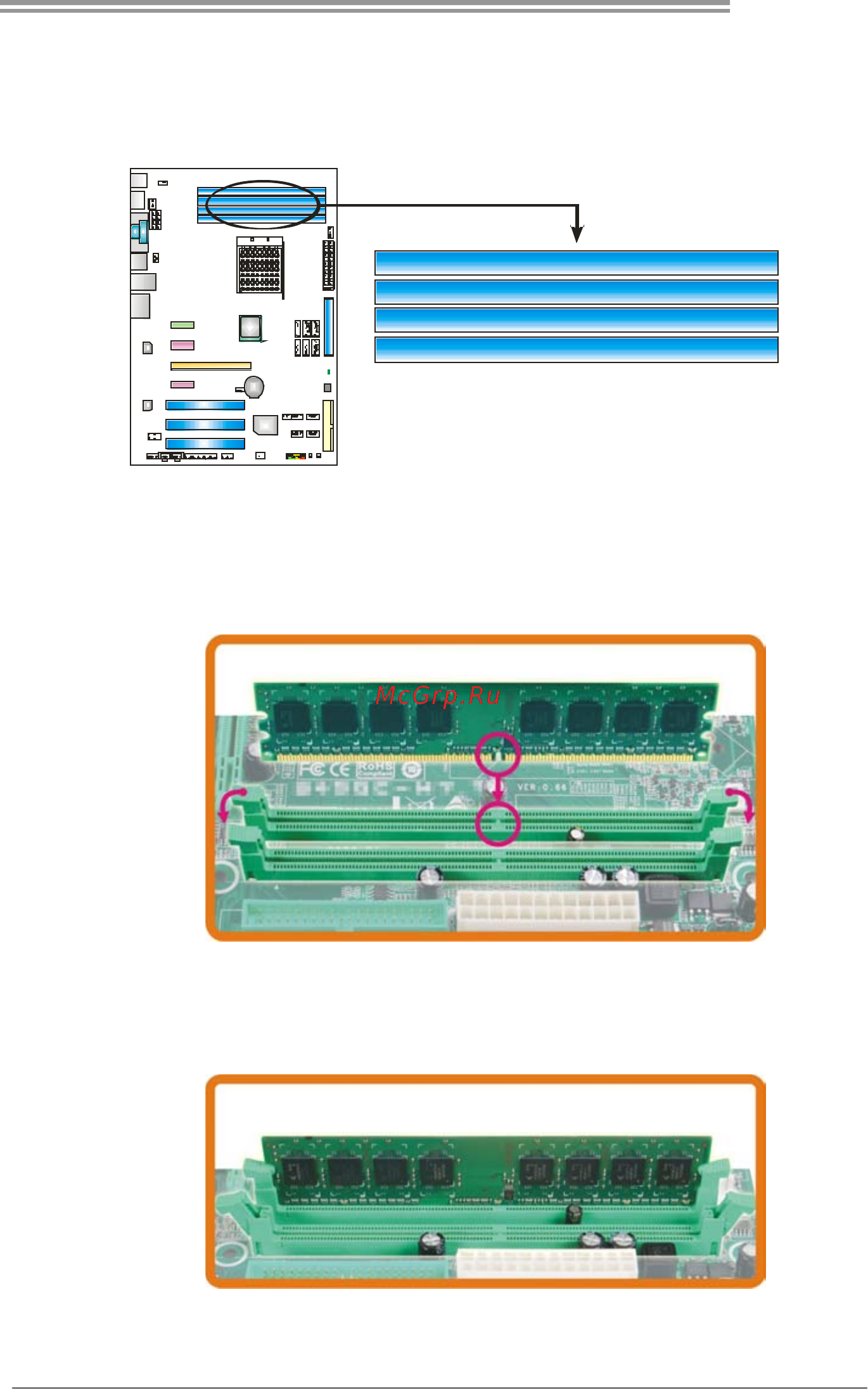

2.3 INSTALLING SYSTEM MEMORY

A. Memory Modules

DIMMB2

DIMMA2

DIMMA1

DIMMB1

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a

DIMM on the slot such that the notch on the DIMM matches the

break on the Slot.

2. Insert the DIMM vertically and firmly into the slot until the retaining

chip snap back in place and the DIMM is properly seated.
