Biostar TF8200 A2+ Версия 5.x [18/65] Jcdin1 cd rom audio in connector

Motherboard Manual

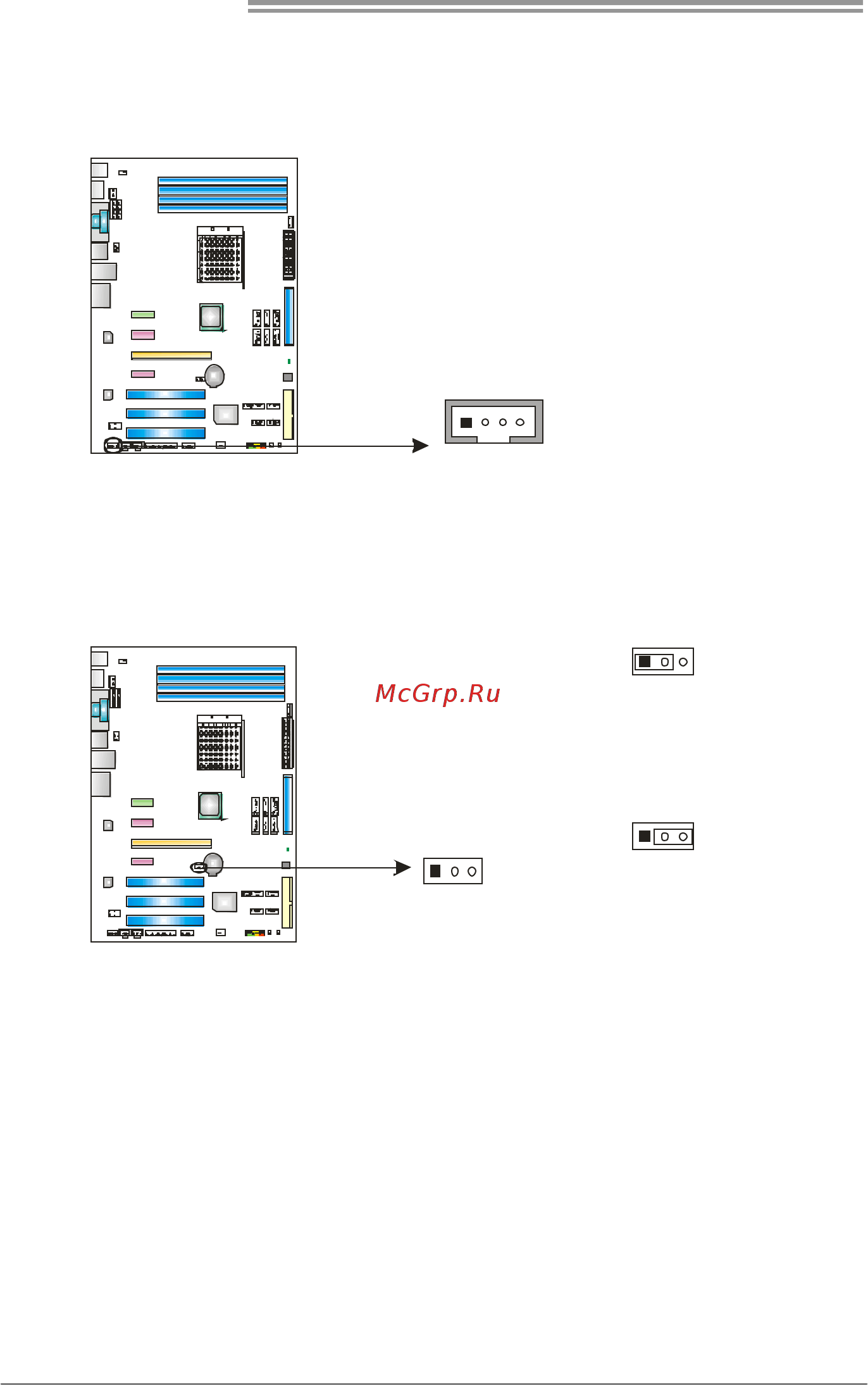

JCDIN1: CD-ROM Audio-in Connector

This connector allows user to connect the audio source from the variaty devices,

like CD-ROM, DVD-ROM, PCI sound card, PCI TV turner card etc.

Assignment

1 Left Channel Input

2 Ground

3 Ground

4 Right Channel Input

JCMOS1: Clear CMOS Header

By placing the jumper on pin2-3, it allows user to restore the BIOS safe setting

and the CMOS data, please carefully follow the procedures to avoid damaging

the motherboard.

Pin 1-2 Close:

Normal Operation (default).

Pin 2-3 Close:

Clear CMOS data.

※ Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 2-3 close”.

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 close”.

5. Power on the AC.

6. Reset your desired password or clear the CMOS data.
