TF8200 A2+

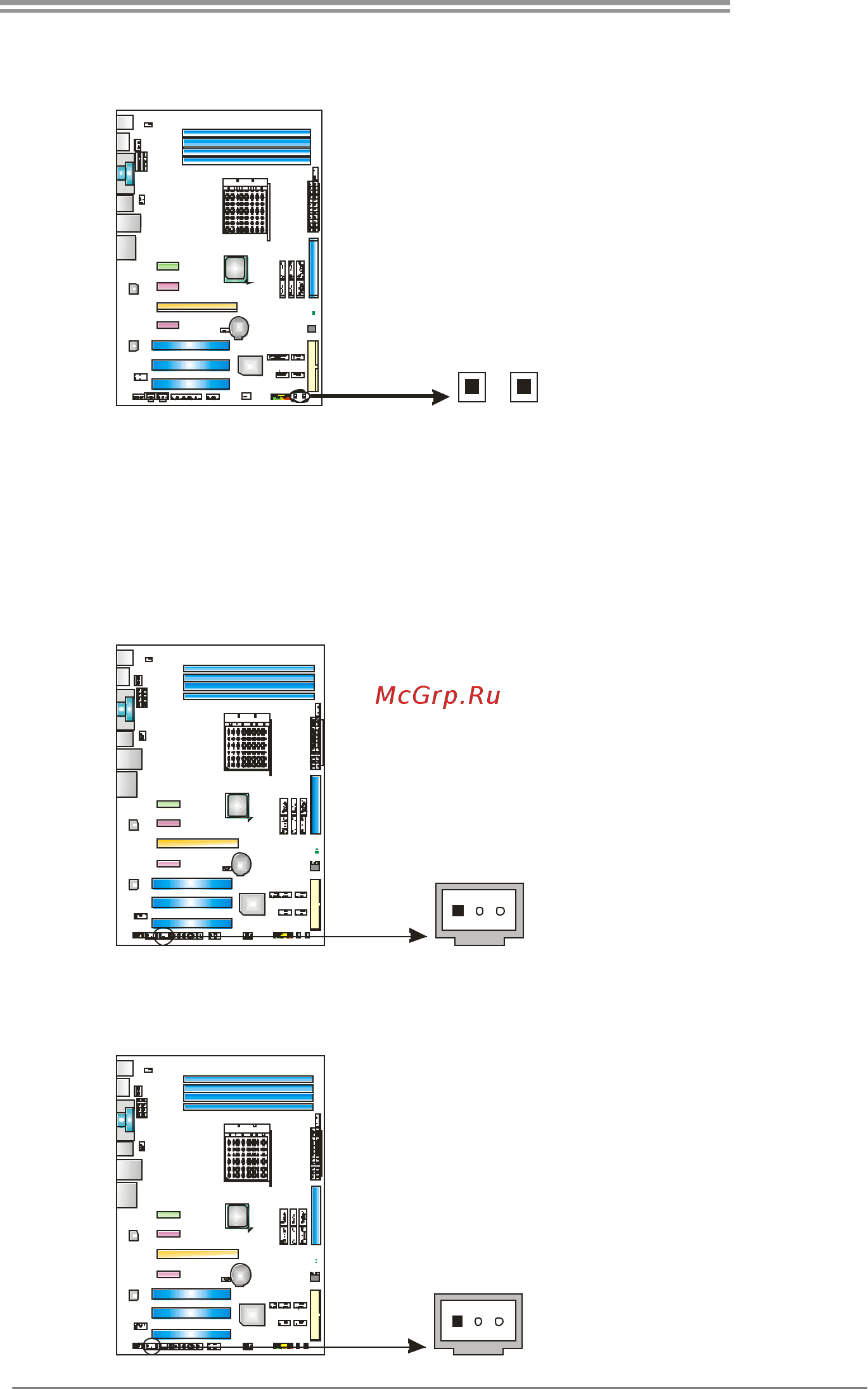

On-Board Buttons

There are 2 on-board buttons.

PWRSW1

RSTSW1

PWRSW1:

This is an on-board Power Switch button.

RSTSW1:

This is an on-board Reset button.

JSPDIF_OUT1: Digital Audio-out Connector

This connector allows user to connect the PCI bracket SPDIF output header.

Assignment

1 +5V

2 SPDIF_OUT

3 Ground

JSPDIF_IN1: Digital Audio-in Connector

This connector allows user to connect the PCI bracket SPDIF input header.

Assignment

1 +5V

2 SPDIF_IN

3 Ground
