Chapter 1 Motherboard Description
1-8

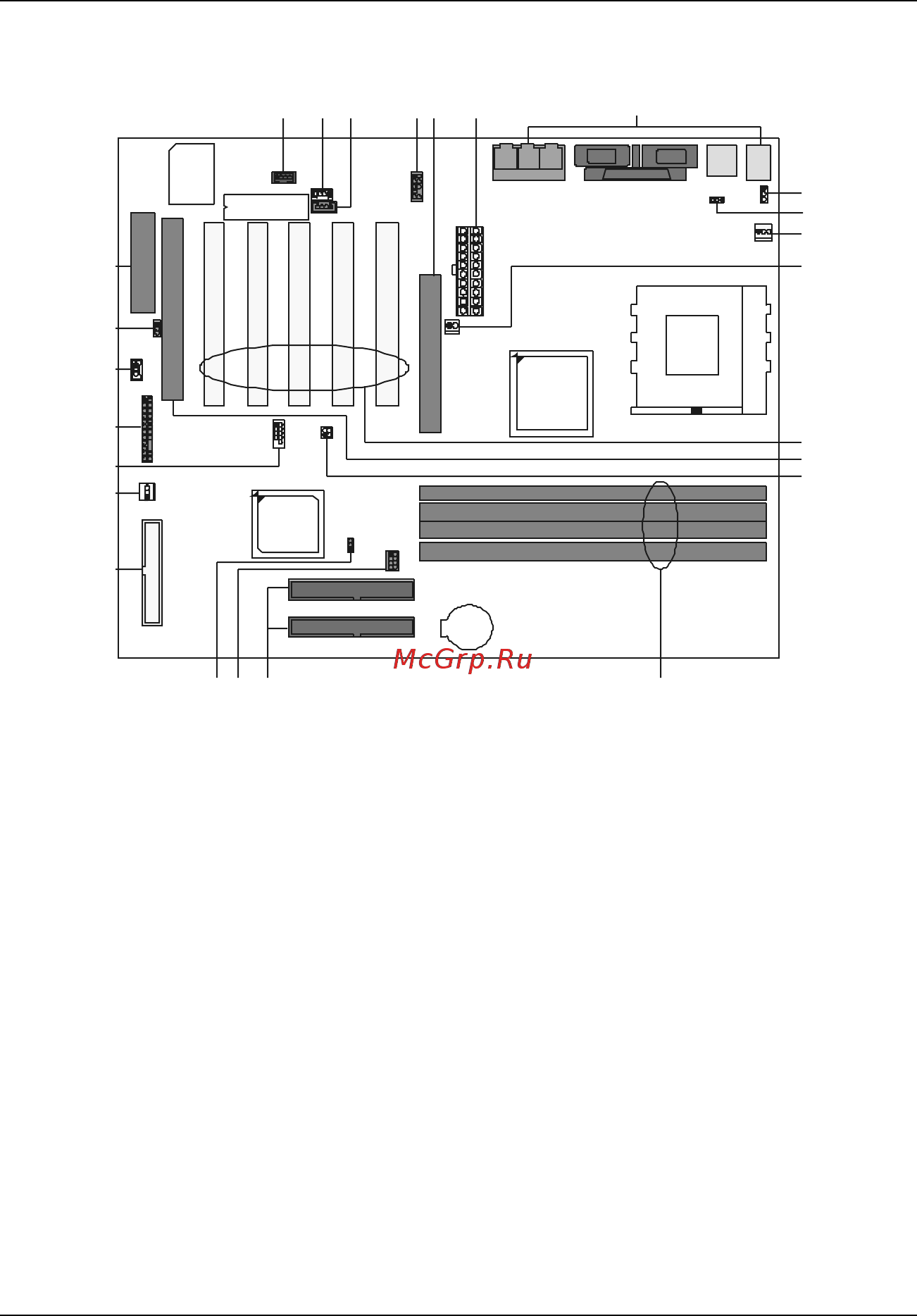

1.2.3 Quick Reference
A. Back Panel I/O Connectors O. Clear CMOS (JCMOS1)
B. ATX Power Connector (JATXPWR1) P. DDR DIMM Voltage (J9)
C. AGP Slot (AGP1) Q. IDE Connectors (IDE1-2)
D. Front Audio Header (JAUDIO1) R. DIMMs (DIMM1-4)
E. CD Audio-In Header (JCDIN1) S. CPU Clock Selection (JCLK1)
F. CD Audio-In Header (JCDIN2) T. ACR Slot (ACR1)
G. Telephony Header (JTAD1) U. PCI BUS Slots (PCI1-5)
H. CNR Slot (CNR1) V. North Bridge Chipset (U2) FAN
I. Codec Selection (J2) Header (JNFAN1)
J. Wake-On-LAN Header (JWOL1) W. CPU FAN Header (JCFAN1)
K. Front Panel Connector (JPANEL1) X. 5V / 5VSB Selection for USB
L. Front USB Header (JUSB2) (JUSBV1)
M. System FAN Header (JSFAN1) Y. 5V / 5VSB Selection for KB (JKBV1)
N. Floppy Disk Connector (FDD1)
CPU
DIMM1
DIMM2
DIMM3
DIMM4
So ck et A
VT8366/A
Winbon d
W83697
VT8233A
BIOS
ABCDEFG
H
I
M
N
O
P
Q
R
T
U
V
S
W
X
K
L
Y
J
