Biostar M7VIB [41/73] Standard cmos features

Chapter 2 BIOS Setup

2-6

2.2 Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into 10 categories. Each

category includes no, one or more than one setup items. Use the arrow keys to

high light the item and then use the<PgUp> or <P gDn> keys to select the value you

want in each item.



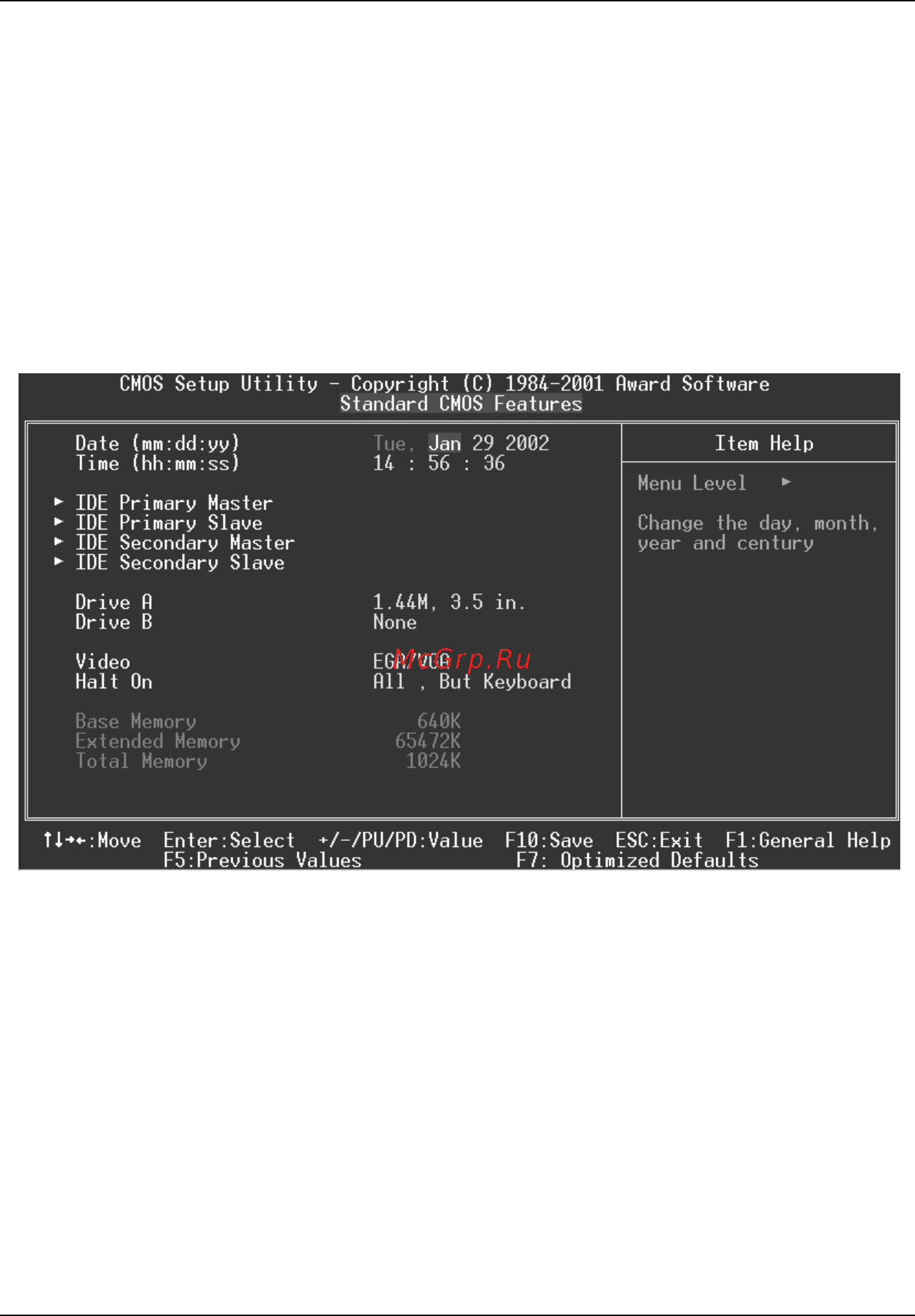

Figure 2. Standard CMOS Setup
