Chapter 1 Motherboard Description

1-13

1.4.2 How to install a DIMM Module

1. The DIMM socket has a “ Plastic Safety

Tab”, and the DIMM memory module has

an “Asymmetrical notch”, so the DIMM

memory module can only fit into the slot

in one direction.

2. Push the tabs out. Insert the DIMM

memory modules into the socket at a

90-degree angle, and then push down

vertica lly so that it will fit into the place.

3. The Mounting Holes and plastic tabs

should fit over the edge and hold the

DIMM memory modules in place.

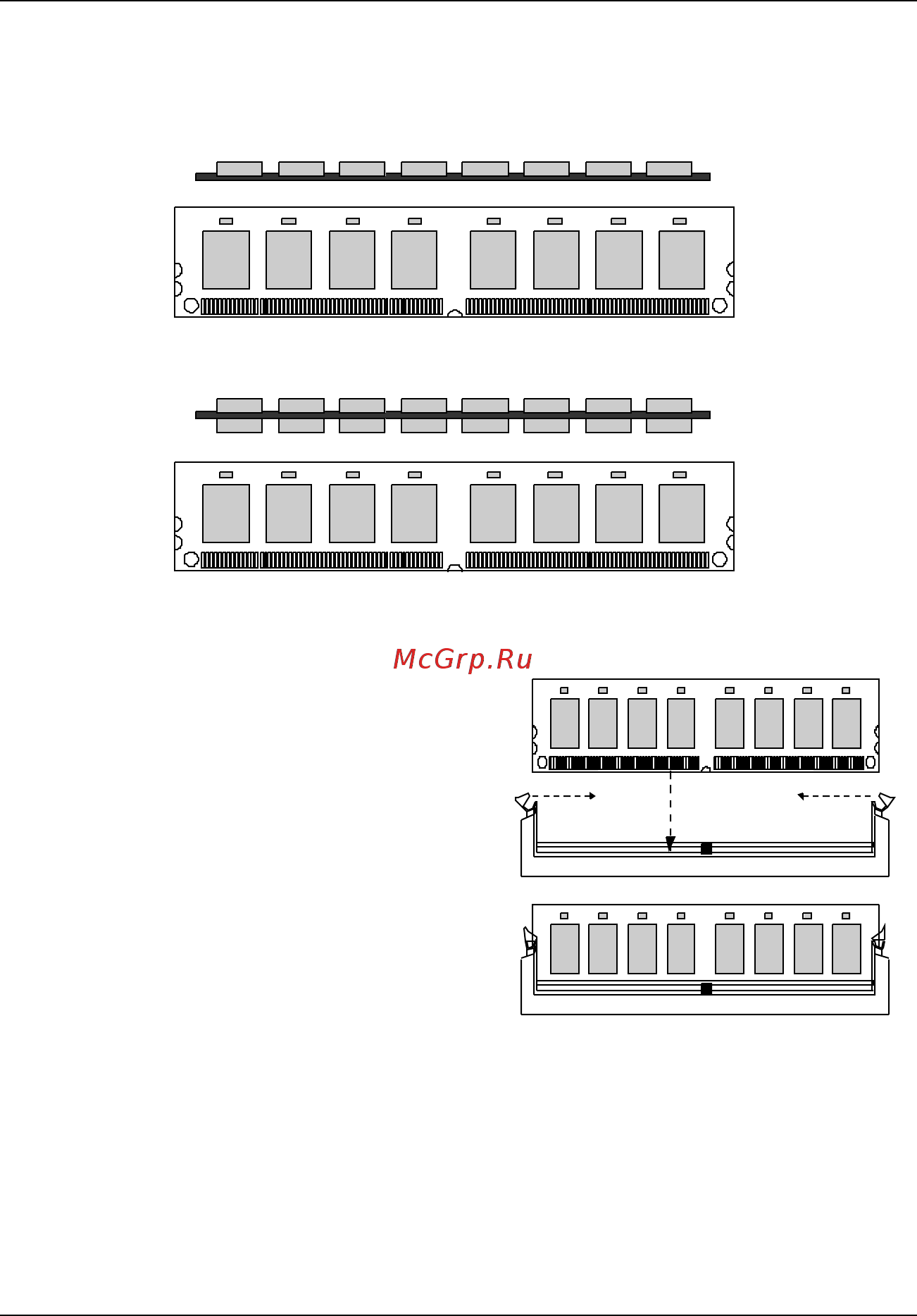

Single Sided DIMM

Double Sided DIMM
