Chapter 1 Motherboard Description

1-14

1.5 Slots

The slots in this motherboard are designed to hold expansion cards and connect them to

the system bus. Expansion slots are a mean of adding or enhancing the motherboard's

features and capabilities. With these efficient facilities, you can increase the

motherboard's capabilities by adding hardware that performs tasks that are not part of

the basic system.

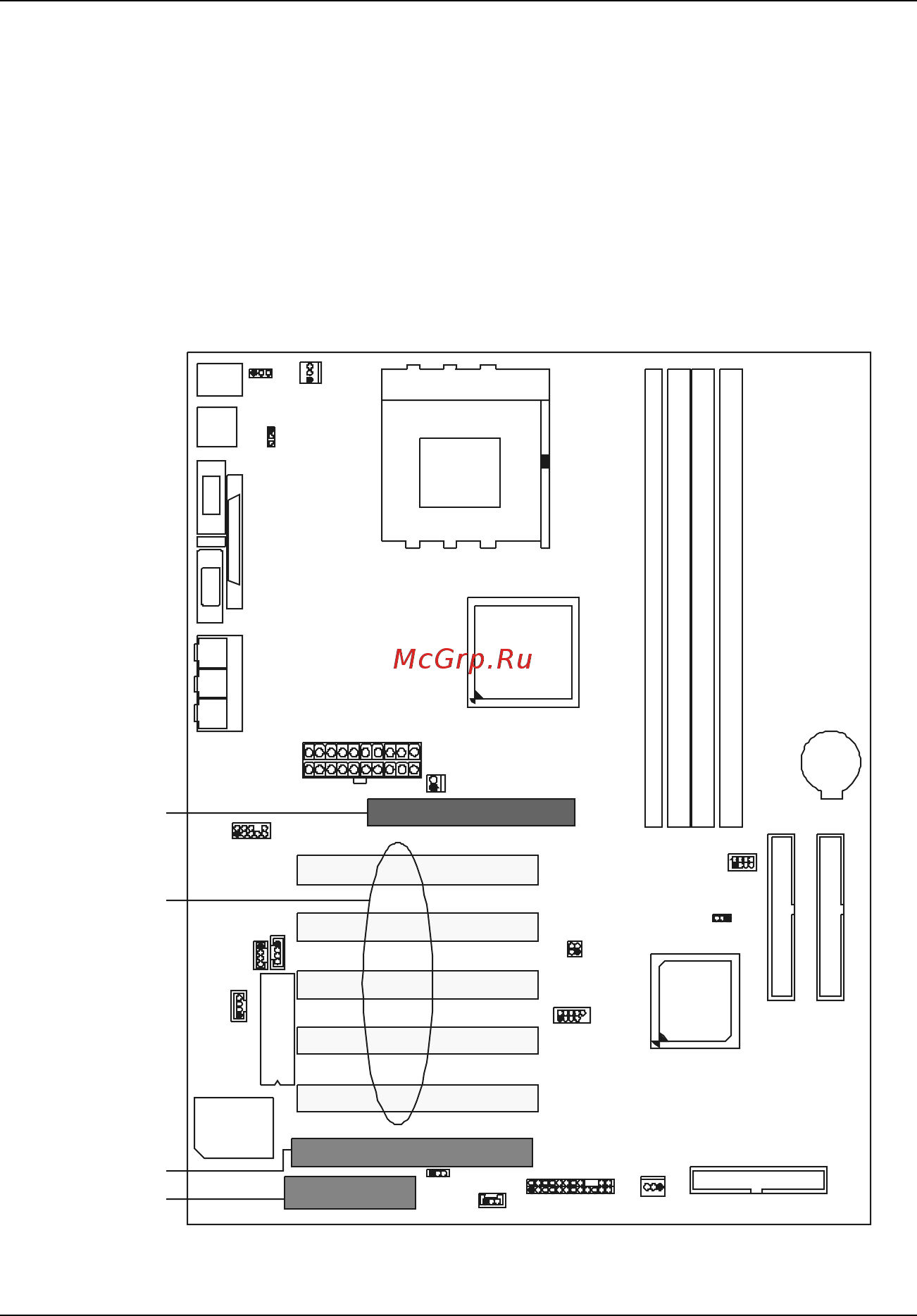

CPU

PCI SLOT

ACR SLOT

CNR SLOT

Socket A

VT8366/A

Winbond

W83697

VT8233A

BIOS

DIMM1

DI MM2

DIMM3

DI MM4

AGP SLOT
