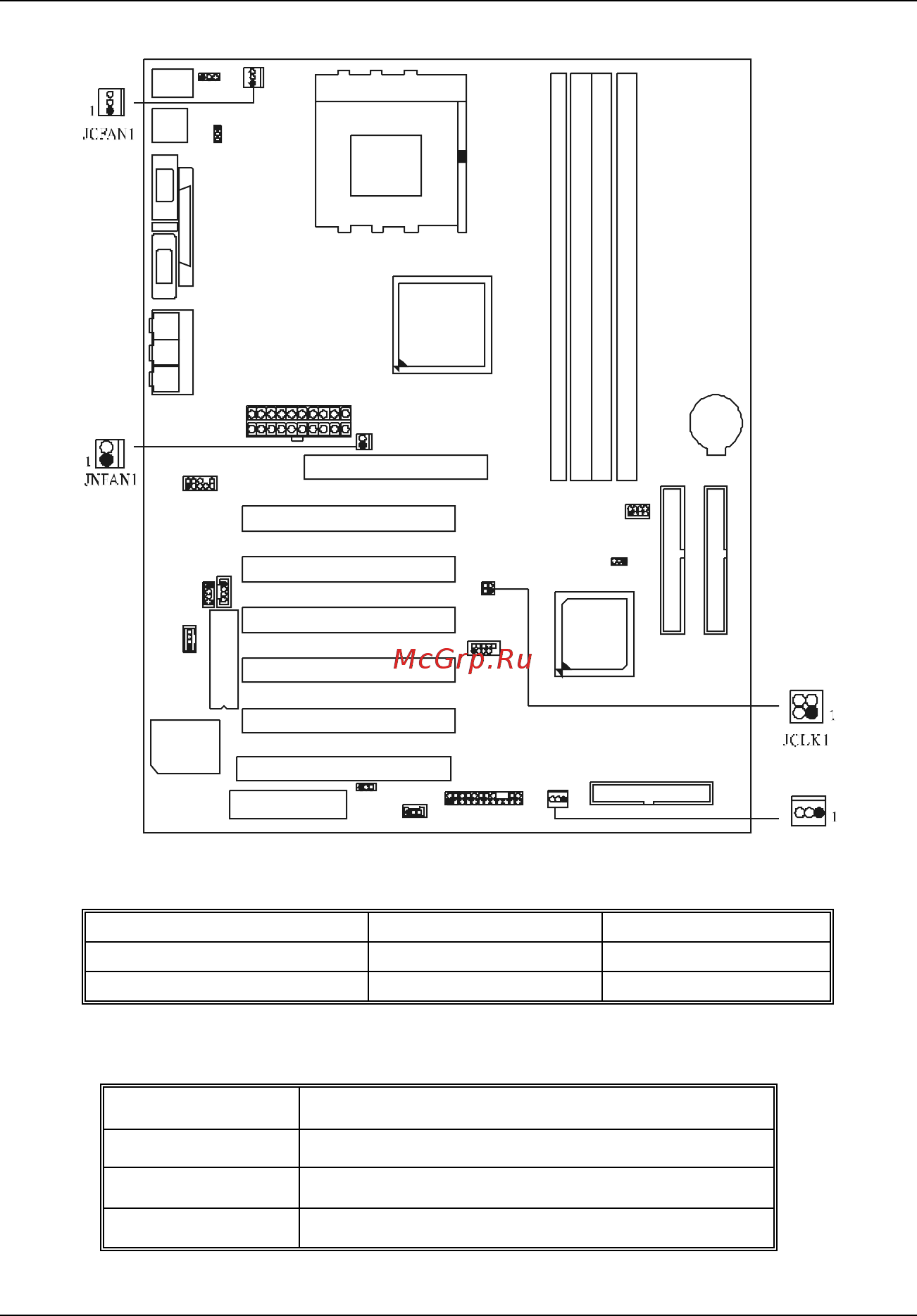

Biostar M7VIB [15/73] Frequency selection jclk1

Chapter 1 Motherboard Description

1-10

1.3.2 Frequency Selection: JCLK1

CPU Clock PIN 1-2 PIN 3-4

100.0MHz OFF OFF

133.3MHz ON ON

1.3.3 CPU Fan Header: JCFAN1

Pin No. Assignment

1 Ground

2 +12V

3 Sense

CPU

BAT1

DIMM1

DIMM2

DIMM3

DIMM4

So cket A

VT8366/A

W83697

VT8233A

Winbond

BIOS

JSFAN1
