REFNET Pipe System ED34-645B
644 Installation of Outdoor Units

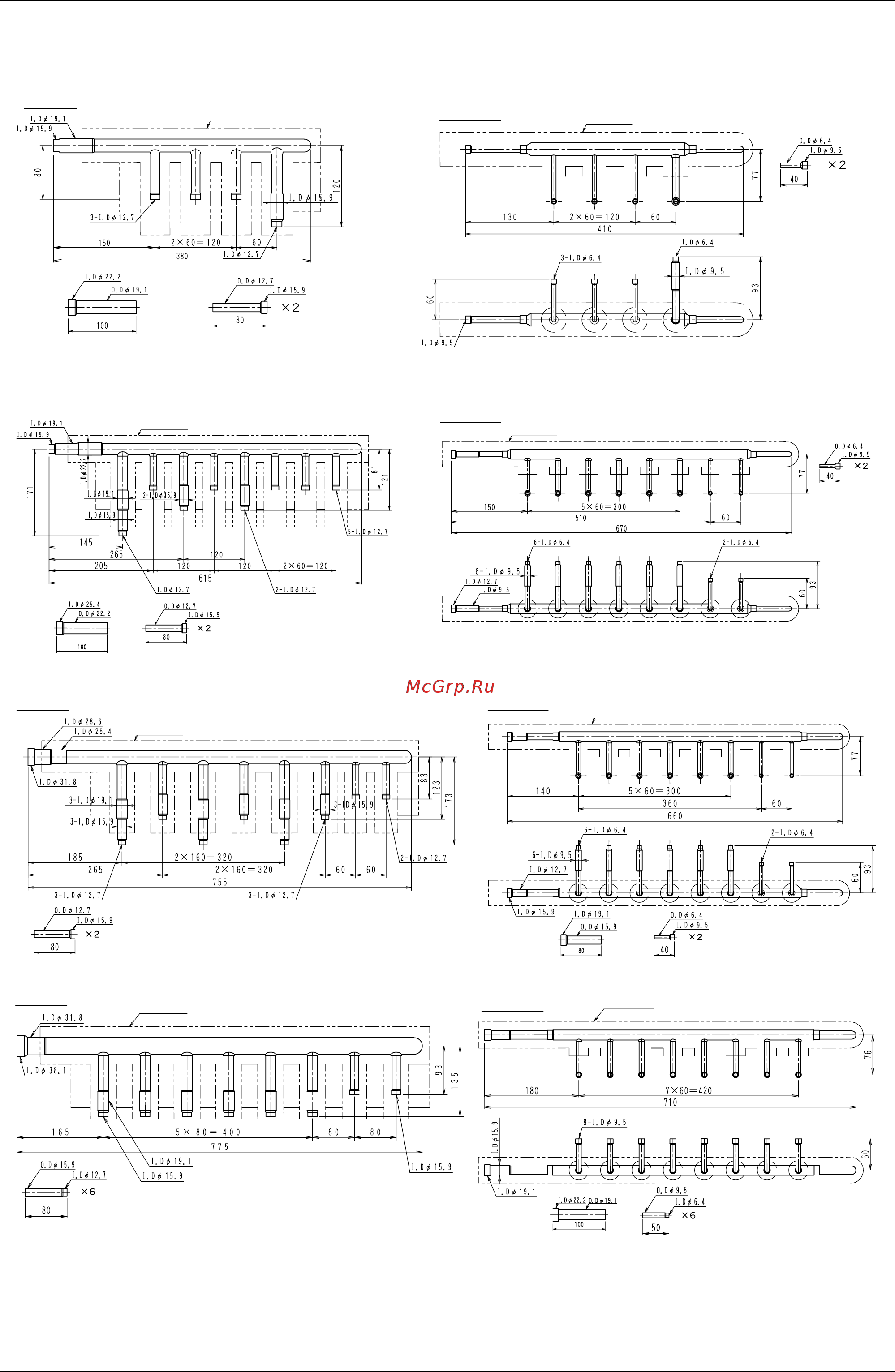

4.2 REFNET Header (Branch Kit)
KHRP26M22H
KHRP26M33H
KHRP26M72H
KHRP26M73H
D3K03629B
Gas Side
Liquid Side
Insulation
Insulation
D3K03630B
Gas Side
Liquid Side
Insulation
Insulation
D3K03631B
Gas Side Liquid Side
Insulation
Insulation
D3K03632B
Gas Side
Liquid Side
Insulation
Insulation
