Control Functions ED34-645B
854 Control
Notes:
1. Setting is carried out in the group mode. however, if the mode number inside the parentheses is selected, indoor
units can also be set individually.
2. The SECOND CODE number is set to “ ” when shipped from the factory.
3. Not displayed if the indoor unit is not equipped with that function.
4. When returning to the normal mode. “88” may be displayed in the LCD in order for the remote controller to initialize
itself.
5. ∗ : Setting the static pressure selection for FXD (Q)

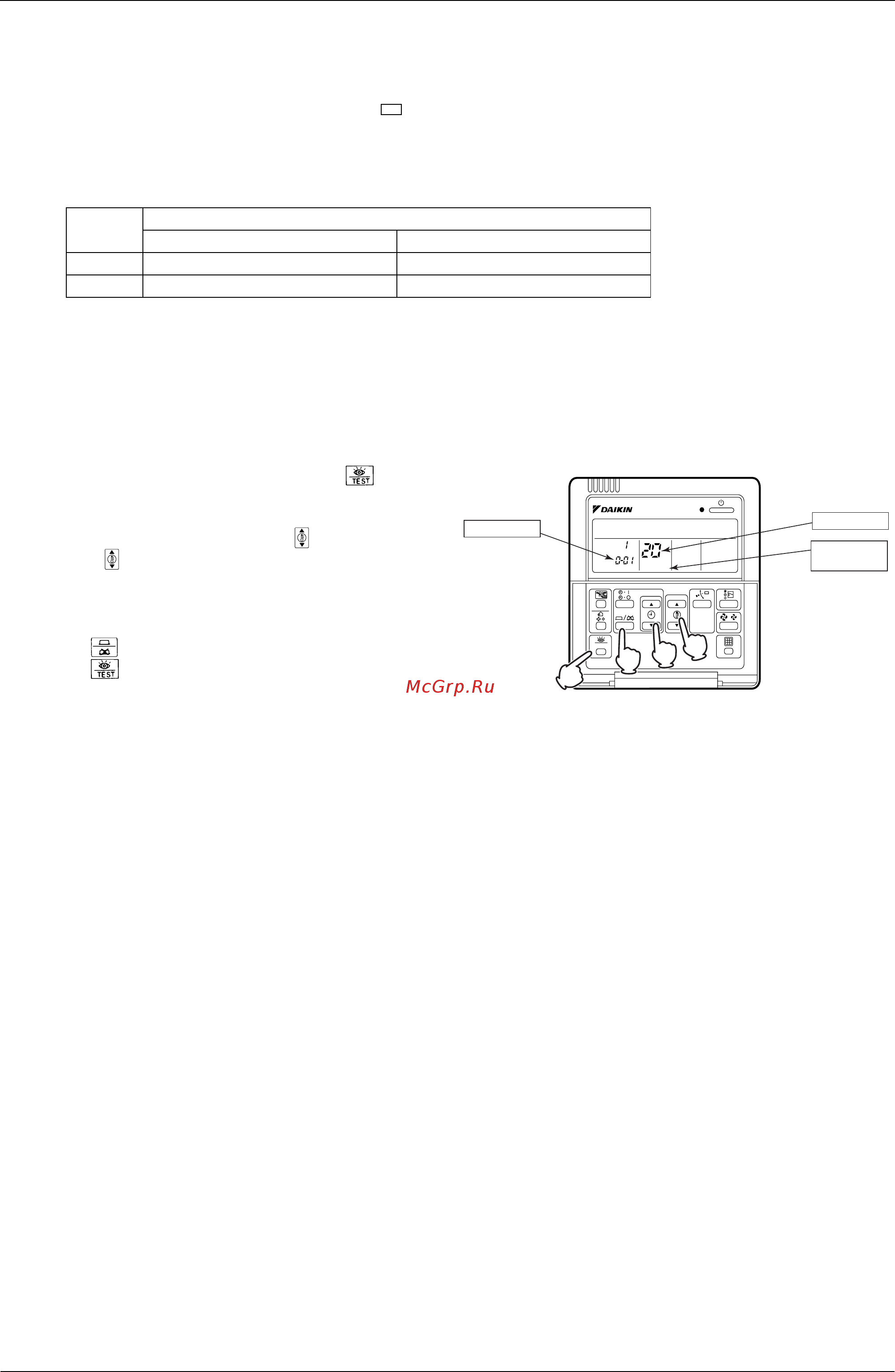

6.1.3 Setting Group No. for Centralized Control
In order to conduct the central remote control using the central remote controller and the unified ON/OFF controller,
Group No. settings should be made by group using the operating remote controller.
Make Group No. settings for central remote control using the operating remote controller.
Note:
For simplified remote controller, see the following.
For setting group No. of HRV and wiring adaptor for other air conditioners, etc., refer to the instruction manual
attached.
NOTICE
Enter the group No. and installation place of the indoor unit into the attached installation table. Be sure to keep the
installation table with the operation manual for maintenance.
SECOND CODE NO.
01 (Factory Setting) 02 (High Static Pressure Setting)
FXD 20 Pa 49 Pa
FXDQ 15 Pa 44 Pa
1. While in normal mode, press and hold the switch
for a period of four seconds or more to set the system to
"Field Setting Mode".”
2. Select the MODE No. “00” with the “ ” button.
3. Use the “ ” button to select the group No. for each
group.
(Group numbers increase in the order of 1-00, 1-01, ... 1-15,
2-00, ... 4-15.)
4. Press “ ” to set the selected group No.
5. Press “ ” to return to the NORMAL MODE.
SETTING
TEST
UNIT NO.
5
2,6
4
3
GROUP NO.
MODE NO.
FIELD SET
MODE
