Caution for Refrigerant Leaks ED34-645B
870 Guide Specifications
2. Caution for Refrigerant Leaks
2.1 Introduction

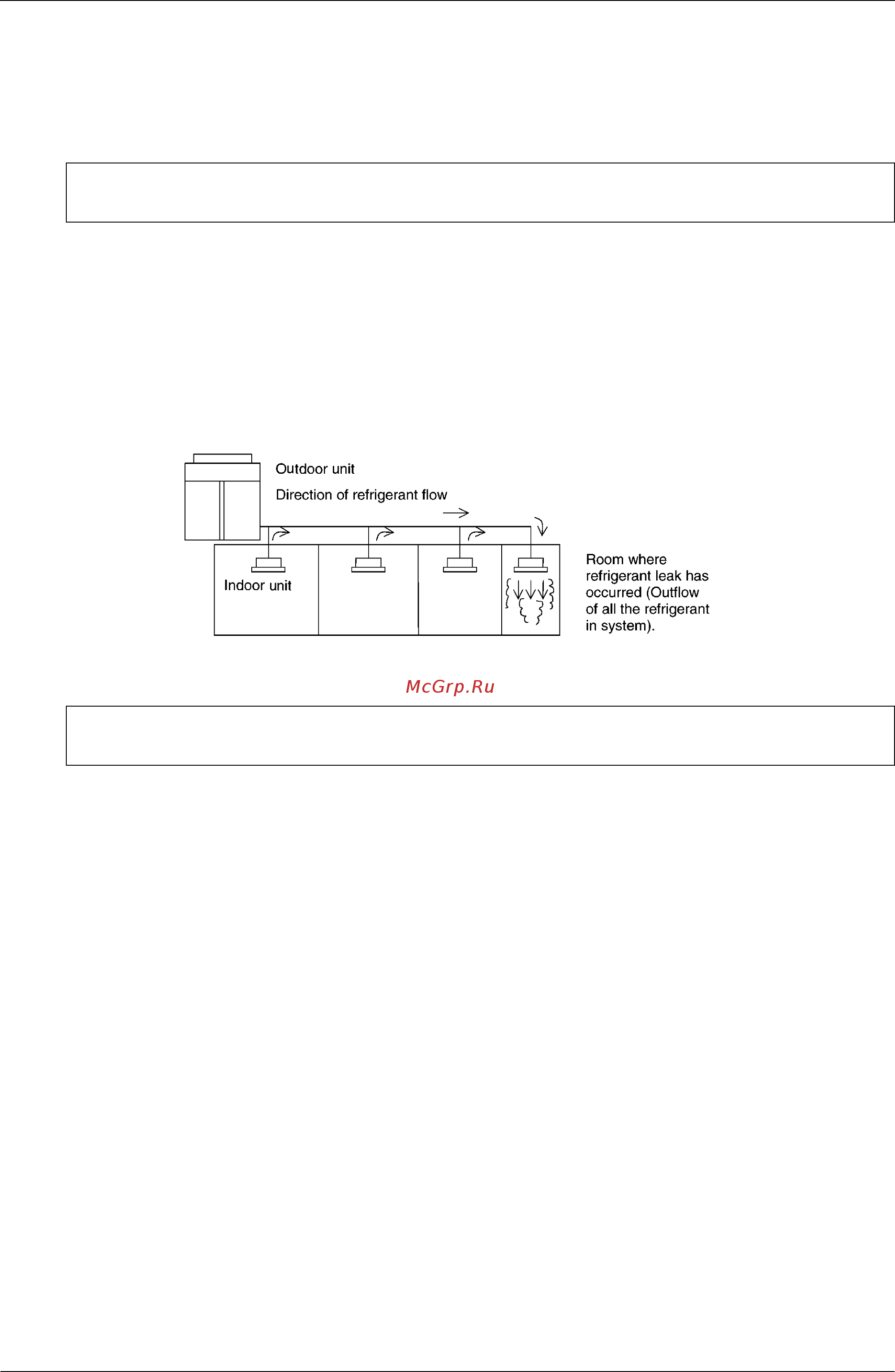

Points to note in connection with refrigerant leaks
Maximum Concentration Level
The maximum charge of refrigerant and the calculation of the maximum concentration of refrigerant is directly related
to the humanly occupied space in to which it could leak.
The unit of measurement of the concentration is kg/m³ (the weight in kg of the refrigerant gas in 1m³ volume of the
occupied space).
Compliance to the local applicable regulations and standards for the maximum allowable concentration level is
required.
In Australia the maximum allowed concentration level of refrigerant to a humanly space is limited to 0.35 kg/m³ for R-407C,
and 0.44 kg/m³ for R-410A.
The installer and system specialist shall secure safety against leakage according to local regulations or
standards. The following standards may be applicable if local regulations are not available.
Pay special attention to the place, such as a basement, etc., where refrigerant can stay, since refrigerant is
heavier than air.
