Control Devices ED34-645B
760 Control
4.4.5 Initial Setting
Setting 1. through 3. are initialized when power is turned ON, therefore complete settings before activating the power.
1. Connector for setting master controller (X1A) (Provided with connector at factory set)
When using 1 unified ON/OFF controller, do not disconnect the connector for setting master controller. (Use the
unit with the connector in the state in which it was delivered.)
When using multiple unified ON/OFF controllers, or using the unified ON/OFF controller in conjunction with other
optional controllers for centralized control, makes settings as indicated in the right table.
Note:
For instructions on how to set the connector for setting master controller on the central remote controller, see the
installation manual provided with the central remote controller.

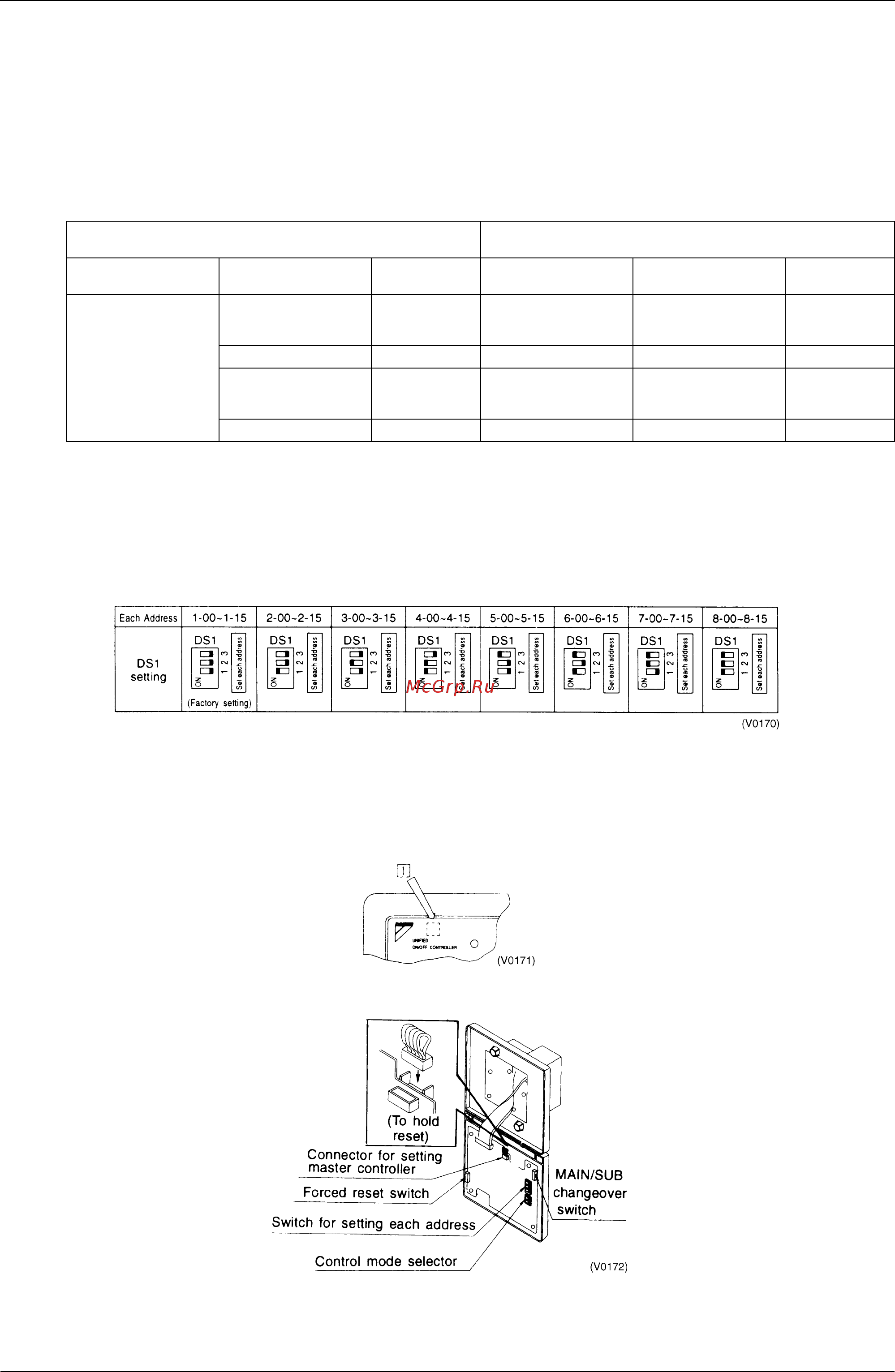

2. Switch for Setting Each Address (DS1)
These switches are used to set group control address.
Groups Nos. 1-00 through 1-15 are grouped in the same control group when the unit is shipped from the factory.
After setting, attach the number seal applicable to respective control range of the attached switch display sticker, as
shown in the diagram below.
(Example)
In The Case of 1-00 to 1-15, Attach .
Pattern of connection of optional controllers for centralized
control
Connector for setting master controller (X1A) Settings
Unified ON/OFF
Controller
Central Remote
Controller
Schedule
Timer
Unified ON/OFF
Controller
Central Remote
Controller
Schedule
Timer
1 to 16
——
Set one to “Used” and
all the rest to “Not
used”.
——
1 to 4 — Set all to “Not used”. (Note) —
—1
Set one to “Used” and
all the rest to “Not
used”.
— “Not used”
1 to 4 1 Set all to “Not used”. (Note) “Not used”
