ED34-645B Control Devices
Control 761
16

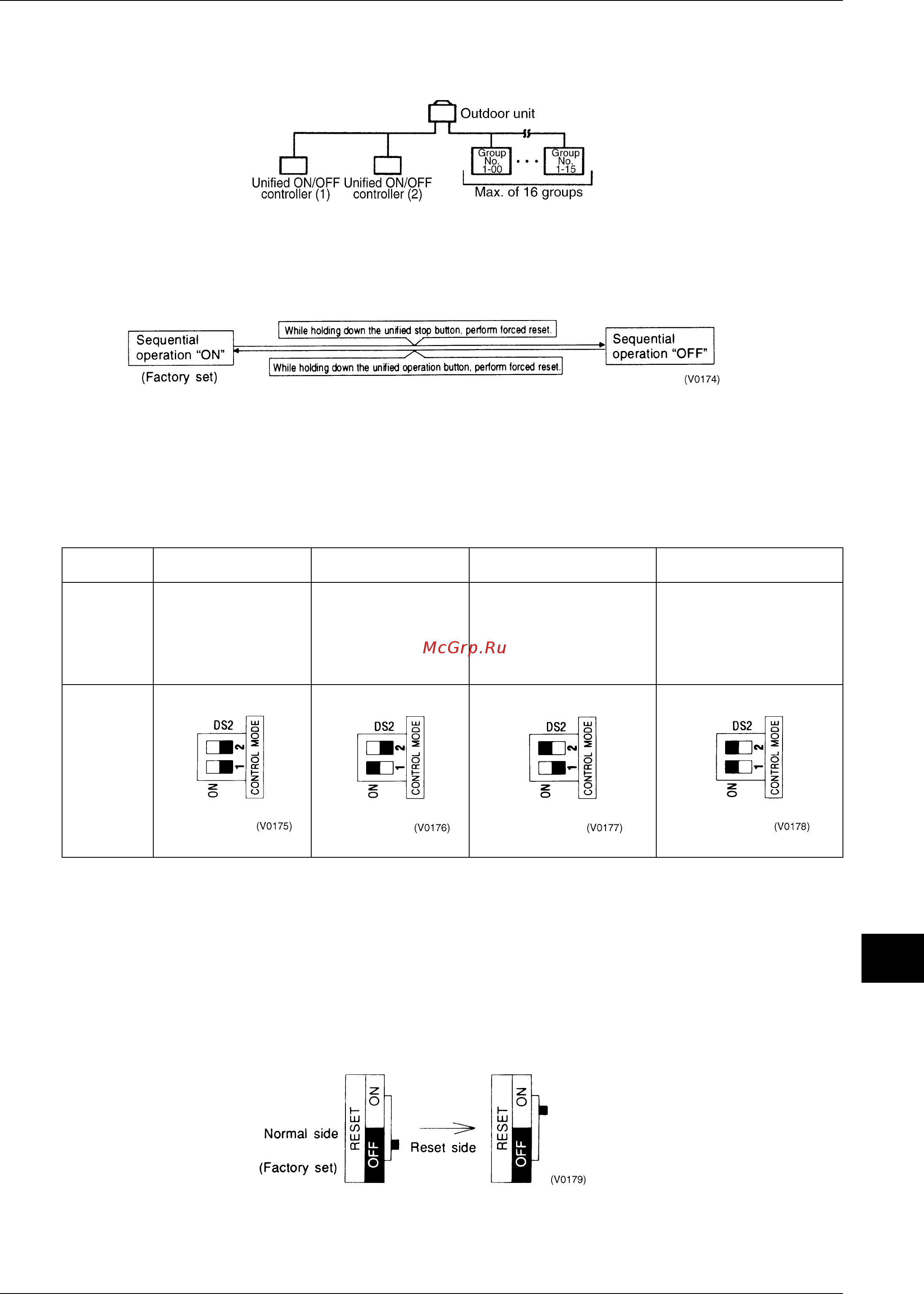

3. MAIN/SUB Changeover Switch Setting
With two unified ON/OFF controllers, centralized control (indoor units) is possible from different locations. In this
kind of set-up, it is necessary to set the MAIN/SUB changeover switch.
One of the two unified ON/OFF controllers (1) · (2) is set to “MAIN” while the other is set to “SUB”.
4. Setting of the Sequential Operation Function
The unified ON/OFF controller is equipped with a sequential operation function that sequentially turns indoor units
on in 2-second intervals during unified operation. (Sequential operation is factory set to “ON.”) To switch
sequential operation ON or OFF, set as follows.
Note:
The sequential operation function is designed to reduce the load on the power supply equipment, but does not
guarantee that compressors will not be started simultaneously. You cannot therefore count on a capacity reduction
effect by power supply equipment breaker selection.
5. Control Mode Selector (DS2)
The following four patterns of control mode can be set.
Note:
“” Indicates the position of switches.
Set control mode before turning power supply ON.
When used in conjunction with central remote controller, the control modes of the central remote controller has
the priority.
6. Forced Reset Switch (SS1)
When changing the setting of the connector for setting master controller, etc., you can reset simply by setting it to
the reset side once and returning to the normal side, without turning the power OFF.
(For normal operation, set the switch to the normal side.)
C: 1P162827
Control Mode Individual Centralized Timer Operation Possible by
Remote Controller
ON/OFF Control Impossible
by Remote Controller
Content Operation/stop is
controlled by both unified
ON/OFF controller and
remote controller.
After operated by unified
ON/OFF controller,
operation/stop is freely
controlled by remote
controller until stopped
by unified ON/OFF
controller.
When used in conjunction
with schedule timer,
operation/stop is controlled
freely by remote controller
during the set time but
operation is not available
when schedule timer is ON.
Operation/stop is controlled
by unified ON/OFF controller
only. (This unit can not be
operated/stopped by remote
controller.)
DS2 Setting
(Factory set)
