Planet VF-102-KIT [13/16] Chassis installation and rack mounting

Step 4: VF-102-R (Receiver): Connect coaxial cable from

monitor / DVR to Video BNC port of the VF-102-R.

Step 5: Connect the 5VDC power adapter to the VF-102-T / VF-

102-R and verify that the Power LED lights up.

Step 6: Turn on the power of the analog camera / monitor; the

VIDEO LED (Green) should light when all cables are

attached.

Speed Dome

DVR / Monitor

Control Keyboard

Fiber-optic

Audio Line / Video Line

A/V

Serial Line (RS-485)

|O|O|

A/V

|O|O|

A/V

|O|O|

A/VA/V

Up to 20km

Coax

VF-102-T

Transmitter

VF-102-R

Receiver

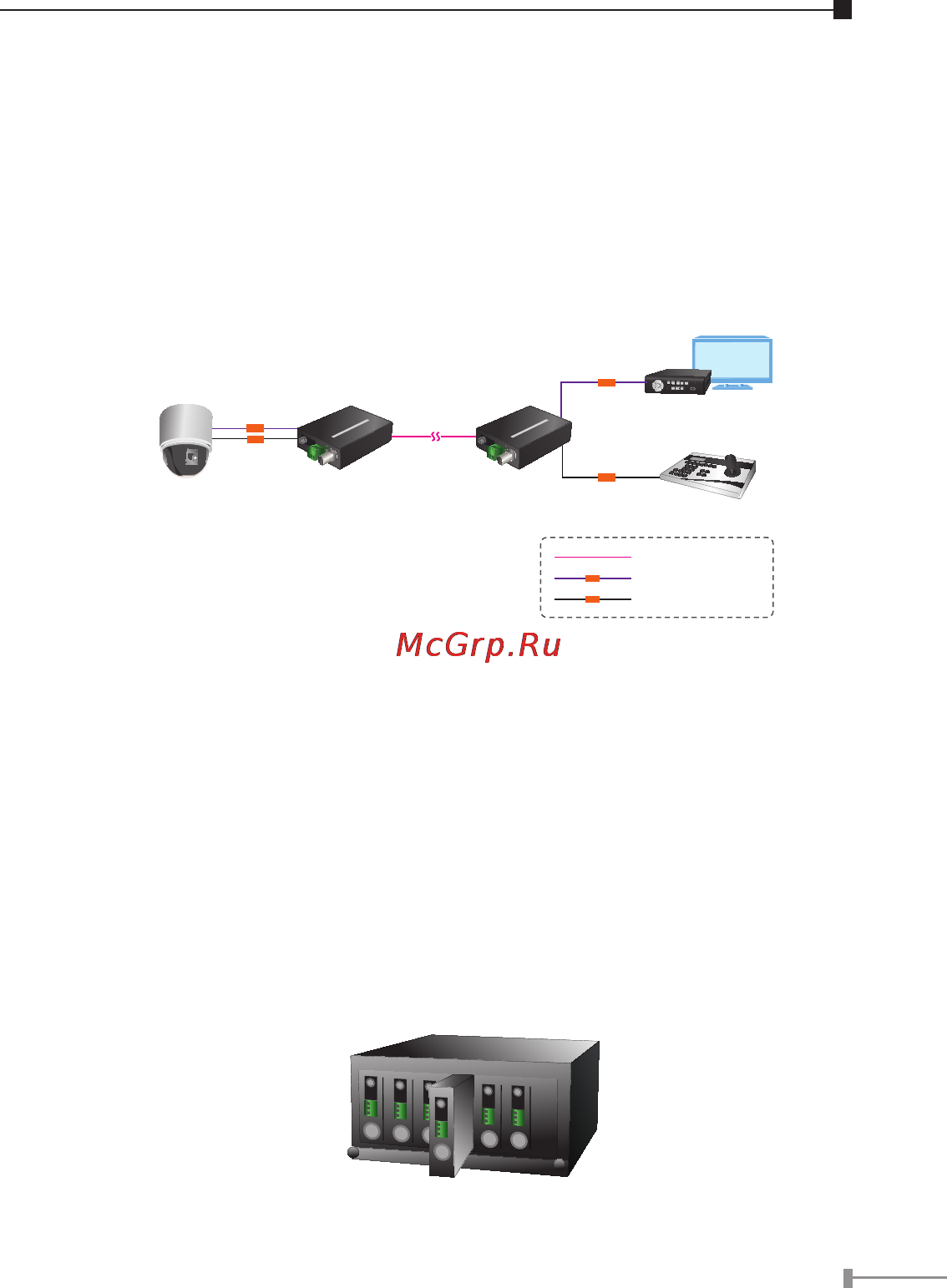

Figure 3-1 VF-102-T / VF-102-R stand alone installation

3.3 Chassis Installation and Rack Mounting

To install the Video over ber Converter in a 10-inch or

19-inch Converter Chassis with standard rack, follow the

instructions described below.

Step 1: Place your Converter Chassis on a hard at surface,

with the front panel positioned towards your front side.

Step 2: Carefully slide in the VF module until it is fully and

rmly tted into the slot of the converter chassis.

Figure 3-2 Insert a video over ber converter into an available slot
