Planet VF-102-KIT [14/16] Optional din rail mounting

Step 3: Attach a rack-mount bracket to each side of the

Converter Chassis with supplied screws attached to the

package.

Step 4: After the brackets are attached to the Converter

Chassis, use suitable screws to securely attach the

brackets to the rack.

Step 5: Proceed with the steps 4 and steps 5 of session 3.2

Stand-alone Installation to connect the video and

ber cabling and supply power to your Converter

Chassis.

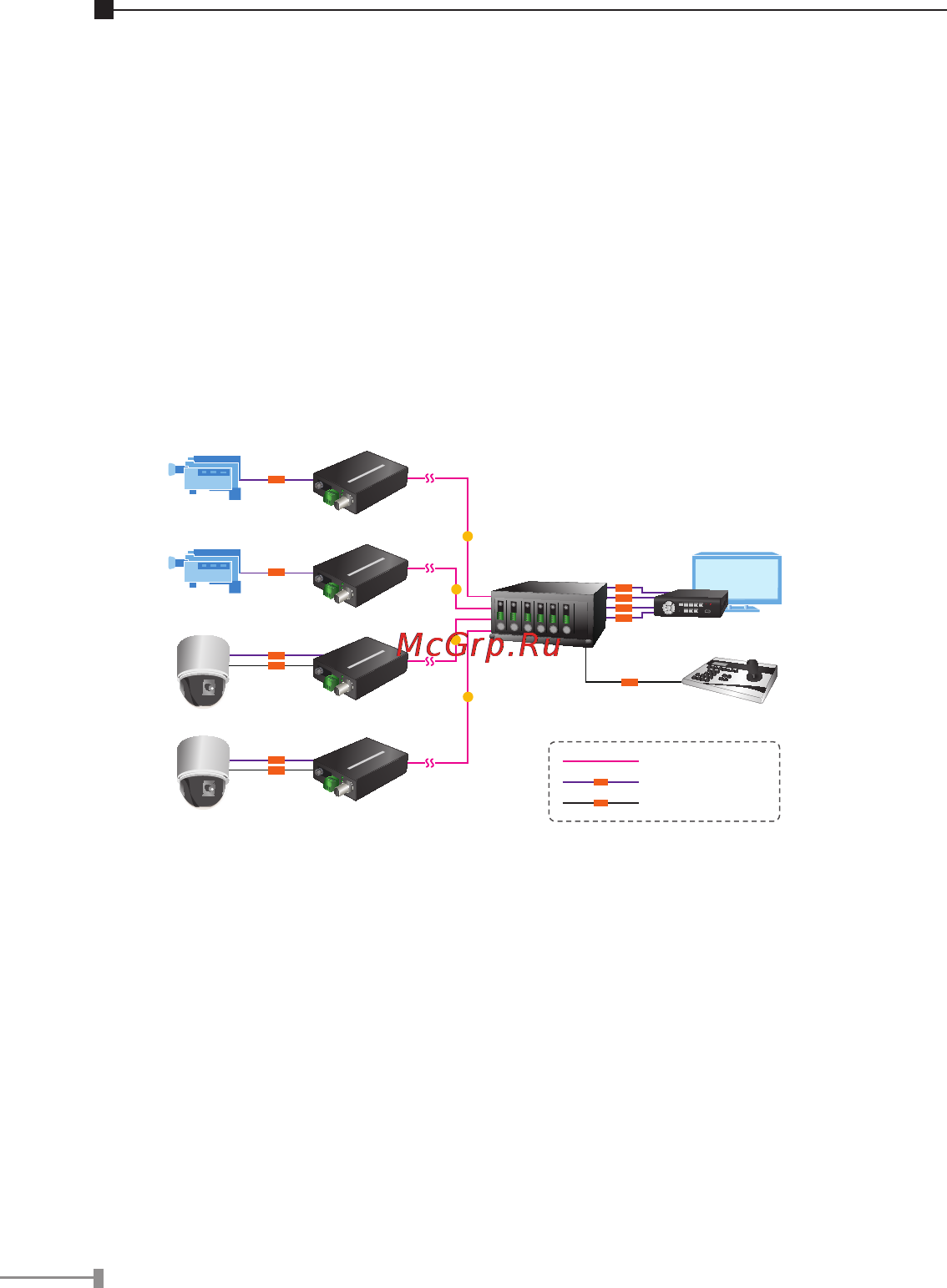

Control Keyboard

|O|O|

VF-102-T

VF-102-R

DVR / Monitor

Media Converter Chassis

Camera

Speed Dome

100

A/V

|O|O|

A/V

Coax

Fiber-optic

Audio Line / Video Line

A/V

Serial Line (RS-485)

|O|O|

3.4 Optional - DIN-Rail mounting

There are two DIN-Rail holes on the left side of the VF-102-T/

VF-102R that allows the converter can be easily installed with

DIN-Rail mounting. The PLANET optional DIN-Rail mounting Kit

– RKE-DIN can be order separately. When need to replace the

wall mount application with DIN-Rail application on the VF-102-T

/ VF-102-R, please refer to following gures to screw the DIN-

Rail on the converter. To hang the VF-102-T / VF-102-R, follow

the below steps:
