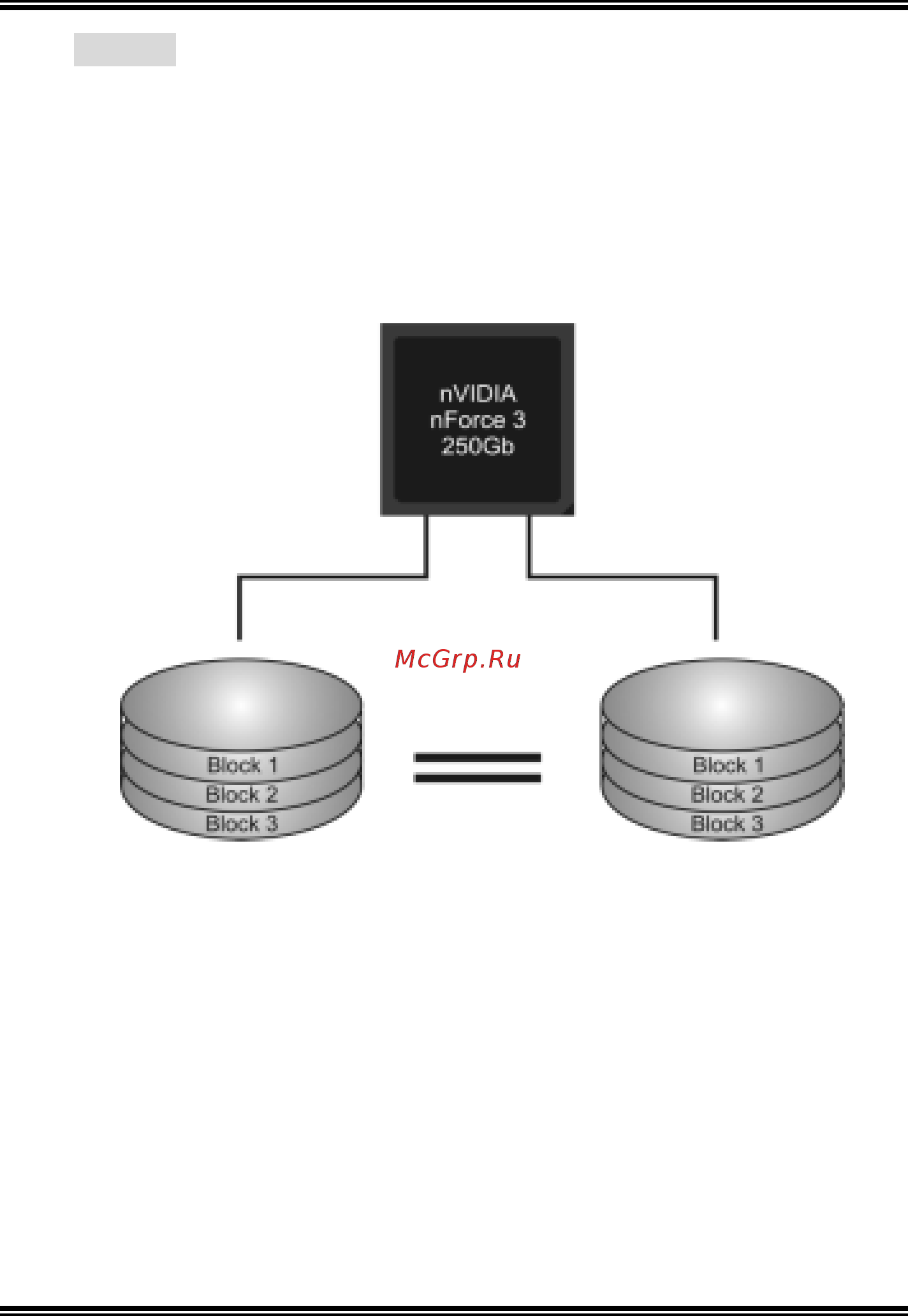

RAID 1:
Every read and write is actually carried out in parallel across 2 disk
drives in a RAID 1 array system. The mirrored (backup) copy of the data
can reside on the same disk or on a second redundant drive in the array.
RAID 1 provides a hot-standby copy of data if the active volume or drive
is corrupted or becomes unavailable because of a hardware failure.
RAID techniques can be applied for high-availability solutions, or as a
form of automatic backup that eliminates tedious manual backups to
more expensive and less reliable media.
Features and Benefits
¾ Drives: Minimum 2, and maximum is 2.
¾ Uses: RAID 1 is ideal for small databases or any other
application that requires fault tolerance and minimal capacity.
¾ Benefits: Provides 100% data redundancy. Should one drive
fail, the controller switches to the other drive.
¾ Drawbacks: Requires 2 drives for the storage space of one
drive. Performance is impaired during drive rebuilds.
¾ Fault Tolerance: Yes.
