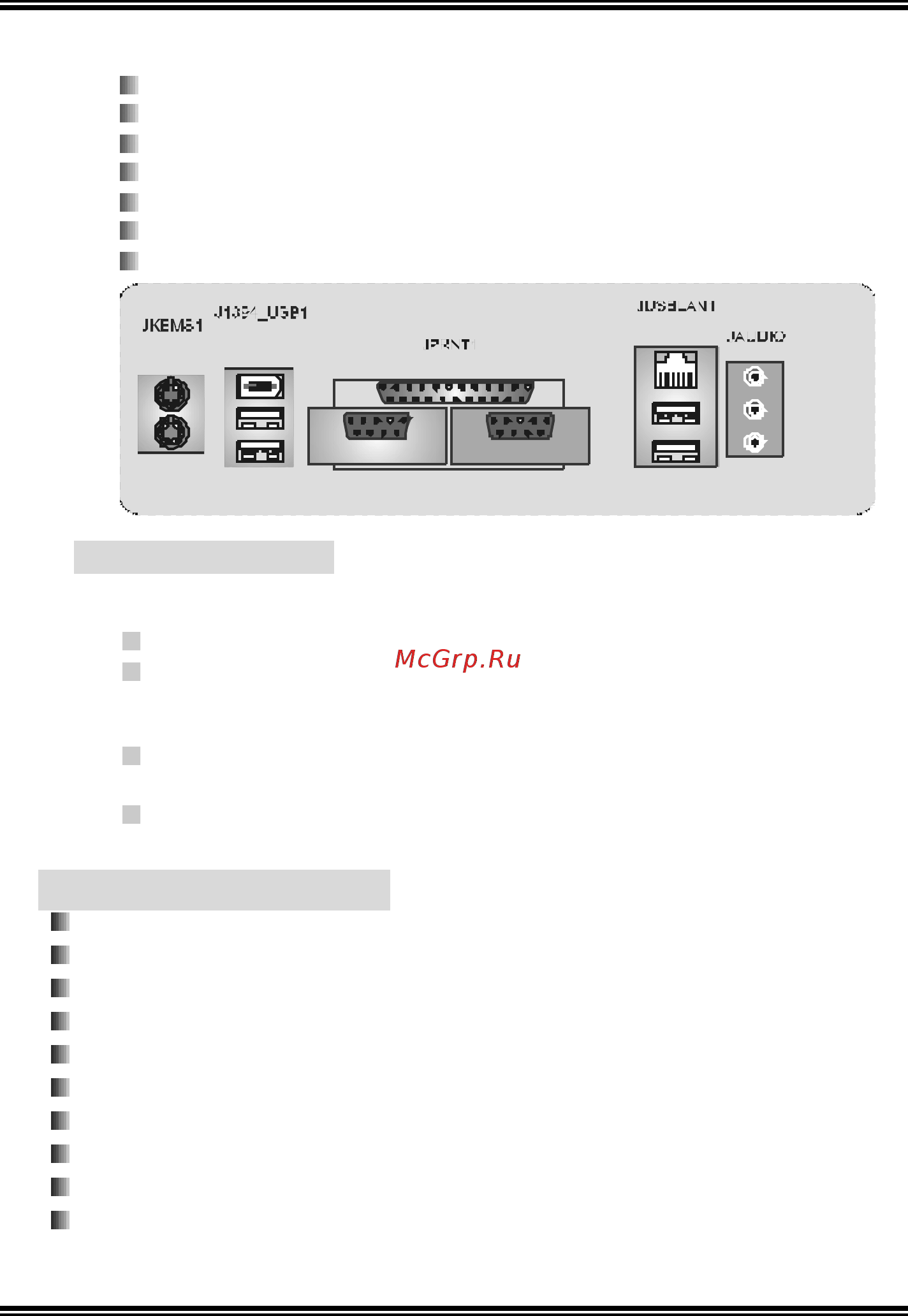

Rear (Back) Side Connectors
1 parallel port.
1RJ-45 LAN jack.
1 IEEE1394 port (optional).
1 audio port.
1 PS/2 keyboard & mouse port.
2 serial ports (JCOM3 is optional).
4 USB 2.0 ports.
PS /2
Keyboard
PS/2
Mouse
COM1
Parallel
COM3
(optional)
LAN
1394
(optional)
USB x2
Line In/
Surround
Line Out
Mic In 1/
Base/Cente r
USB x2
B. BIOS & Software
BIOS
Award legal BIOS.
Supports APM1.2, ACPI, and USB functions.
Software
Supports Warpspeeder™, 9th Touch™, WINFLASHER™ and
FLASHER™.
Offers the highest performance for Windows 98 SE, Windows
2000, Windows Me, Windows XP, SCO UNIX etc.
1.2 PACKAGE CHECKLIST
FDD Cable X 1
HDD Cable X 1
User’s Manual X 1
Fully Setup Driver CD X 1
Rear I/O Panel for ATX Case X 1
USB 2.0 Cable X1 (optional)
S/PDIF Cable X 1 (optional)
Serial ATA Cable X 1 (optional)
IEEE 1394 Cable X 1 (optional)
Serial ATA Power Switch Cable X 1 (optional)
