8 PC Health Status

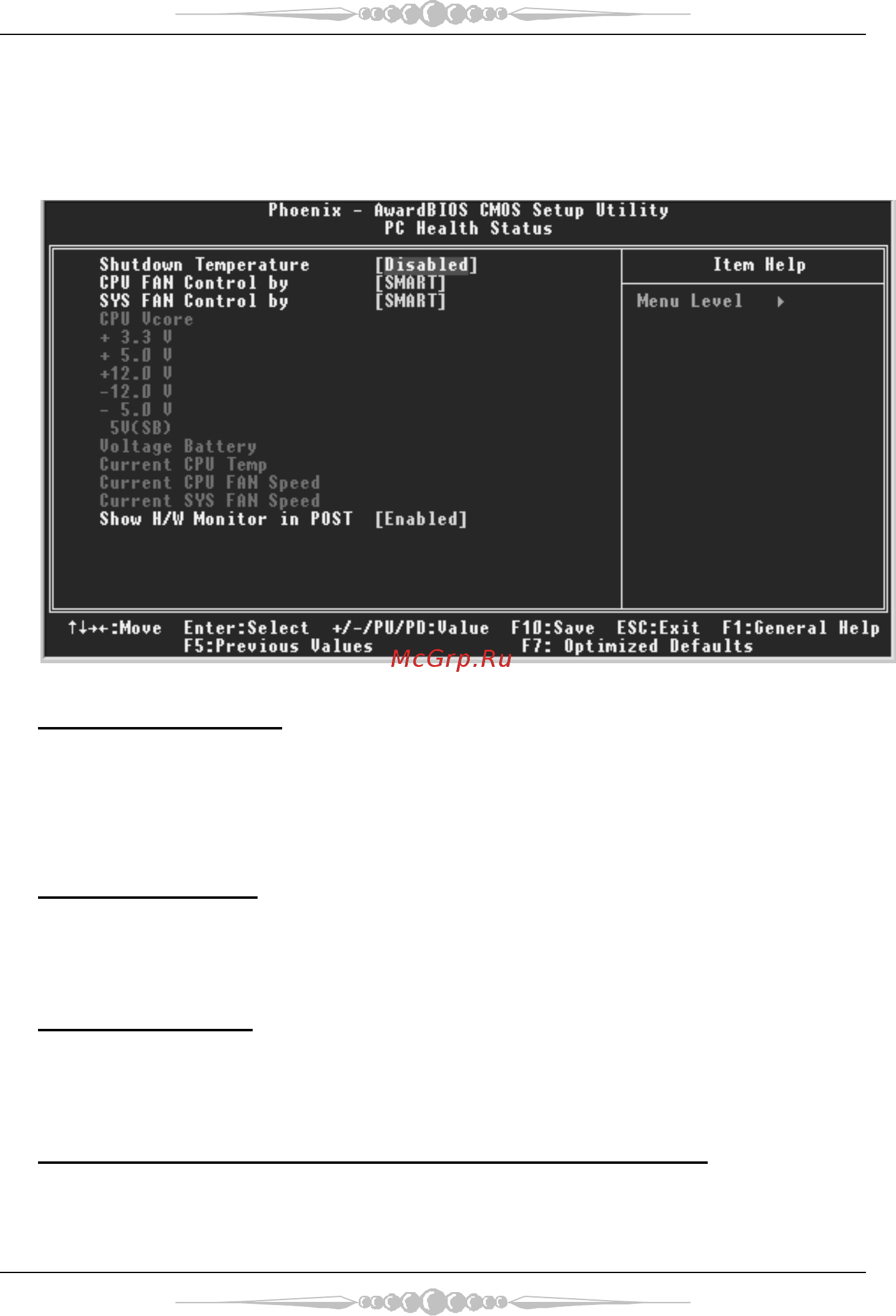

 Figure 8. PC Health Status

Shutdown Temperature

This item allows you to set up the CPU shutdown Temperature. This item only effective under

Windows 98 ACPI mode.

The Choices: Disabled (default) , 60℃/ 140℉, 65℃/ 149℉, 70℃/ 158℉.

CPU FAN Control by

The Choice “smart” can make your CPU FAN to reduce noise.

The Choices: SMART (default), Always On.

SYS F AN Control by

The Choice “smart” can make your System FAN to reduce noise.

The Choices: SMART (default), Always On.

CPU Vcore/ 3.3V/ +5.0V/ +12V/-12V/-5V/5V (SB)/Voltage Battery

Detect the system’s voltage and battery status automatically.
