Biostar K8NHA Grand [23/63] K k 8 8 n n h h a a g g r r a a n n d d

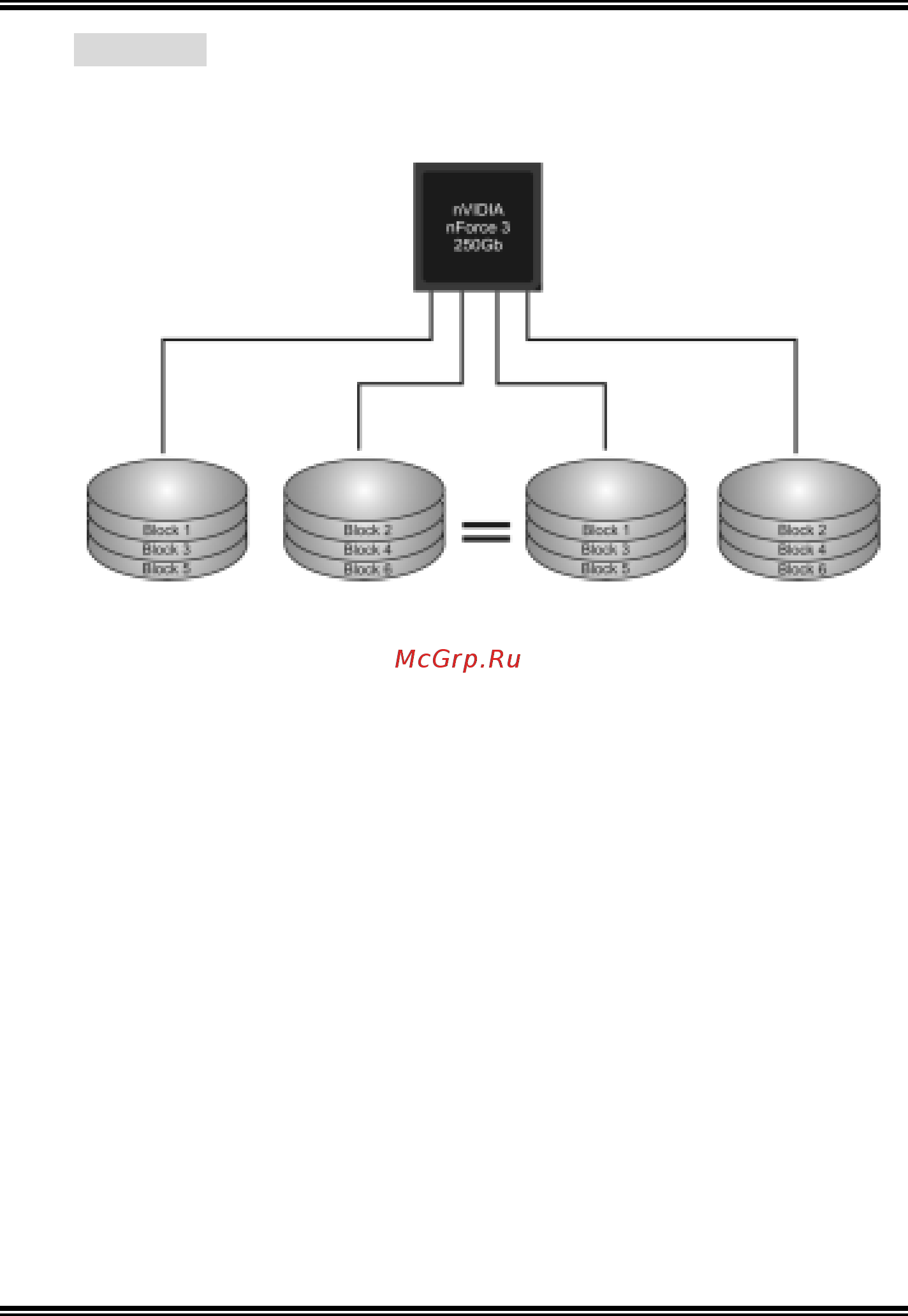

RAID 0+1:

RAID 0 drives can be mirrored suing RAID 1 techniques. Resulting in a

RAID 0+1 solution for improved performance plus resiliency.

Features and Benefits

¾ Drives: Minimum 4, and maximum is 6 or 8, depending on the

platform.

¾ Benefits: Optimizes for both fault tolerance and performance,

allowing for automatic redundancy. May be simultaneously

used with other RAID levels in an array, and allows for spare

di sks.

¾ Drawbacks: Requires twice the available disk space for data

redundancy, the same as RAID level 1.

¾ Fault Tolerance: Yes.
