6.3 INSTALLATION

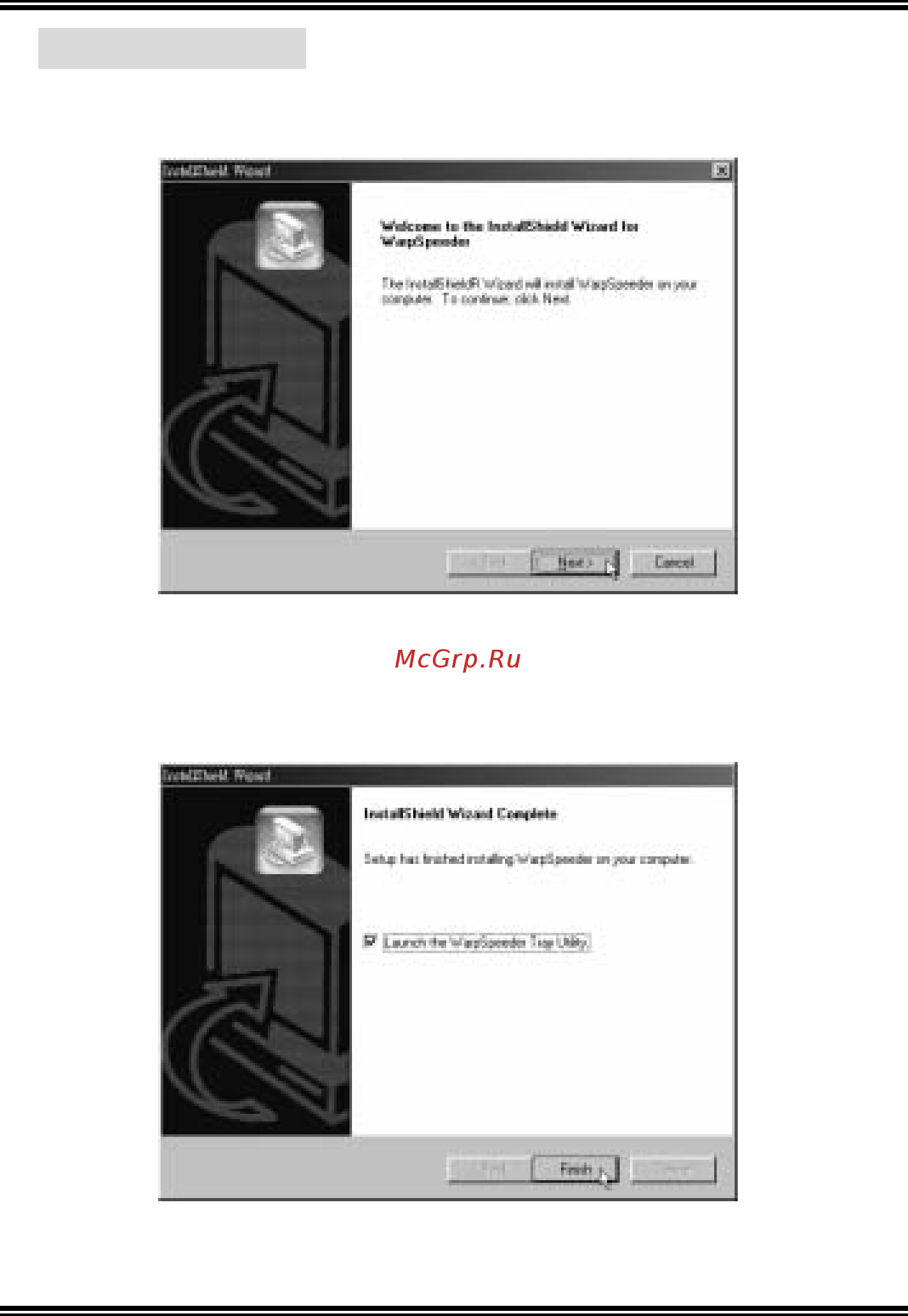

1. Execute the setup execution file, and then the following dialog will

pop up. Please click “Next” button and follow the default procedure to

install.

2. When you see the following dialog in setup procedure, it means

setup is completed. If the “Launch the WarpSpeeder Tray Utility”

checkbox is checked, the Tray Icon utility and [WarpSpeeder™] utility

will be automatically and immediately launched after you click

“Finish” button.
