2.3 LAN setup

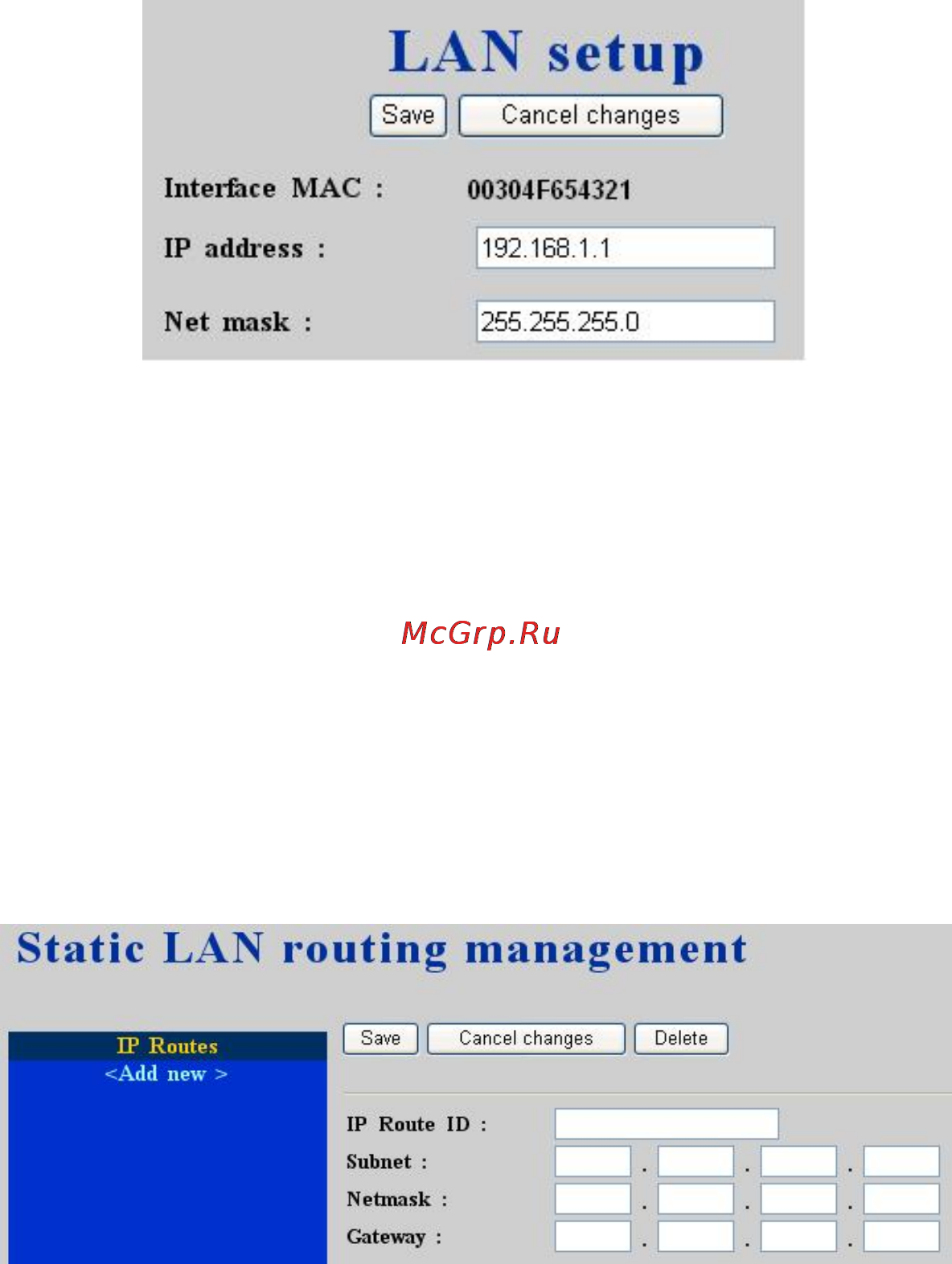

The LAN Setup page allows administrator to configure LAN network interface for IP PBX.

Select System -> LAN setup, current settings of LAN network interface are displayed. You can

modify them by entering new IP address and network mask followed by clicking Save button.

Note that by default IP PBX grants IP addresses to LAN devices via DHCP and translates those

addresses into its WAN IP address for access beyond the LAN subnet. As a result, modifying the

system LAN IP subnet must also change DHCP pool and LAN Routing (if any) accordingly.

Besides, IP PBX service must be restarted.

2.4 LAN Routing

To enable static routing among LAN subnets, enter network info and the IP address of the

corresponding gateway in IP PBX’s LAN. It is important to assure that the given gateway IP

address sits in the IP PBX’s LAN. Each subnet requires an entry even multiple subnets share the

same gateway, unless masking does the same. Examples are adding IP Route IDs net1 and net2

with parameters 192.168.128.0/255.255.255.0, 192.168.129.0/255.255.255.0, shared gateway

192.168.1.254 respectively. Or, IP Route ID net1n2 with 192.168.128.0/255.255.254.0 and

gateway 192.168.1.254 would do the same. Added routes enable routing immediately after

clicking Save button, however, IP PBX service needs to be restarted to regard calls from

designated LAN subnets as LAN traffic.
