PLANET IPX-1800 user’s manual

3.13 PSTN Trunk Configuration

A PSTN trunk group is a logical group of one or more PSTN subscriber lines connecting to FXO

ports on IP PBX.

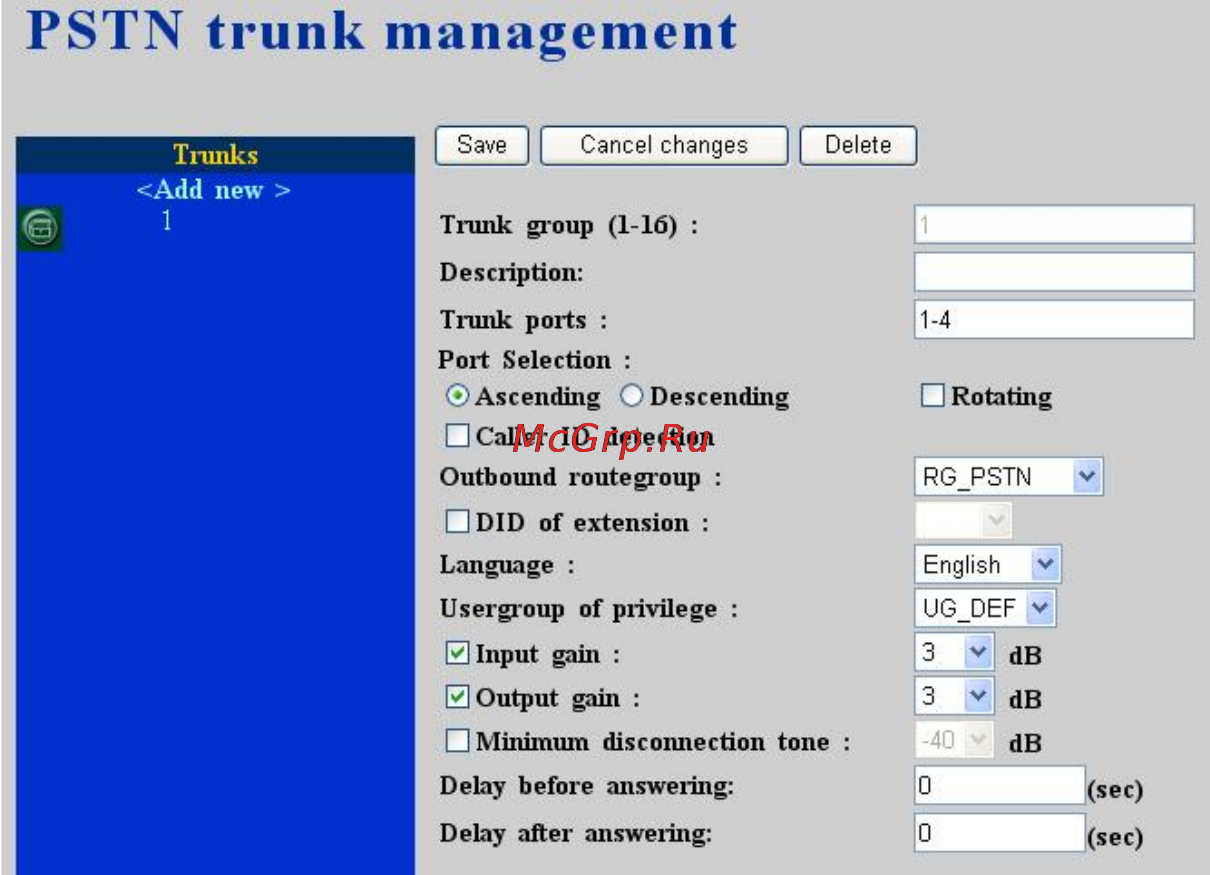

The PSTN Trunk Management page allows the administrator to configure PSTN trunks. By

selecting Trunk -> PSTN Trunk, one can add, edit, and delete PSTN trunks. IP PBX service

must be reloaded to activate changes.

3.13.1 Add PSTN Trunk

• Click <Add new> button from the left panel.

• Enter settings shown in Table 4-7.

• Click Save button.

The newly added PSTN trunk shall be displayed in Trunks panel on the left side.

3.13.2 Edit PSTN Trunk

• Click the link of trunk to edit from the Trunks panel.

• Edit settings shown on the right side.

• Click Save button.

3.13.3 Delete PSTN Trunk

• Click the link of trunk to delete from the Trunks panel.

• Click Delete button.

The deleted PSTN trunk shall disappear from the Trunks panel.

34 of 49
