PLANET IPX-1800 user’s manual
2.8.3 System event log
Event log includes reported events from following system services: NTP, DNS, DHCP, and
PPPoE.
2.8.4 System storage usage
This displays the size and utilization percentage of the internal main system storage.
2.8.5 System storage backup
To back up internal main storage, click the Backup button and follow instructions to insert the
USB connector of an external USB drive. Options include whether to keep or remove CDR
and/or voicemails after backup. After a confirmation of the insertion, back starts a few seconds
later if the external USB drive is accessible and found enough available space. On a successful
backup, the name of the new folder created on the external drive will be displayed. Either the
backup is successful or failed, a user must remove the USB connector of the external drive.

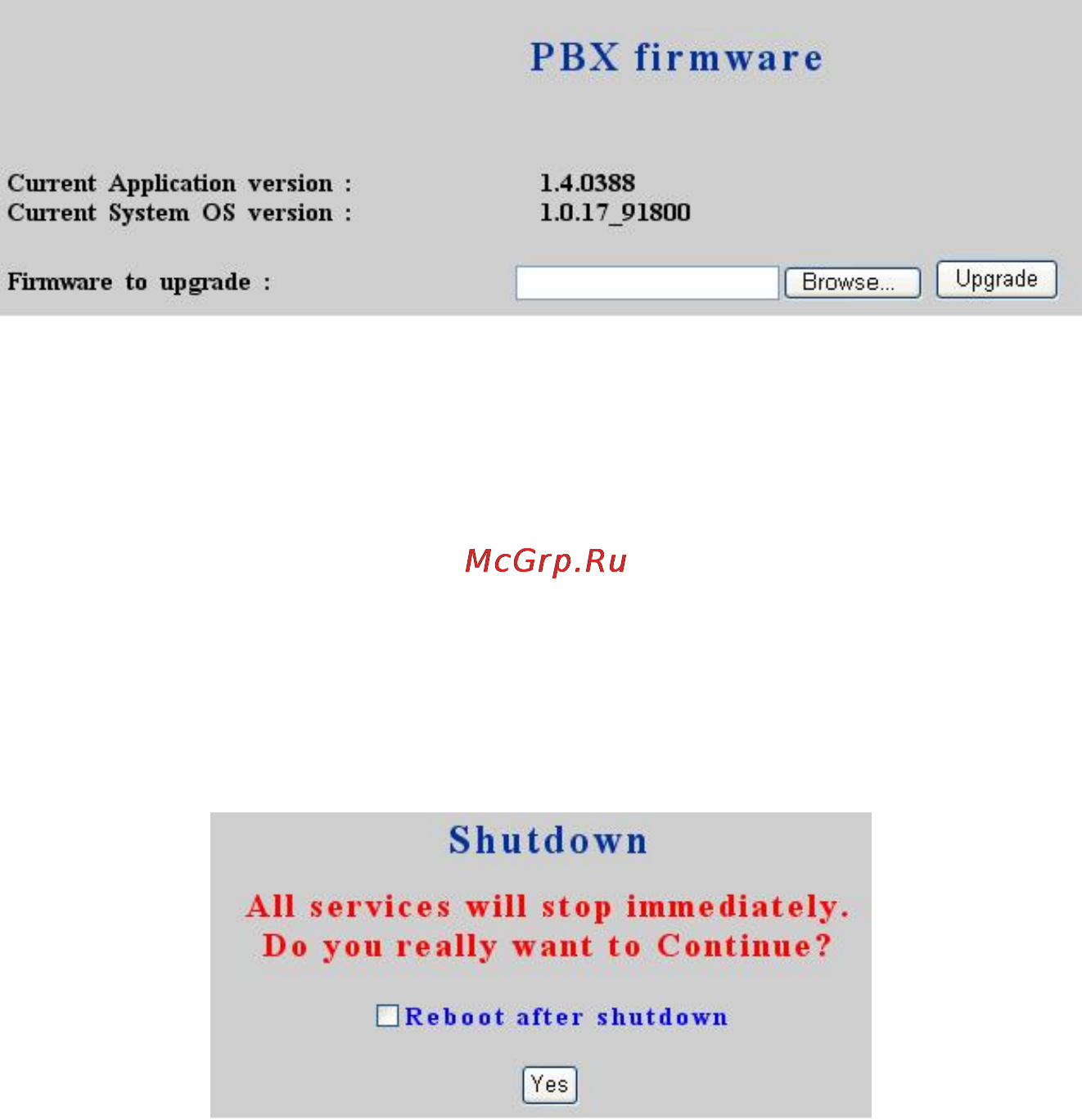

2.9 Firmware upgrade
The version of the running PBX firmware could be found in System -> PBX firmware. To
upgrade current firmware, locate a release file obtained from the vendor, and click Upgrade.
Note that the filename of firmware should not be changed, otherwise system will refuse to
upgrade with it.
2.10 Logout
Log out administrator and close browser windows.
2.11 Shutdown
By selecting System -> Shutdown, you can shutdown or reboot the machine after clicking the
Yes button in this page. In case such software reboot fails, press and release the hardware reset
button quickly will do the same.
13 of 49
