PLANET IPX-1800 user’s manual
2.2 WAN setup
The WAN Setup page allows administrator to configure WAN network interface for IP PBX.

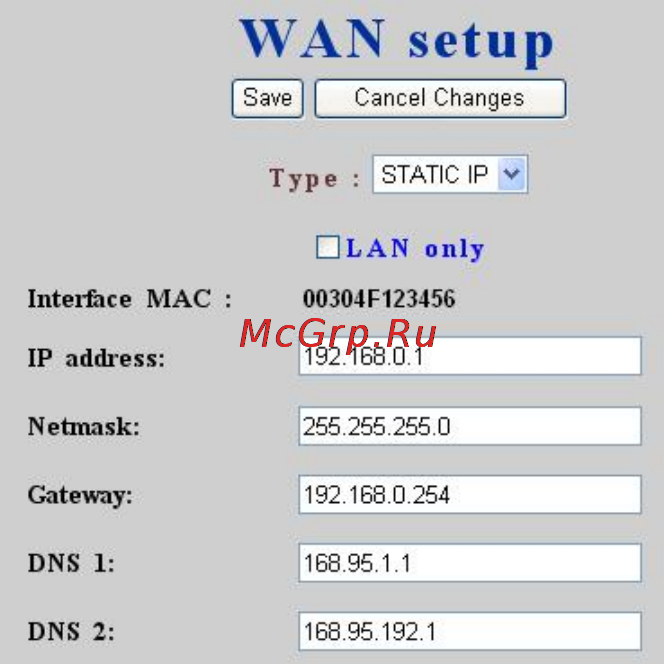

Select System -> WAN setup, current setting of WAN network interface is displayed, e.g. type,
IP address etc. Unless LAN only checkbox is checked, you can choose one of the three options
for your configuration, Static, DHCP, and PPPoE.
2.2.1 Static
You can choose Static IP in Type drop-down list, and manually configure the following
information:
IP address
Network mask
Default gateway IP address
Primary and secondary DNS servers
And, click Save button to submit.
2.2.2 DHCP
Simply choose DHCP in Type drop-down list, and then click Save button. The acquired IP
address, network mask, and default gateway information will be displayed when revisit this page
later.
2.2.3 PPPoE
Choose PPPoE in Type drop-down list, enter username and password, and then click Save
button. The PPPoE dialing will start right away. When there is an active connection, the page
will show the acquired IP address, network mask, and default gateway information. There will
also be a Disconnect button to disconnect connection when desired.
2.2.4 Lan only
Check Lan only to disable WAN IP setting but allow the configuration of default gateway and
primary/secondary DNS servers.
