SiEN34-705 Appendix
General Information 139

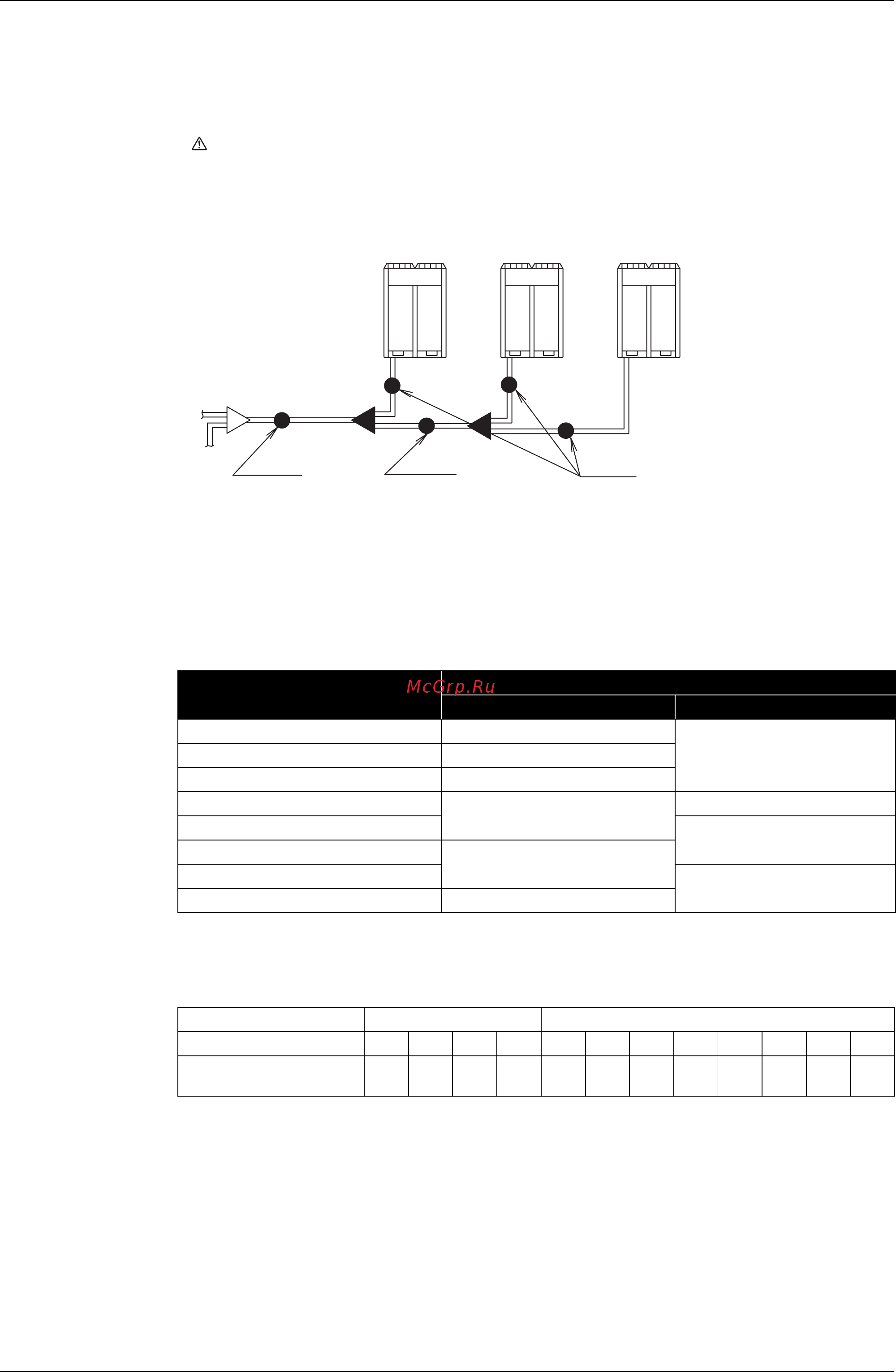

7.5 Pipe Size Selection
7.5.1 Heat Pump 50Hz/60Hz, Cooling Only 50Hz (RX(Y)Q5~54P, 50PH)
Pipe size selection
Piping between Outdoor unit and first refrigerant branch kit.
Piping between first Outdoor unit multi connection piping kit and first refrigerant branch kit. (Part A)
! Choose from the following table in accordance with the outdoor unit capacity type.
Piping between Outdoor unit multi connection piping kits. (Part B)
Piping between outdoor unit and Outdoor unit multi connection piping kit. (Part C)
! Choose from the following table in accordance with the total capacity type of all the outdoor
units connected above Outdoor unit multi connection piping kit.
(Unit:mm)
(See 7.7 Note 1)
Temper grade and wall thickness for pipes.
(Temper grade, O type and 1/2H type indicate the material types specified in JIS H 3300.)
(Unit:mm)
Outdoor unit capacity type
Piping size (O.D.)
Gas pipe Liquid pipe
5HP type φ15.9
φ9.58HP type φ19.1
10HP type φ22.2
12~16HP type
φ28.6
φ12.7
18~22HP type
φ15.9
24HP type
φ34.9
26~34HP type
φ19.1
36~54HP type φ41.3
Temper grade O Type 1/2H Type
Copper tube O.D φ
6.4
φ
9.5
φ
12.7
φ
15.9
φ
19.1
φ
22.2
φ
25.4
φ
28.6
φ
31.8
φ
34.9
φ
38.1
φ
41.3
Copper tube W.T
(Minimum requirement)
0.80 0.80 0.80 0.99 0.80 0.80 0.88 0.99 1.10 1.21 1.32 1.43
For the multi outdoor unit system, select in accordance with the following figure.
Caution
The thickness of the pipes in the table shows the requirements of Japanese
High Pressure Gas Control low. (As of Jan. 2003)
The thickness and material shall be selected in accordance with local code.
Part C
Part B
Part A
