SiEN34-705 Test Operation
General Information 87

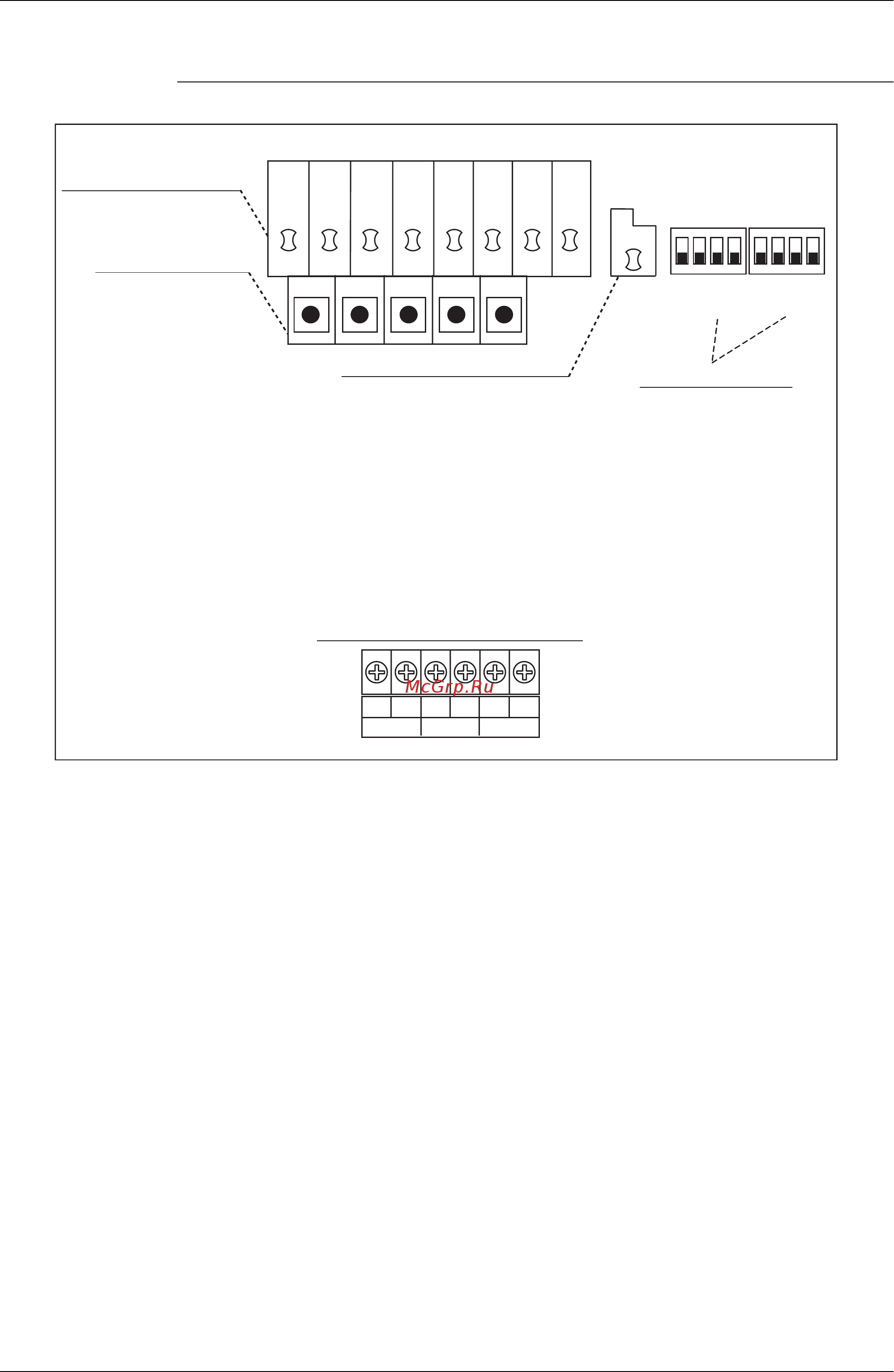

4.3 Outdoor Unit PC Board Layout
Outdoor unit PC board
BS1
MODE SET RETURN TEST RESET
BS2 BS3 BS4 BS5
H1P H2P H3P H4P H5P H6P H7P H8P
1 2 3 4 1 2 3 4
F1 F2 F1 F2 Q1 Q2
DS1 DS2
HAP
(V3054)
(1) Microcomputer normal monitor.
This monitor blinks while in normal operation, and turns on or off when a malfunction occurs.
(2) Set mode display (LED).
LEDs display mode according to the setting.
(3) Mode setting switchUsed to change mode.
(4) Local setting switch.
Used to make field settings.
Indoor −
Outdoor
Outdoor −
Outdoor
Multi outdoor
(2) Set mode display (LED)
(3) Mode setting switch
(1) Microcomputer normal monitor
(4) Local setting switch
Connection terminal for transmission use
