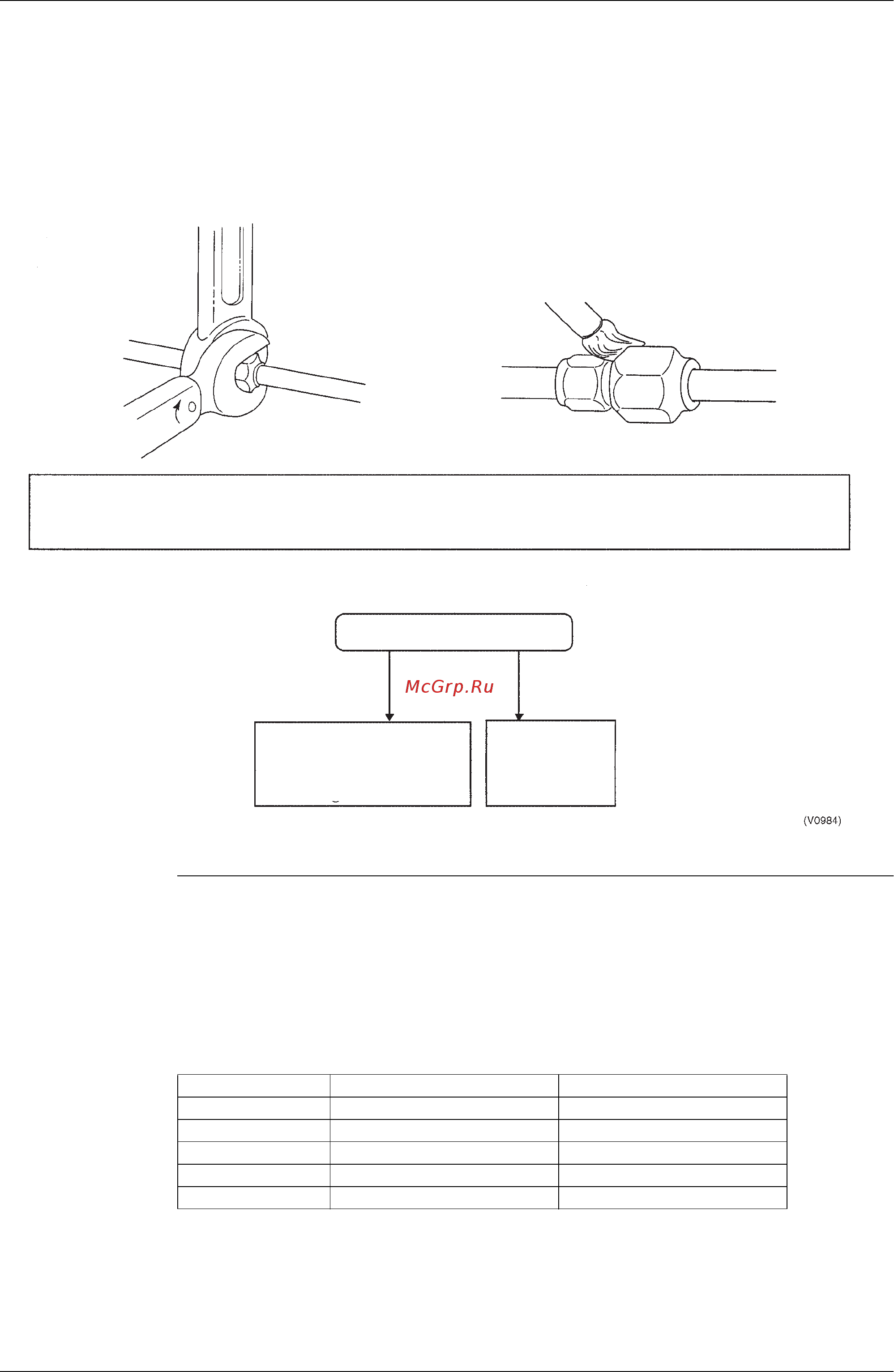

Daikin RXQ18PY1 [39/355] Tighten the flare but with proper torque
![Daikin RXQ48PY1 [39/355] Tighten the flare but with proper torque](/views2/1715571/page39/bg27.png)
SiEN34-705 Installation
General Information 33
Not
recommendable
but in case of
emergency
You must use a torque wrench but if you are obliged to install the unit without a torque wrench,
you may follow the installation method mentioned below.
After the work is finished, make sure to check that is no gas leak.
When you keep on tightening the flare nut with a spanner, there is a point where the tightening
torque suddenly increases. From that position, further tighten the flare nut the angle shown
below:
➈ Tighten the flare nut.
(Use a torque wrench to apply the proper
tightening force.)
➉ Check for gas leaks.
(Check at the threaded section of the flare nut for
gas leaks.)
Spray-type gas leak detecting products are
available on the market. Soap water may be used
to check for leaks, but use only neutral soap to
prevent corrosion on the flare nut.
Be sure to wipe the nut area clean after the gas
leak check.
Tighten the flare but with proper torque.
It takes a lot of experience to tighten the flare nut properly without the use of a torque wrench.
Inadequate tightening torque
Too tight
Too loose
● Reduce flare nut wall
thickness
➞ leaks
● Damages flare nut
● Causes gas
leaks
Pipe size Further tightening angle Recommended arm length of tool
6.4 (1/4”) 60 to 90 degrees Approx. 150mm
9.5 (3/8”) 60 to 90 degrees Approx. 200mm
12.7 (1/2”) 30 to 60 degrees Approx. 250mm
15.9 (5/8”) 30 to 60 degrees Approx. 300mm
19.1 (3/4”) 20 to 35 degrees Approx. 450mm
