SiEN34-705 Appendix
General Information 163

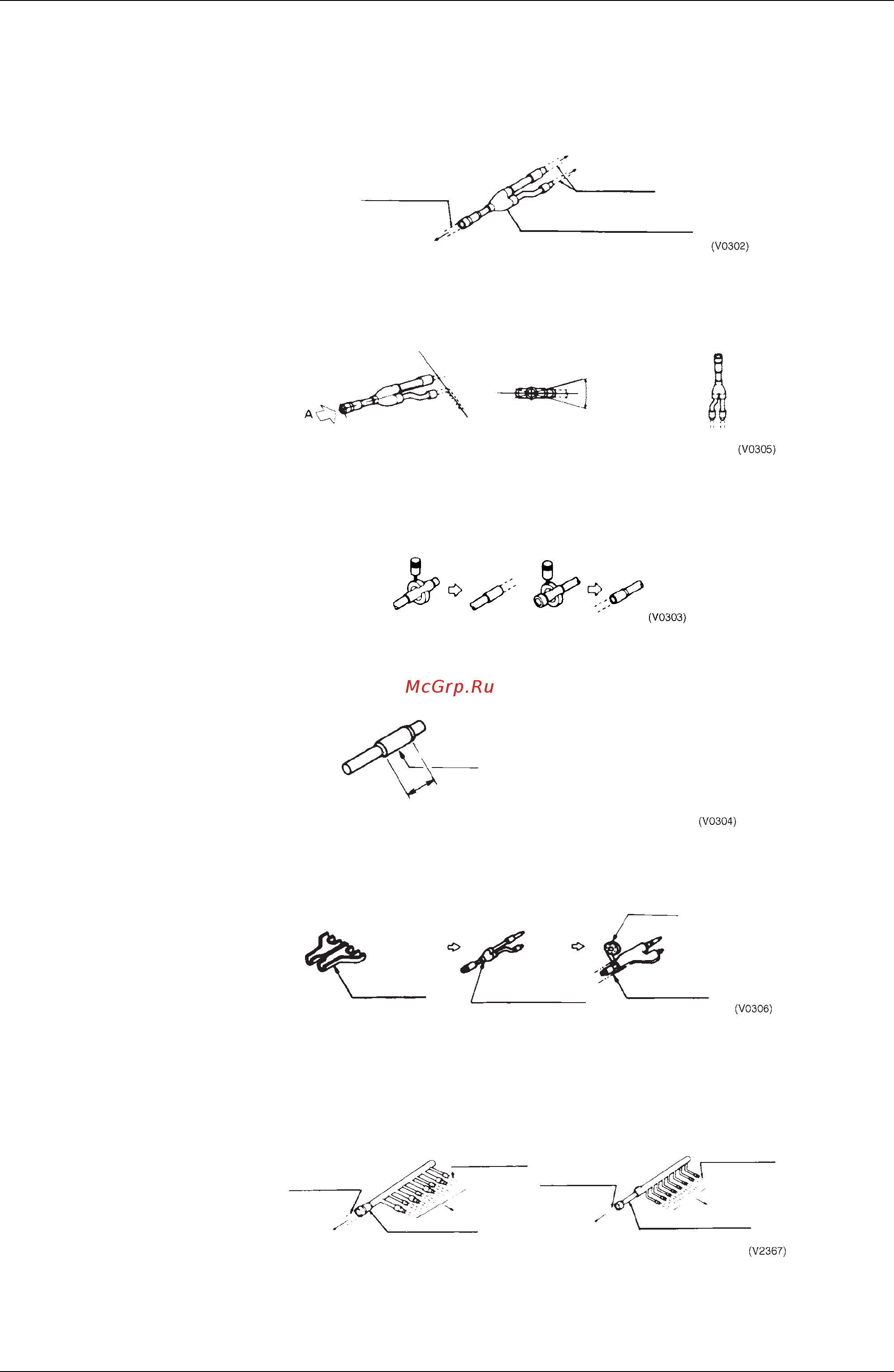

7.10.4 REFNET Joints and Headers
7.10.4.1 REFNET Joints
For gas and liquid branch pipes
! Make sure that all branch pipes are fitted such that they branch either horizontally or
vertically.
! When the size of the selected field piping is different from that of branch pipe then the
connecting section should be cut with a pipe cutter as shown in the figure below.
! When you are cutting an inlet or outlet pipe with a pipe cutter make sure that you make the
cut in the center of the connection area.
! Branch pipes must be insulated in accordance with the handbook which comes with each kit.
7.10.4.2 REFNET Header
To next branch
or indoor unit
Field piping
Outlet (2)
Gas and liquid branch pipe
(option)
Outlet (1)
Inlet
Field piping
To outdoor unit
Horizontal
plane
Viewed from point A
in direction of arrow
Within +/-30
degrees or vertical
Cut in center of connection area
Connection
area
Insulator
(included with kit)
Liquid and gas
pipe joints
Insulator or
field piping
Ta p e
(field supply)
Gas branch pipes Liquid branch pipes
Field piping
Gas branch pipes
(option)
Liquid branch pipes
(option)
Field piping
Field piping
Field piping
To outdoor unit
To outdoor unit
To indoor unit
To indoor unit
