Installation SiEN34-705
54 General Information
Caution: • Drain piping connections
Do not connect the drain piping directly to sewage pipes that smell of ammonia. The
ammonia in the sewage might enter the indoor unit through the drain pipes and corrode the
heat exchanger.
• Keep in mind that it will become the cause of getting drain pipe blocked it water collects on
drain pipe.
3PA60996-14Y
TEST
WHEN ELECTRIC WIRING WORK IS FINISHED
Check drainage flow during COOL running, explained under ‘‘TEST OPERATION’’.
WHEN ELECTRIC WIRING WORK IS NOT FINISHED
Remove the terminal box lid connect a power supply and remote control to the terminals
.
(Refer to the Installation Manual)
Next, press the inspection/test operation button “ ” on the remote control. The unit will engage the
test operation mode. Press the operation mode selector button “ ” until selecting FAN OPERATION
“ ”. Then, press the ON/OFF button “ ”. The indoor unit fan and drain pump will start up. Check
that the water has brained from the unit. Press “ ” to go back to the first mode.
Note that the fan also starts rotating.
Attach the terminal box lid as before.
TEST
≥?
100
Fig. 24
R(L) S(N)
T2T1F2F1P2P1
REMOTE
CONTRL
TRANSMISSION
WIRING
FORCED
OFF
Fig. 25
(Tube should be
about 100 mm long.)
Plastic watering can
Service drain outlet (with rubber plug)
(Use this outlet to drain water from
the drain pan)

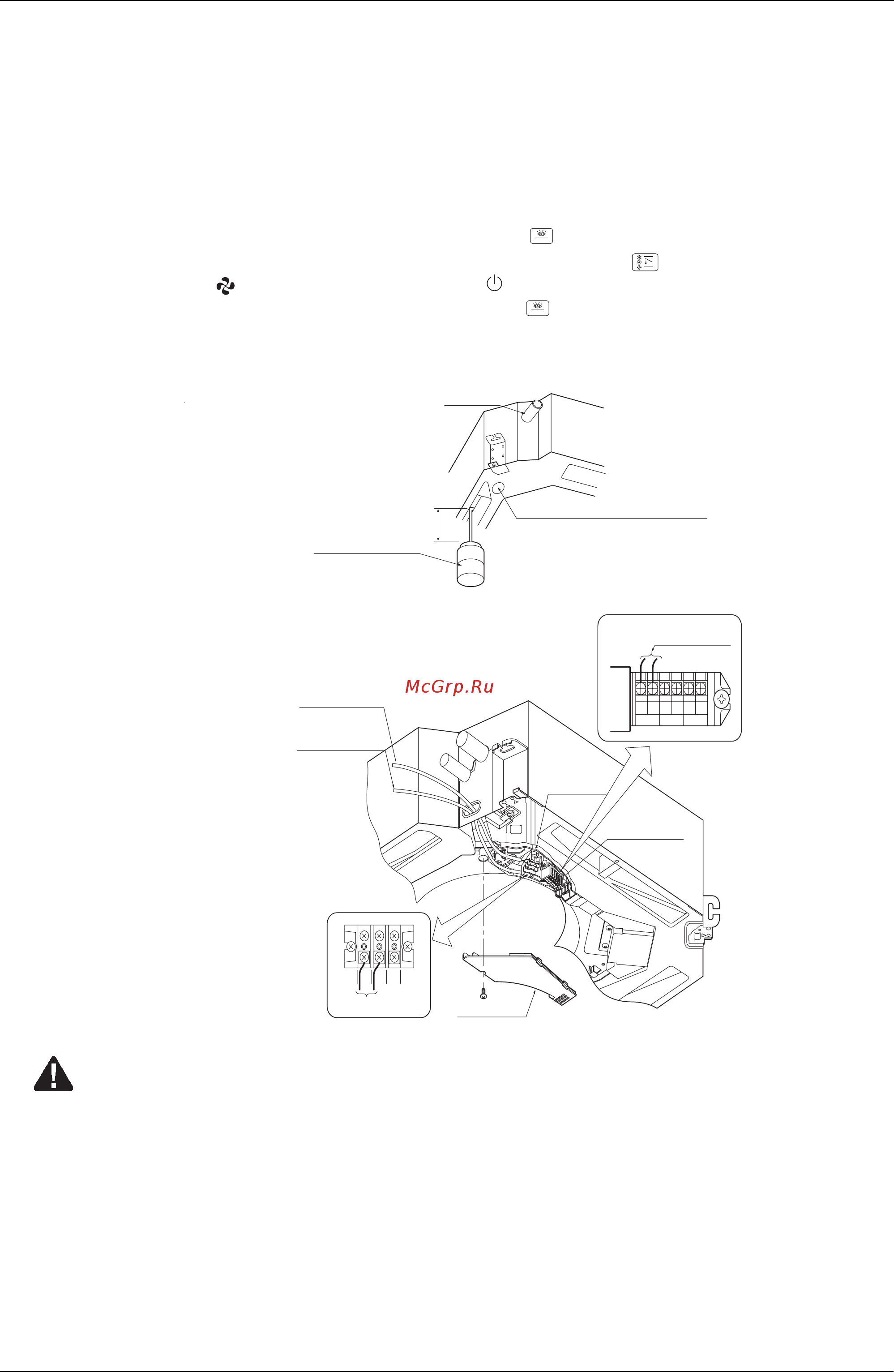

<Adding water through air discharge outlet>
[Method of adding water]
Drain pipe
Remote control
wiring
Remote control
wiring
Power supply wiring
Power supply
terminal board
Terminal board for
remote control
Power supply wiring
Terminal box lid
(2) After piping work is finished, check if drainage flows smoothly.
Add approximately 2 liter of water slowly from the air outlet and check drainage flow.
