Overview

Front Panel

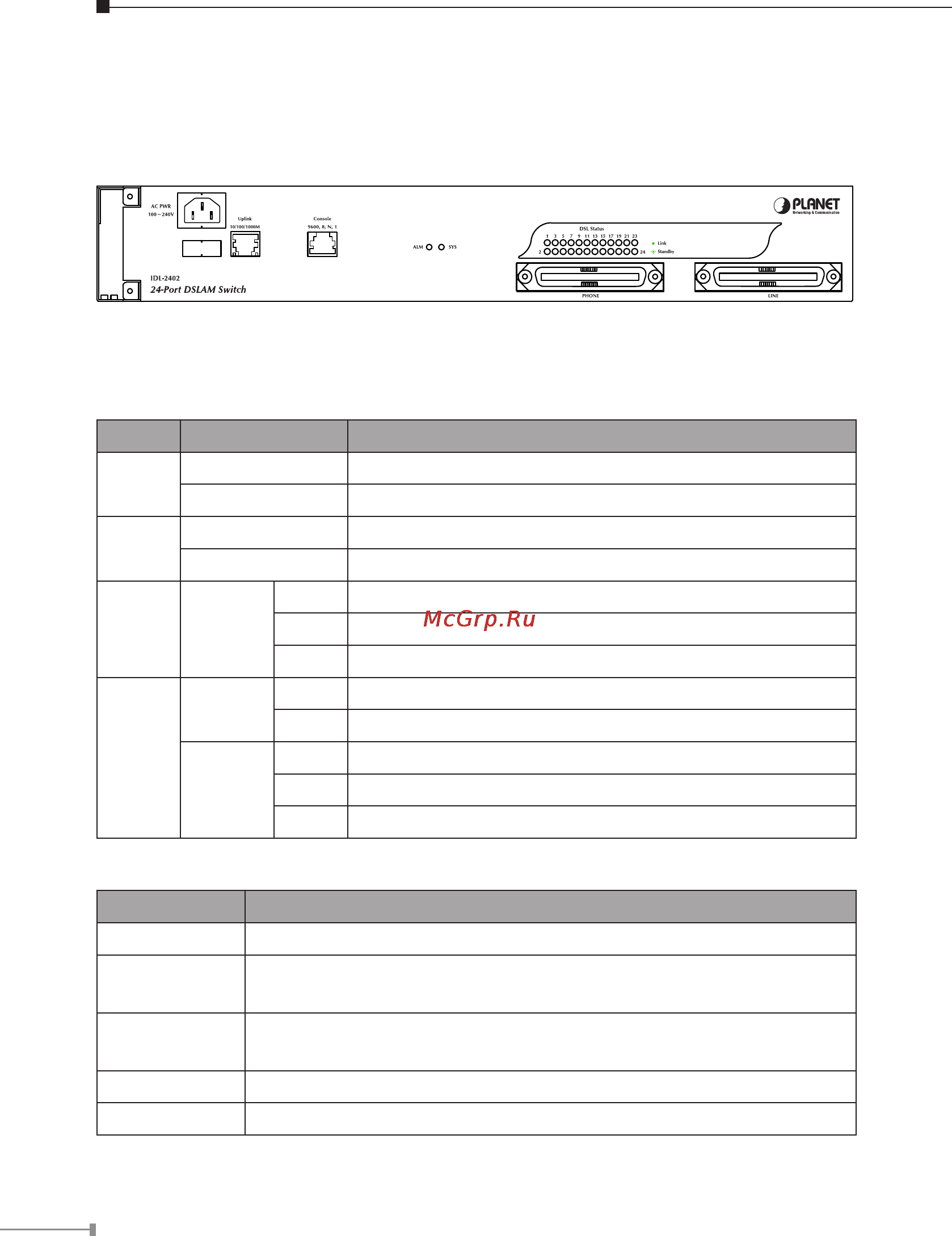

The front panels of IDL series are shown below.

IDL-2402

LED Denition

LED Color LED Description

SYS

Green Normal Operation

Red Self-test fail

ALM

Green Normal Operation

Red To indicate the system alarm status

DSL

status

Green

On ADSL Port is activated and linked

Off ADSL Port is Disabled

Flash ADSL Port is activated but not linked

Uplink

Orange

On Uplink Port connect with 100/1000Mbps Ethernet link

Off Uplink Port connect with 10Mbps Ethernet link

Green

On Active

Off Inactive

Flash Uplink Port Transmit / receive data

Port Denition

Port Port Description

AC PWR AC Power cord plug-in, 100 - 240VAC is allowed.

Uplink Port

Gigabit Ethernet port.

10/100/1000Mbps, auto-negotiaiton, auto-MDI

Console Port

RS-232 port for system conguration and maintenance. Default

settings: 9600, 8, N, 1

PHONE RJ-21 connector for connecting POTS lines.

LINE RJ-21 connector for connecting DSL lines.
