6
Hardware Installation
The PLANET IDL-2402 is a 1.5U high box-type IP DSLAM with rack-mountable
enclosure. It can be installed in a standard 19-inch rack by using the mounting
brackets provided. Mount the shelf on the rack using the large screws provided.
The procedure to connect and wire the system is as follows.
Step 1: Ground the IP DSLAM by connecting a grounded wire (Optional).
Ground Connections
This section provides the grounding rule for the IDL-2402. All remote system sites
must be properly grounded for optimum system performance.
n InCentralOfce:
There should be a CO GND that is adequately grounded. If the measured resistance
from the grounding screw (on the rear panel of the DSLAM, refer to below gure)
to CO GND is less than 5 Ohm, then it can be assumed that the system is well
grounded. If the measured resistance is larger than 5 Ohm, it is recommended
to connect the grounding screw to CO GND using #14 or #12 AWG wire gauge
conductor.
n In Remote Cabinet:
The IDL-2402 should be grounded by connecting a #14 or #12 AWG conductor
between the grounding screw (on the rear panel of the DSLAM, refer to below
gure) and the earth ground or main grounding bar. The resistance between the
chassis and the grounding bar should be less than 25 Ohm.

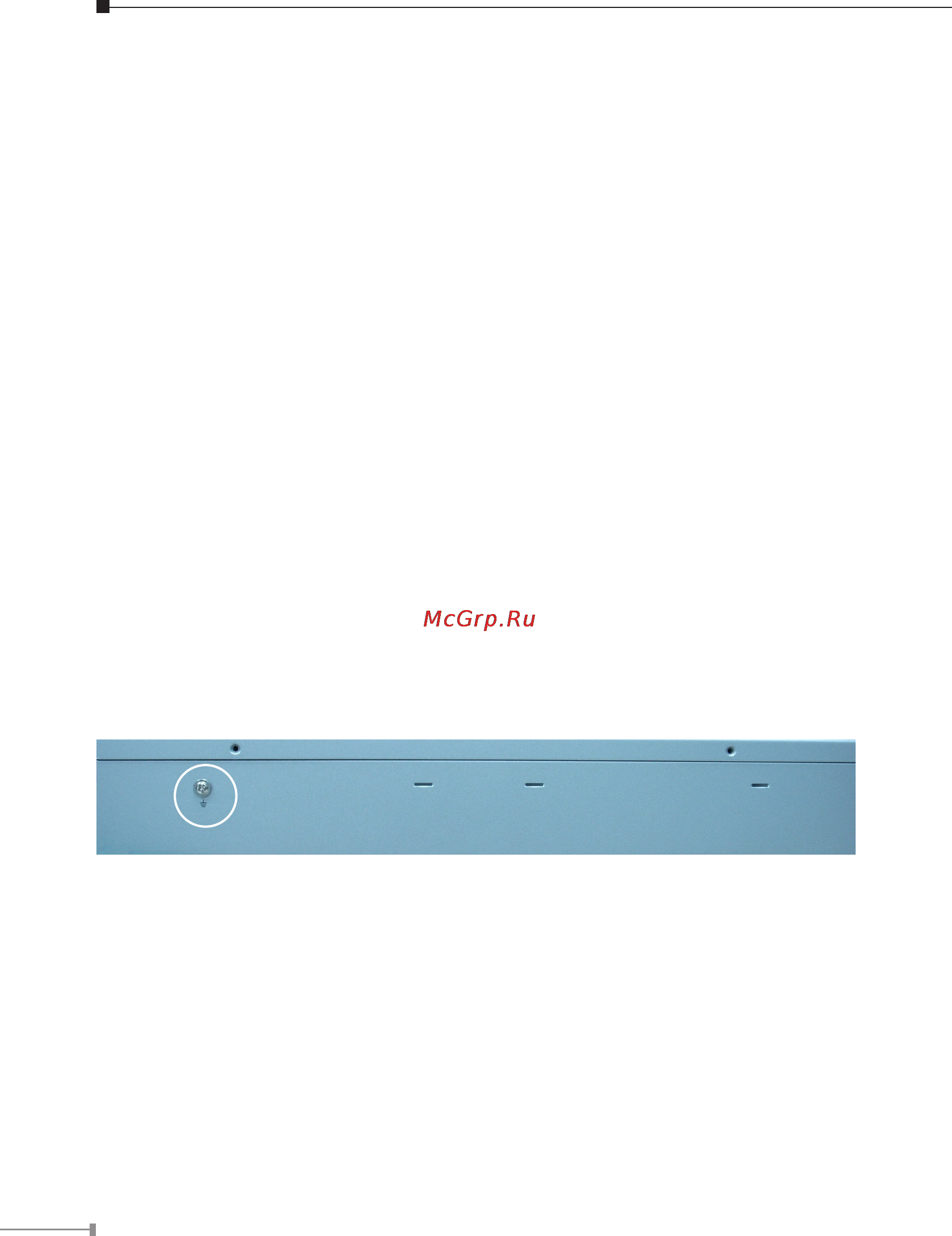

Rear Panel Connection
IDL-2402 grounding screw on the rear panel
