Step 2: Connecting the ADSL LINE and PHONE interfaces

The IDL-2402 supports 24 ports ADSL subscribers per box. There are two RJ-21

50-pin female connectors on the front panel of the system. One for ADSL line and

one for POTS interface.

To connect the subscriber lines, use cables with the RJ-21 50-pin male connectors.

When installing, just plug the end of a cable with connector into the LINE and

PHONE interface female connector on the front panel. The other end of the cable is

generally tied to the MDF (Main Distribution Frame).

Note

The MDF Patch panel is optional of standard package.

Note

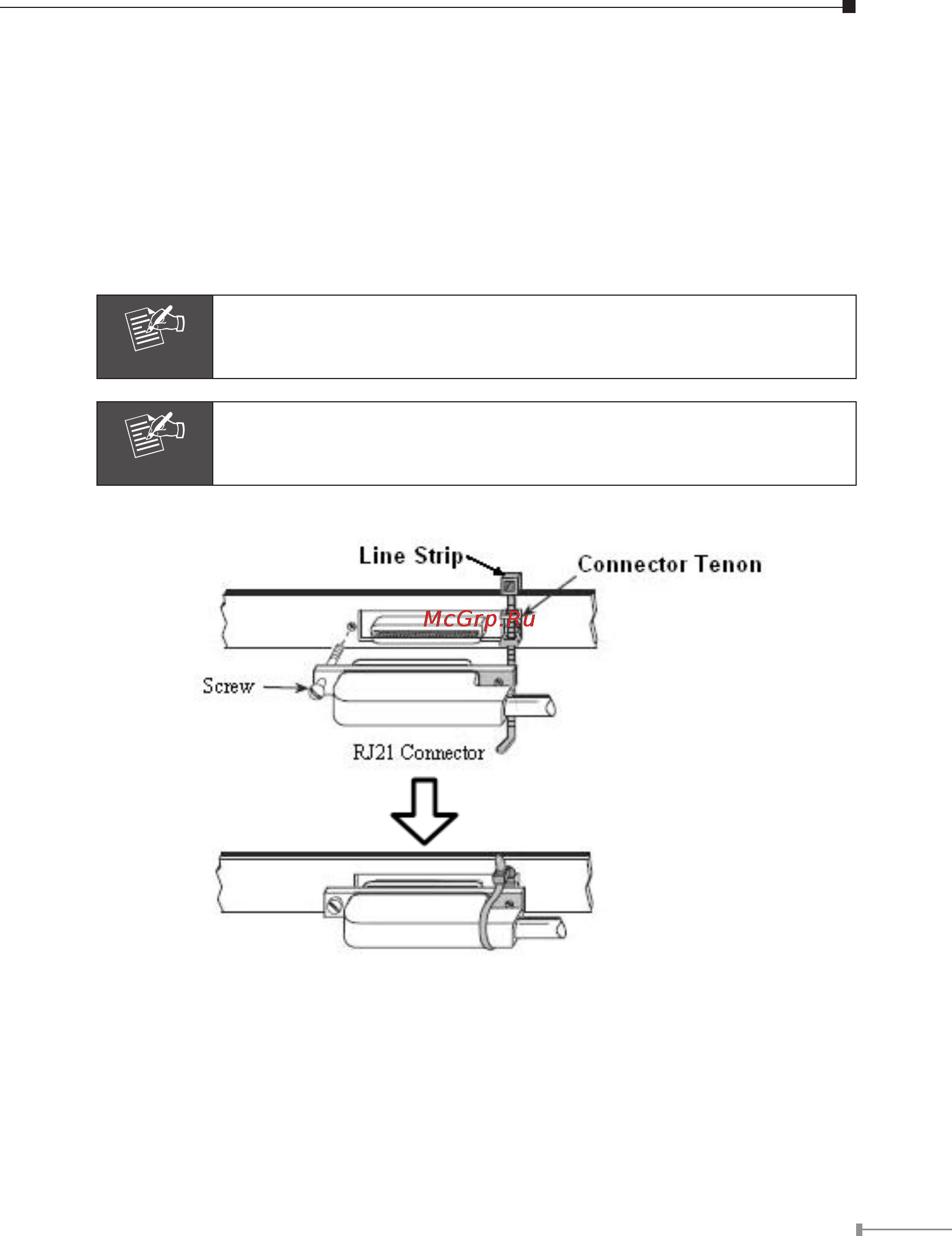

Please plug-in the RJ-21 cable with connector Tenon as below

figure.
