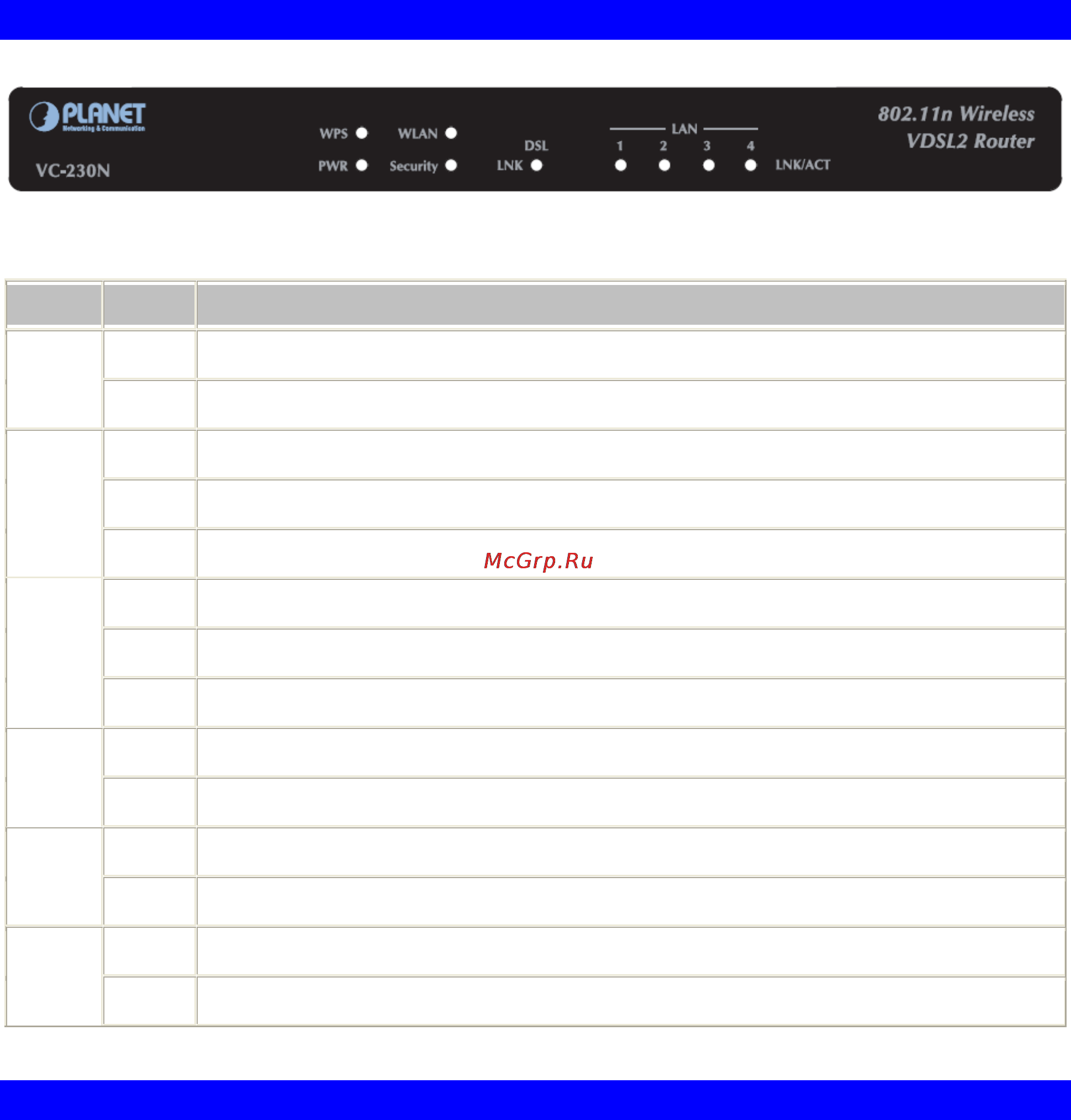

Front Panel of VC-230N
Front Panel LED definition
LED State Description
ON When the router is powered on, and in ready state.
PWR
OFF
When the router is powered off.
ON
WPS client registration is successful.
Flashing
WPS client registration window is currently open.
WPS
OFF
WPS is not available, or WPS is not enabled or initialized.
ON
WLAN radio is on.
Flashing
Data is being transmitted through WLAN.
WLAN
OFF
WLAN radio is off.
ON Enable WLAN encryption
Security
OFF Disable WLAN encryption
Flashing Router is trying to establish a VDSL2 connection to VDSL2 device or telecom’s network.
DSL
ON The VDSL2 connection connected successfully.
Flashing Data is being transmitted or received via the corresponding LAN port.
LAN1-4
ON The port is up.
10
