Planet VC-230N [28/77] For vdsl2 router cpe side
![Planet VC-230N [28/77] For vdsl2 router cpe side](/views2/1071632/page28/bg1c.png)

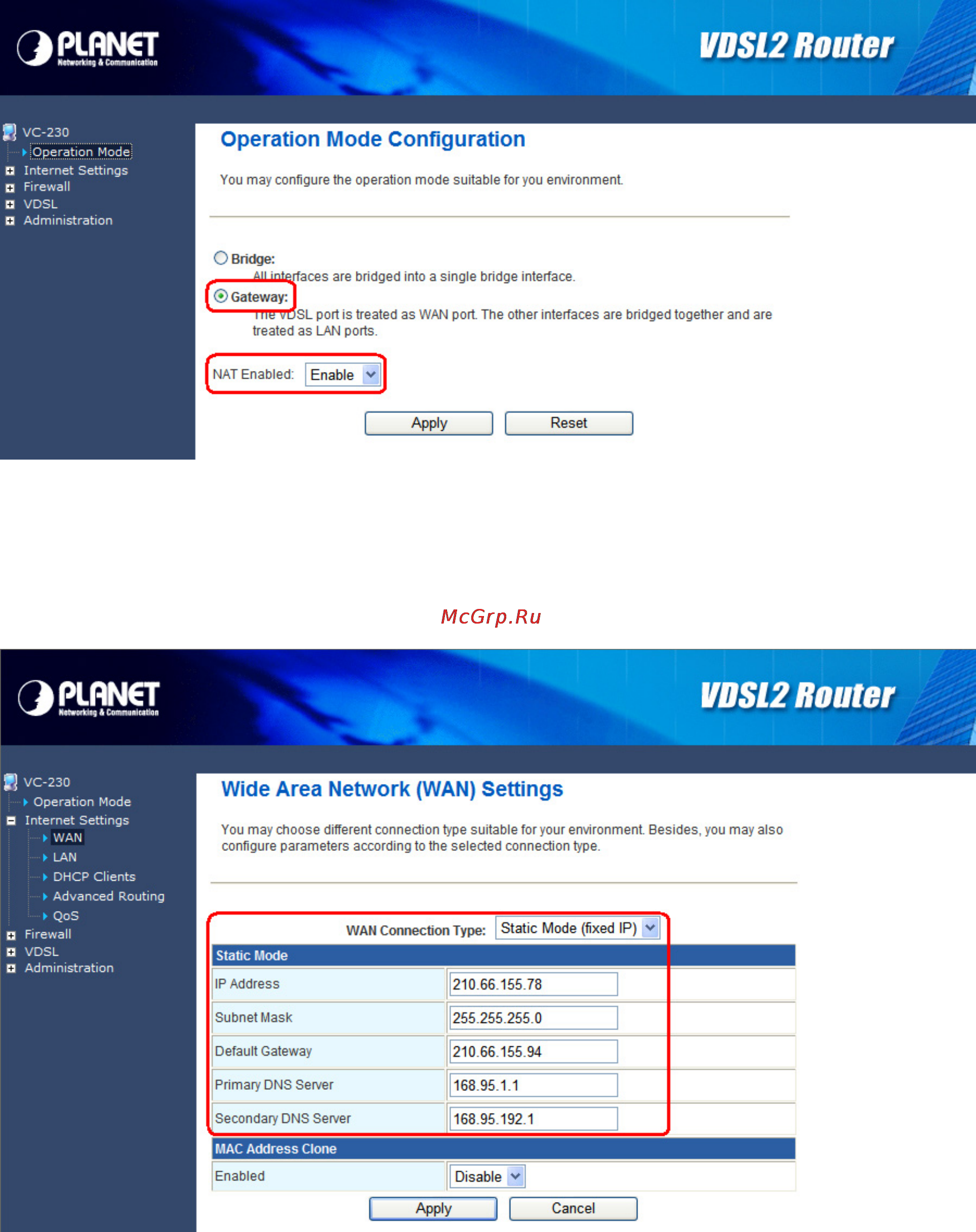

For VDSL2 ROUTER CPE side
Step 1: Select the Router mode and enable the NAT.
Step 2: Configure your WAN settings, type your WAN IP, Mask, Gateway and
DNS.
28
