Planet VC-230N [22/77] Applications
![Planet VC-230N [22/77] Applications](/views2/1071632/page22/bg16.png)
2.5 Applications
The VDSL2 ROUTER supports two modes, users can select Router or Bridge mode for
your applications. Please check as below examples for more details.

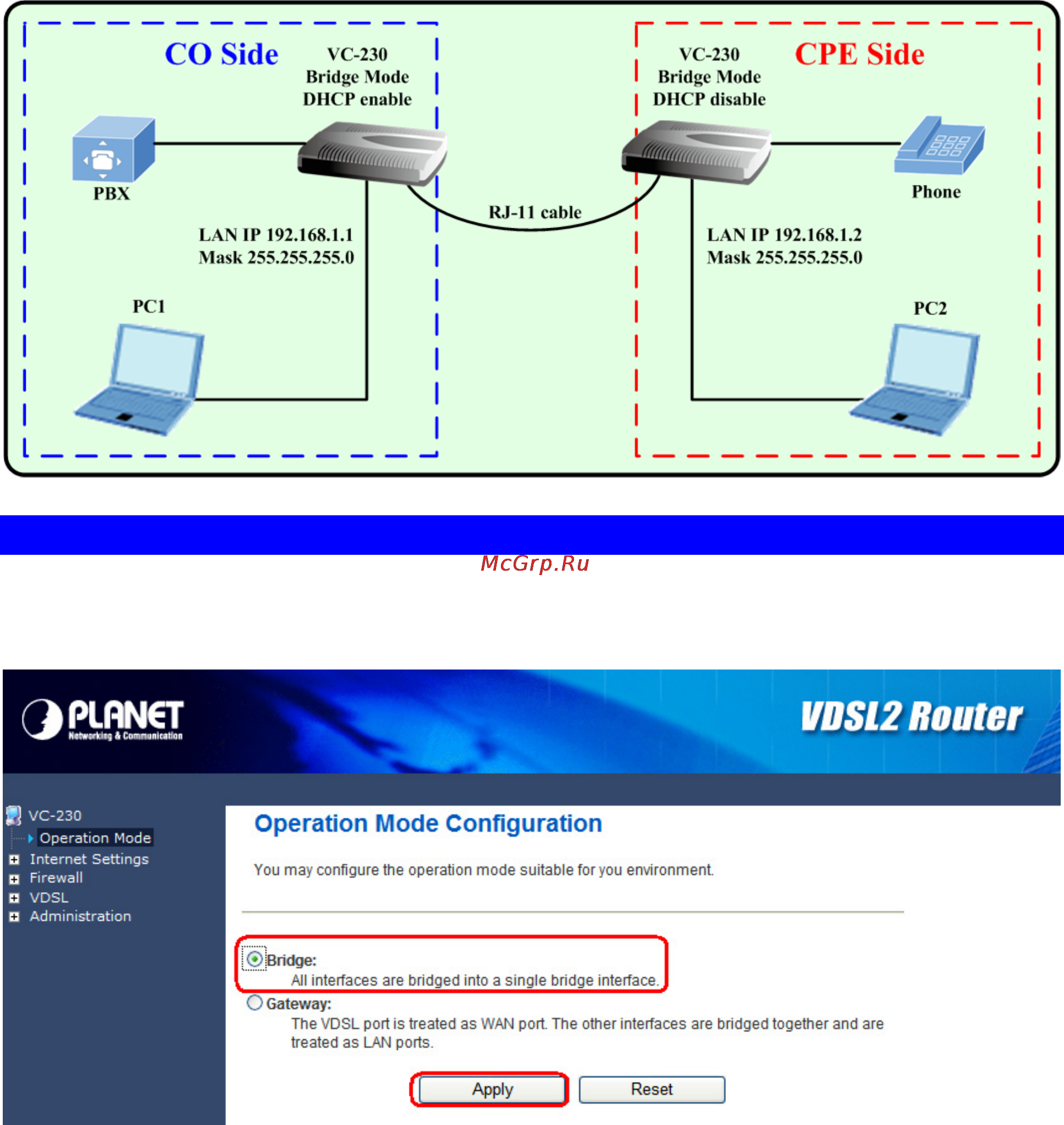

2.5.1 Bridge Mode for LAN-to-LAN connection
Web UI Configuration
For VDSL2 ROUTER CO side
Step 1: Select the Bridge mode.
22
