Planet VC-230N Инструкция по эксплуатации онлайн [23/77] 66136
![Planet VC-230N Инструкция по эксплуатации онлайн [23/77] 66136](/views2/1071632/page23/bg17.png)

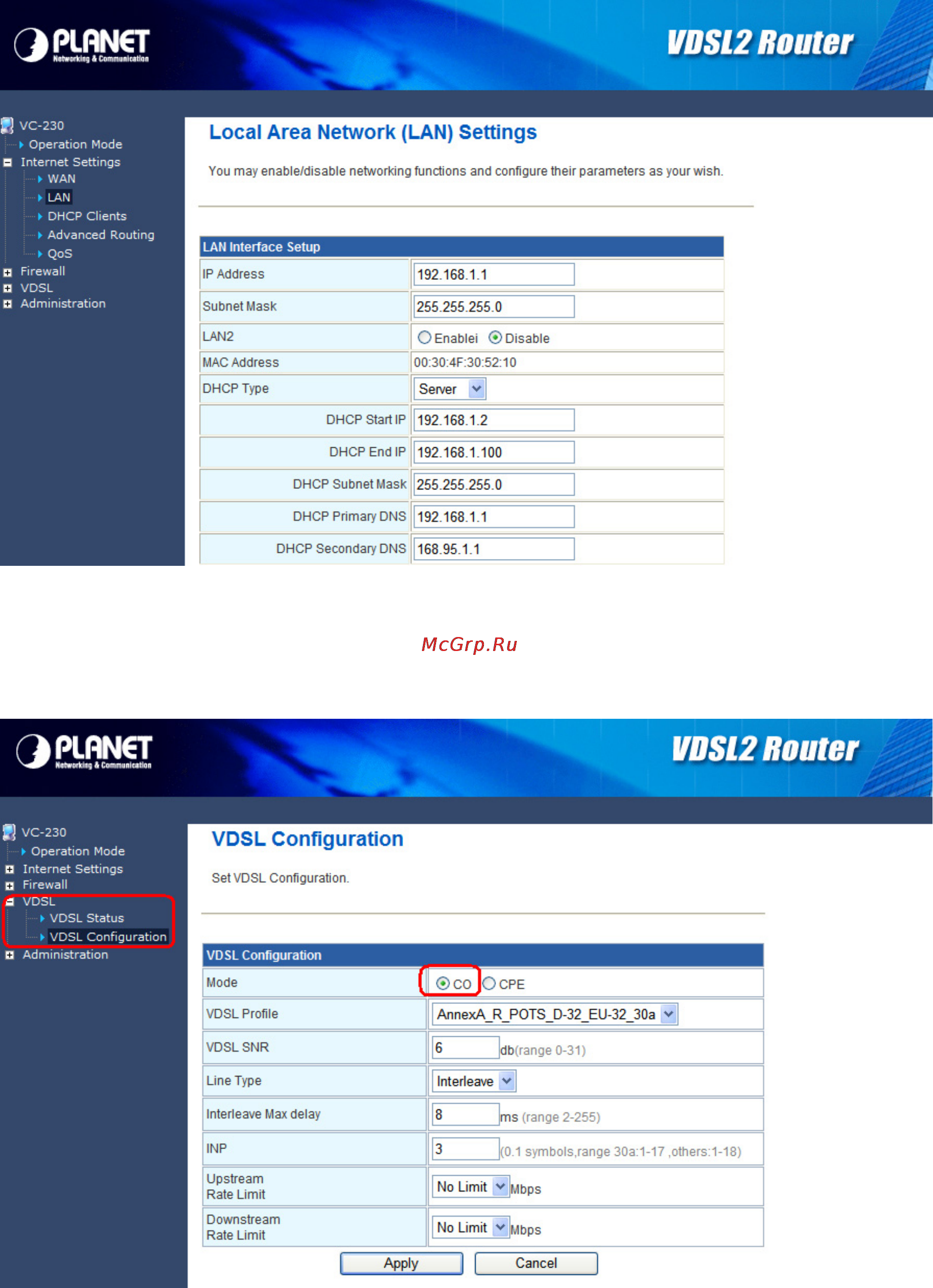

Step 2: Setup your LAN IP, for example, we use the 192.168.1.1 / 255.255.255.0
and enable DHCP server for VDSL2 ROUTER CO side.
Step 3: Modify your VDSL mode, default is CPE mode. Select the VDSL CO
mode.
23
