3.3.2 Advanced

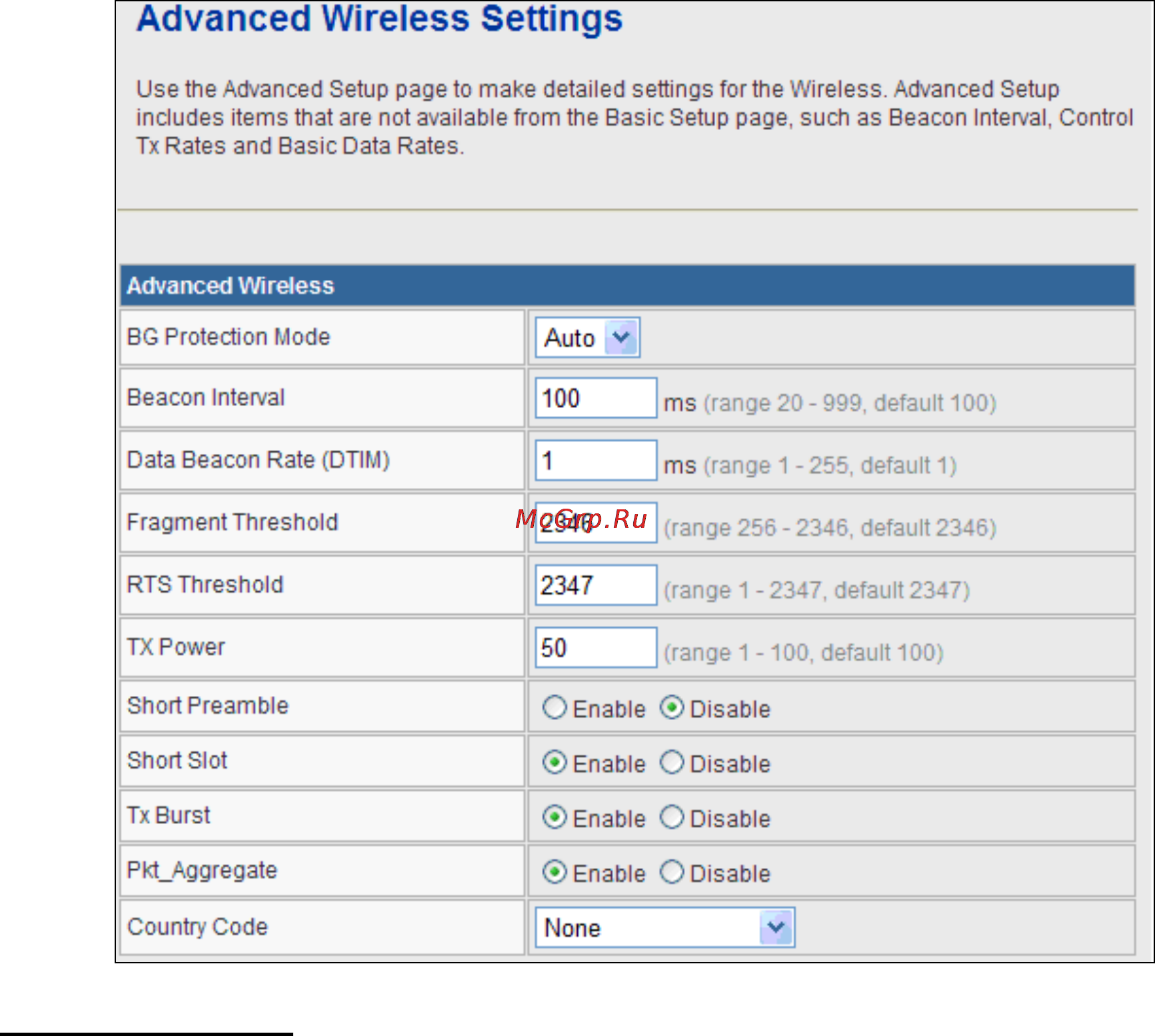

This page makes more detailed settings for the AP. Advanced Wireless Settings page

includes items that are not available in the Basic Wireless Settings page, such as basic

data rates, beacon interval, and data beacon rate.

Advanced Wireless

BG Protection Mode: It provides 3 options, including Auto, On, and Off. The default

BG protection mode is Auto.

Beacon Interval: The interval time range is between 20ms and 999ms for each

beacon transmission. The default value is 100ms.

Date Beacon Rate (DTM): The DTM range is between 1 ms and 255 ms. The default

value is 1ms.

Fragment Threshold: This is the maximum data fragment size (between 256 bytes

and 2346 bytes) that can be sent in the wireless network before the router fragments

the packet into smaller data frames. The default value is 2346.

RTS Threshold: Request to send (RTS) is designed to prevent collisions due to

hidden node. A RTS defines the biggest size data frame you can send before a RTS

handshake invoked. The RTS threshold value is between 1 and 2347. The default

value is 2347.

If the RTS threshold value is greater than the fragment threshold value, the RTS

handshake does not occur. Because the data frames are fragmented before they

reach the RTS size.

Tx Power: The Tx Power range is between 1 and 100. The default value is 100.

Short Preamble: Select Disable or Enable.
