1.3 Physical Details

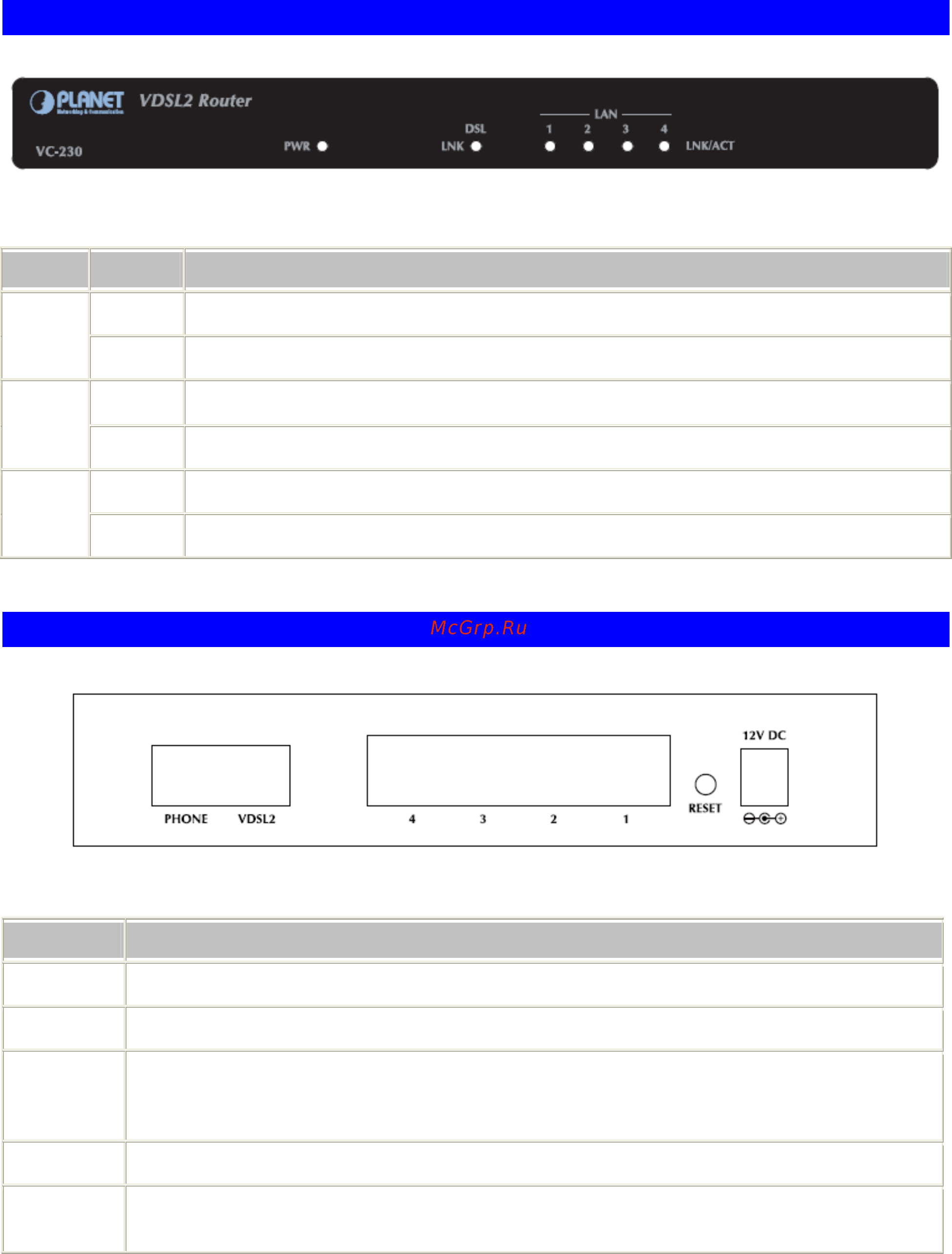

Front Panel of VC-230

Front Panel LED definition

LED State Description

ON When the router is powered on, and in ready state.

PWR

OFF

When the router is powered off.

Flashing Router is trying to establish a VDSL2 connection to VDSL2 device or telecom’s network.

DSL

ON The VDSL2 connection connected successfully.

Flashing Data is being transmitted or received via the corresponding LAN port.

LAN1-4

ON The port is up.

Rear Panel of VC-230

Rear Panel Port and Button Definition

Connector Description

POWER Power connector with 12V DC 1 A

RESET Press more than 3 seconds for reset to factory default setting.

LAN (1-4)

Router is successfully connected to a device through the corresponding port (1, 2, 3, or 4). If

the LED light of LNK/ACT is flashing, the Router is actively sending or receiving data over that

port.

PHONE Built-in splitter for POTS connection.

VDSL2

The RJ-11 connector allows data communication between the router and the VDSL2 network

through a twisted-pair phone wire
