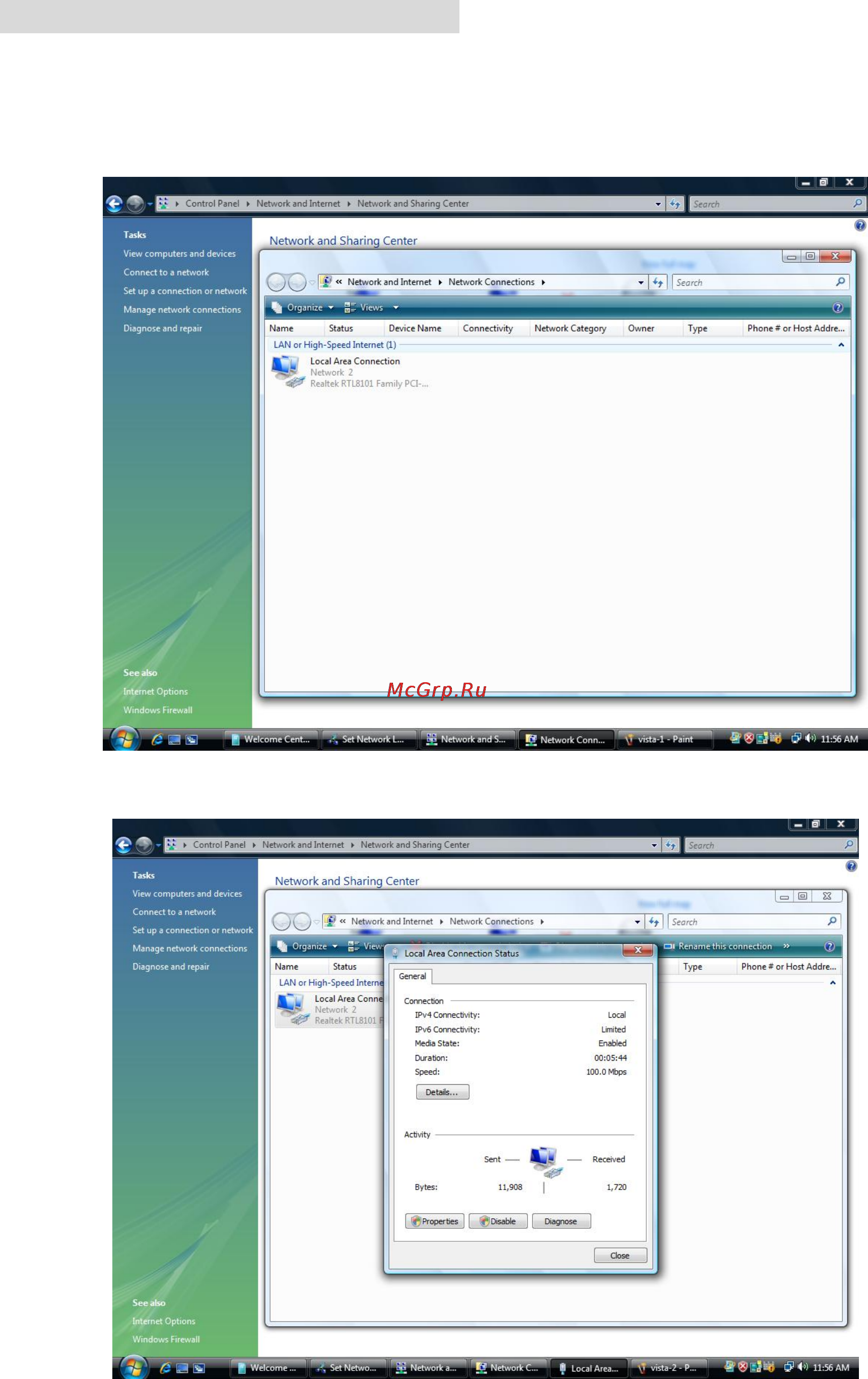

2.3 Configuring the Network Properties
Configuring PC in Windows Vista
1. Go to Start / Control Panel / Network and Internet / Network and Sharing Center.
Double-click on Network Connections.
2. Double-click Local Area Connection.
3. In the Local Area Connection Status window, click Properties.
14
