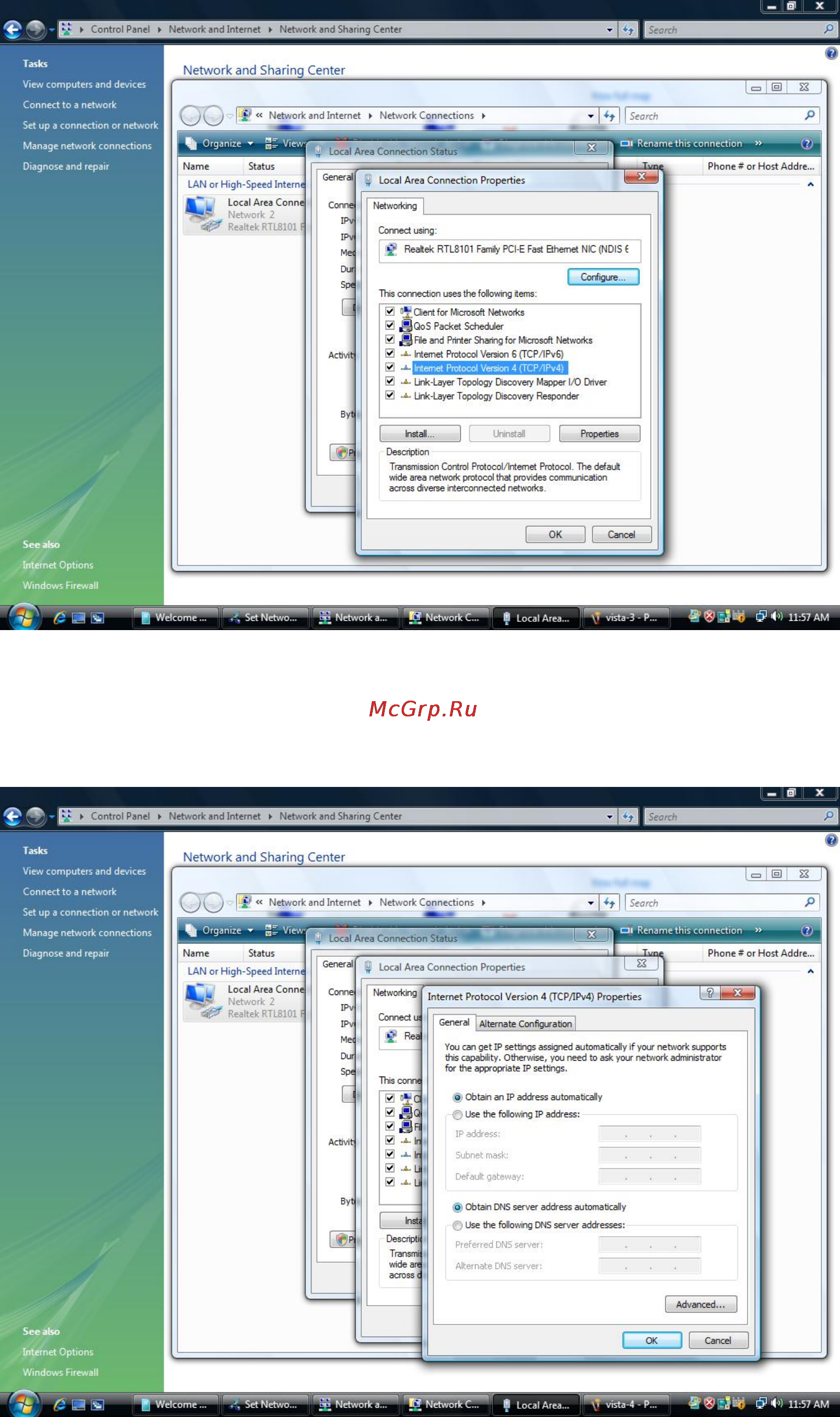

4. Select Internet Protocol Version 4 (TCP/IPv4) and click Properties.
5. Select the Obtain an IP address automatically and the Obtain DNS server address
automatically radio buttons.
6. Click OK to finish the configuration.
15
