3.4.2 Port Forwarding (Virtual Server)
The Virtual Server is the server or server(s) behind NAT (on the LAN), for example, Web
server or FTP server, that you can make visible to the outside world even though NAT
makes your whole inside network appear as a single machine to the outside world.
This page allows you to set virtual server to provide services on the Internet.

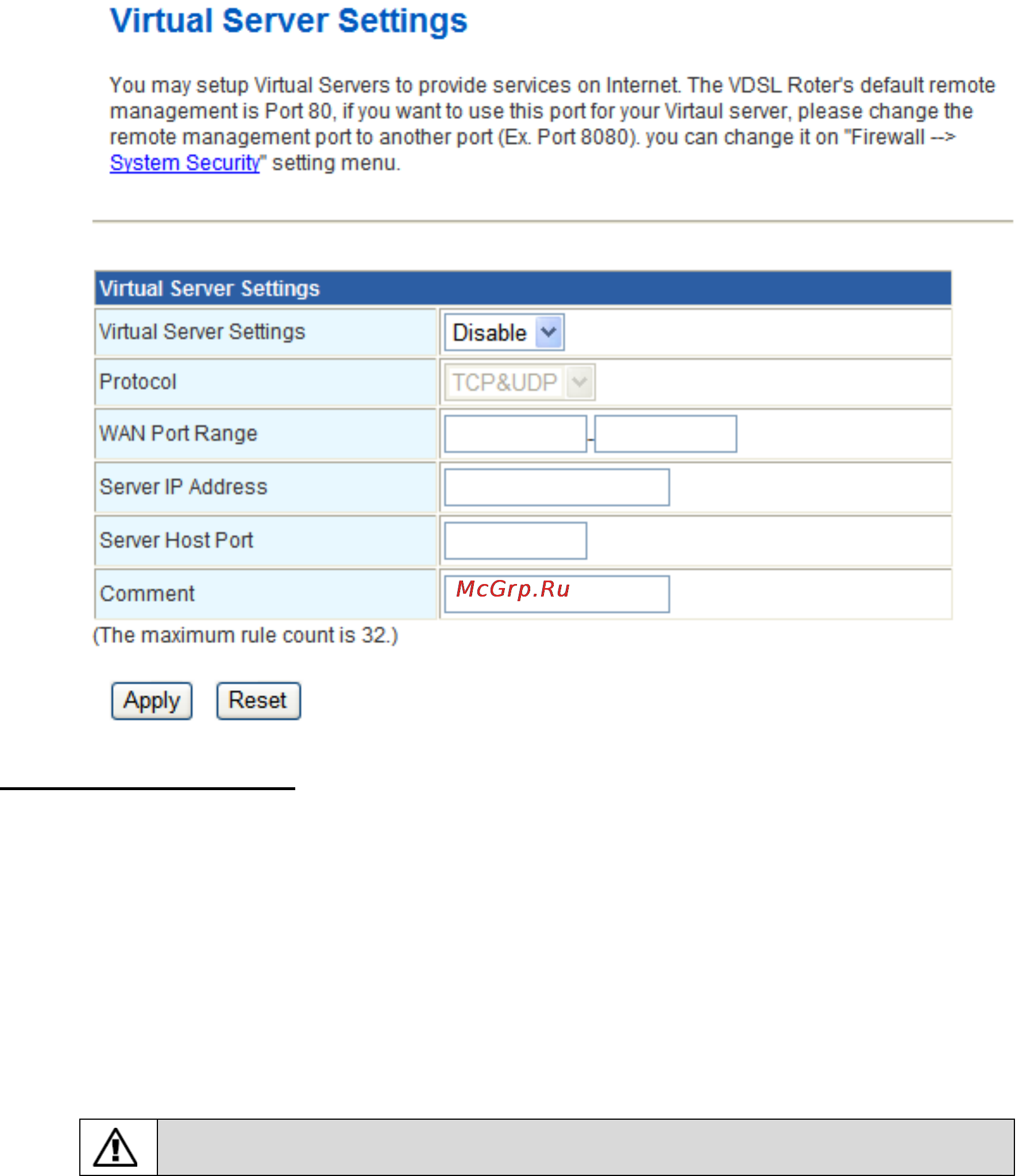

Virtual Server Settings
Virtual Server Settings: Enable or disable this function. After selecting Enable, you
can set the following parameters.
Protocol: There are 3 options, including none, TCP& UDP, TCP, and UDP.
WAN Port Range: You can setup your port range for your WAN side.
Server IP Address: Enter the virtual server IP address in internal network.
Server Host Port: Set the port range of your virtual server.
Comment: Add description for this rule.
The maximal rule number you can add is 32.
Click Apply to make the configuration take effect. Click Reset to cancel the new
configuration.
56
