Planet VC-230N Инструкция по эксплуатации онлайн [31/77] 66136
![Planet VC-230N Инструкция по эксплуатации онлайн [31/77] 66136](/views2/1071632/page31/bg1f.png)

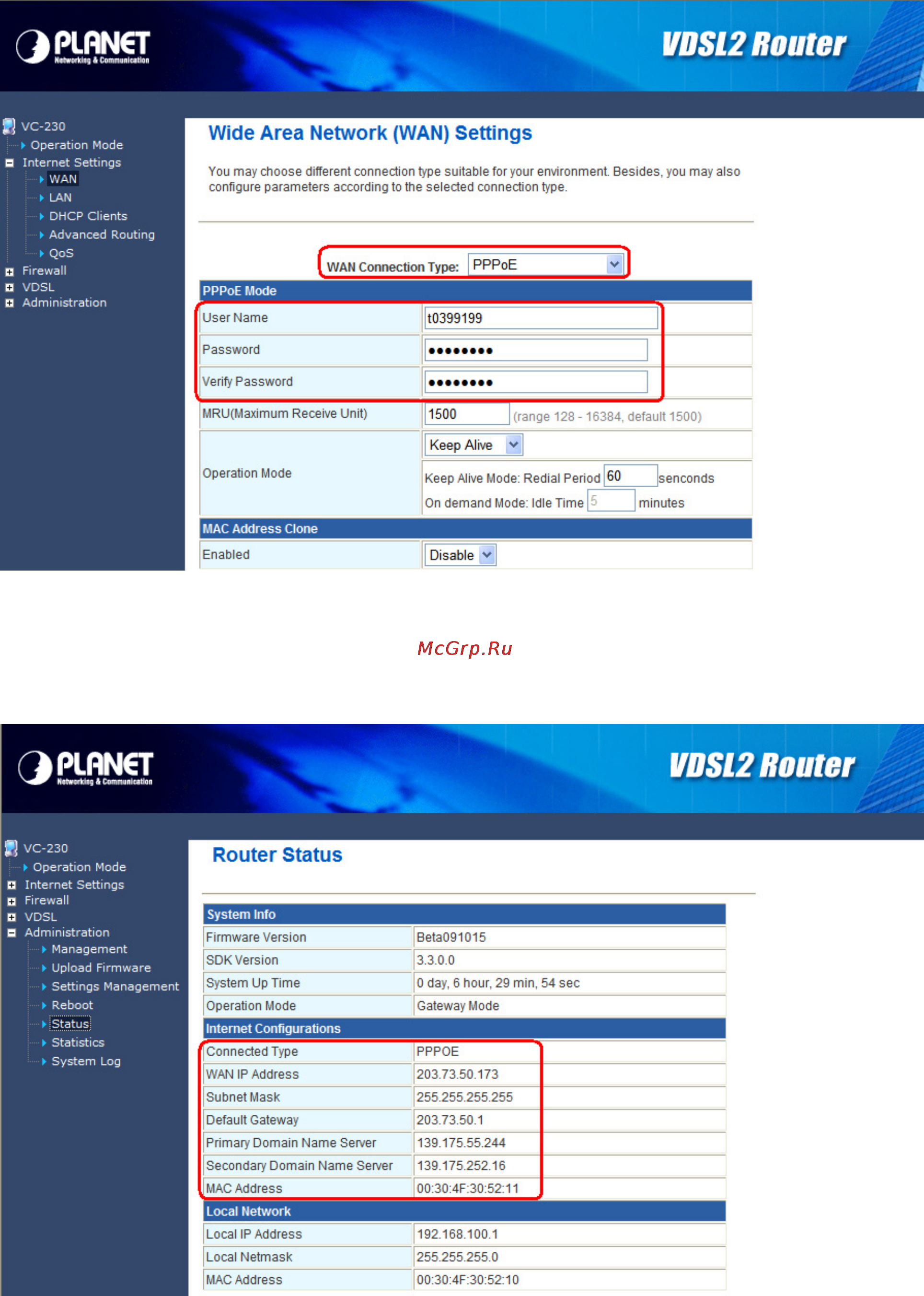

Step 2: Configure your WAN settings, select the PPPoE connection type and
enter your PPPoE user name and password.
Step 3: When the PPPoE connection is OK, the PC will access to Internet through
PPPoE connection.
31
