¾ L2TP

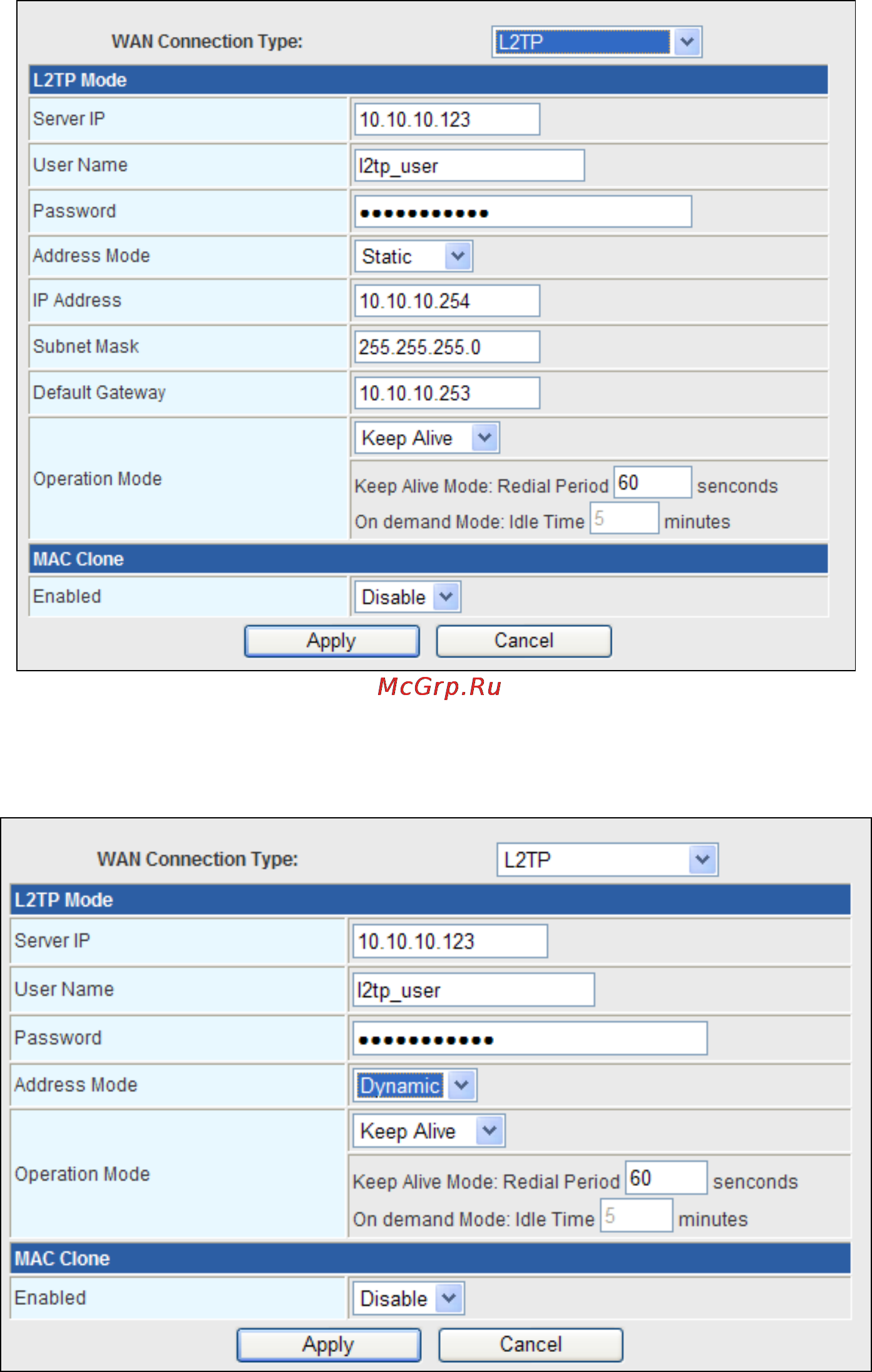

Select L2TP in the WAN Connection Type drop-down list and the following page
appears. There are two address modes: Static and Dynamic.
1. If you select Static in the Address Mode field, the page shown in the following figure
appears.
2. If you select Dynamic in the Address Mode field, the page shown in the following
figure appears.
37
