9
Chapter 3: Using EdgeOSEdgeRouter
™
Lite User Guide
Ubiquiti Networks, Inc.

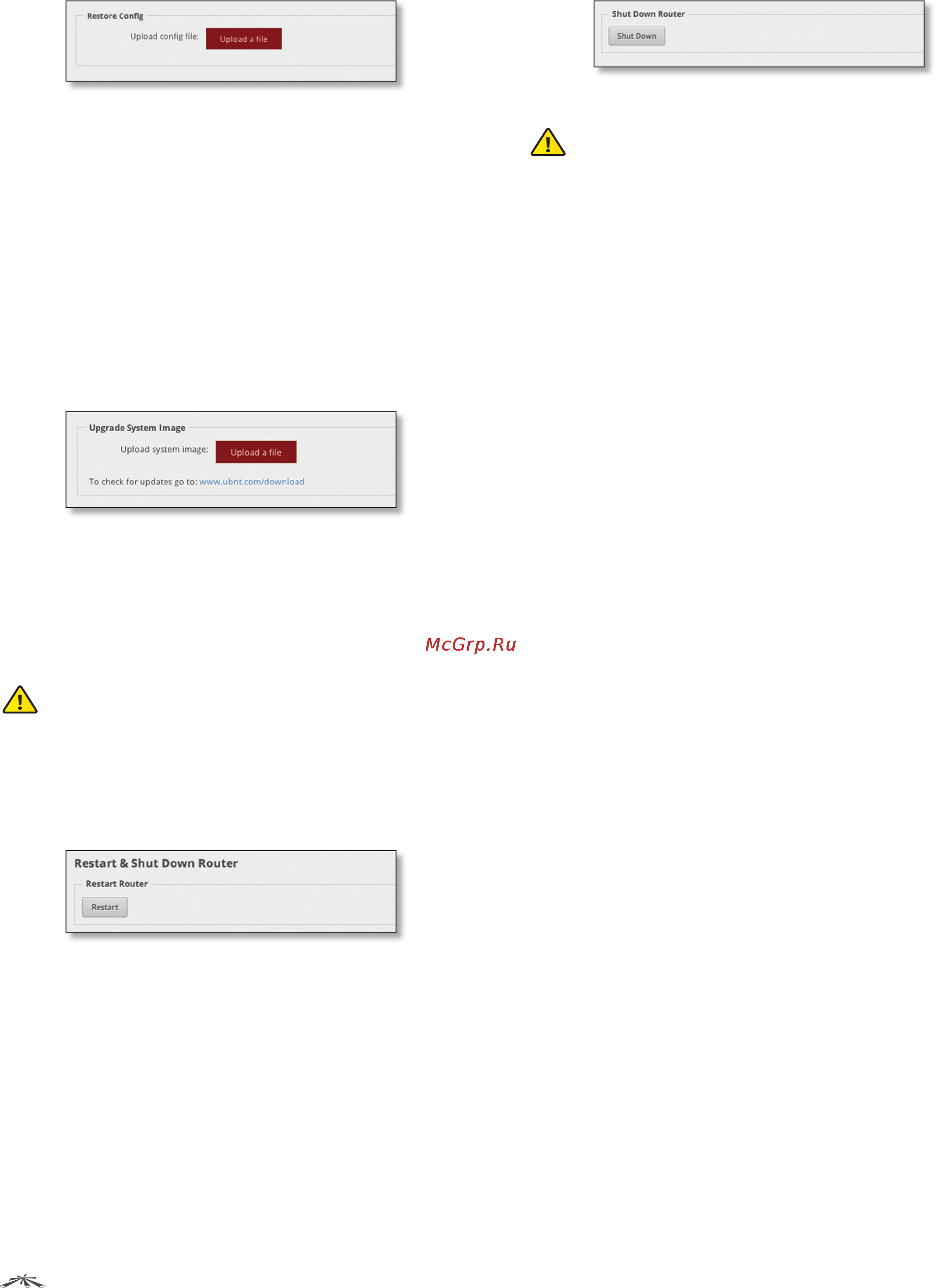

Restore Config
Upload config file Click Upload a file to locate the
new configuration file. Select the file and click Choose.
We recommend that you back up your current system
configuration before uploading the new configuration.
Upgrade System Image
Download the firmware file from downloads.ubnt.com
and save it on your computer.
The firmware update is compatible with all configuration
settings. The system configuration is preserved while
the EdgeRouter is updated with a new firmware version.
However, we recommend that you back up your current
system configuration before updating the firmware.
Upload system image To update the EdgeRouter with
new firmware, click Upload a file and locate the new
firmware file. Then click Choose.
Please be patient, as the firmware update routine can take
three to seven minutes. You cannot access the EdgeRouter
until the firmware update routine is completed.
WARNING: Do not power off, do not reboot, and
do not disconnect the EdgeRouter from the power
supply during the firmware update process as these
actions will damage the EdgeRouter!
Restart & Shut Down Router
Restart Router
Restart To turn the EdgeRouter off and back on again,
click this option.
Shut Down Router
Shut Down To turn off the EdgeRouter, click this option.
WARNING: Click Shut Down to properly shut down
the EdgeRouter. An improper shutdown, such
as disconnecting the EdgeRouter from its power
supply, runs the risk of data corruption!
Click the top right corner of the System tab to close it.
