24
Chapter 6: Security TabEdgeRouter
™
Lite User Guide
Ubiquiti Networks, Inc.
A table displays the following information about each
group. Click a column heading to sort by that heading.
Name The name of the group is displayed.
Description The keywords you entered to describe the
group are displayed.
Type The type of group is displayed.
Number of group members The number of members is
displayed.
Actions Click the Actions button to access the following
options:
• Config To configure the group, click Config. Go to the
Configure the Firewall Group section below.
• Delete Remove the group.

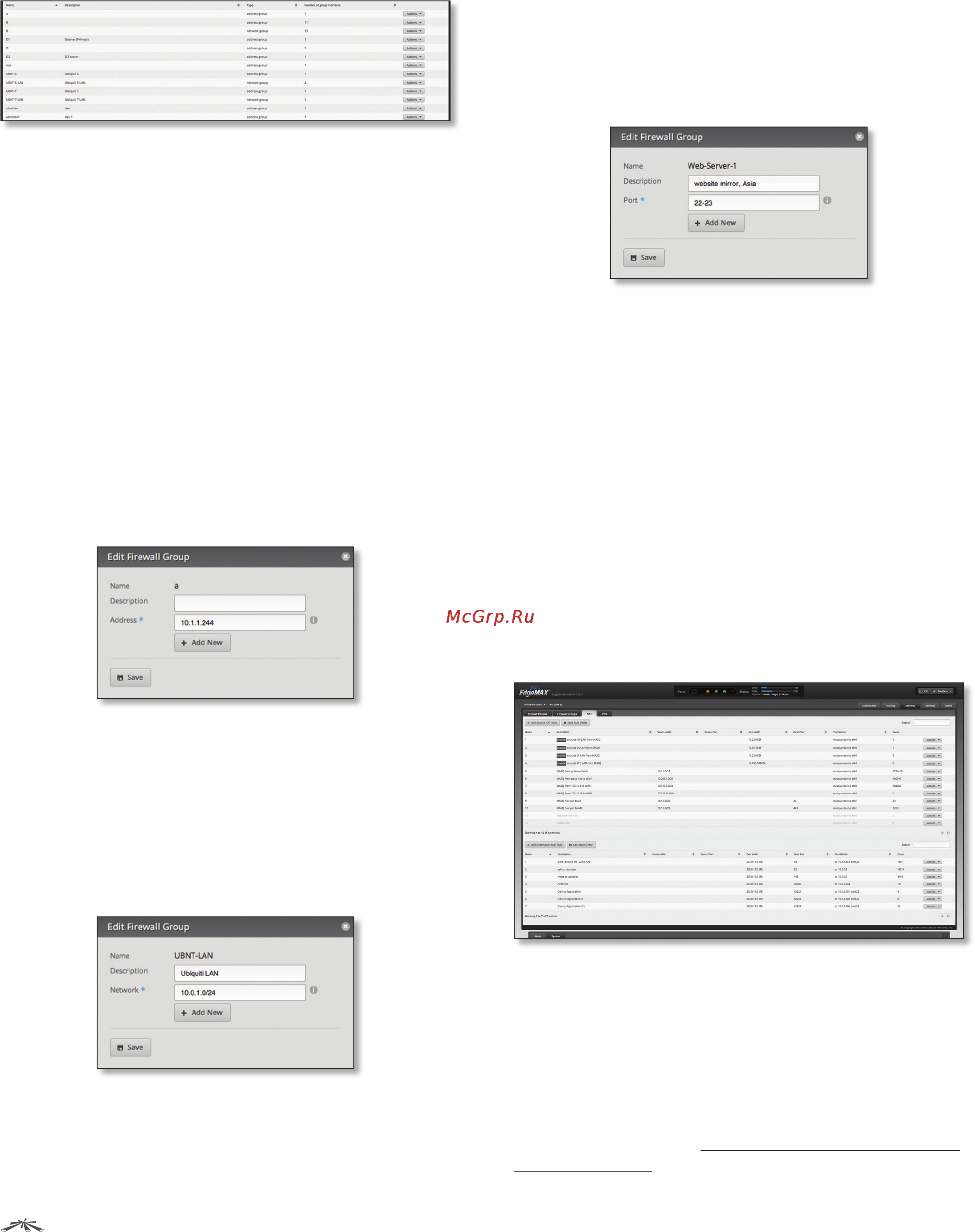

Configure the Firewall Group
After you click Config, the Edit Firewall Group screen
appears. Follow the instructions for your group type:
• Address Group Make changes as needed.
- Name The name of this group is displayed.
- Description Enter keywords to describe this group.
- Address Enter the IP address or range of addresses
(examples: 192.0.2.1 or 192.0.2.1-15). Click Add New to
enter more IP addresses.
Click Save to apply your changes.
• Network Group Make changes as needed.
- Name The name of this group is displayed.
- Description Enter keywords to describe this group.
- Network Enter the IP address and subnet mask using
slash notation:
<network_IP_address>/<subnet_mask_number>
(example: 192.0.2.0/24).
Click Add New to enter more network addresses.
Click Save to apply your changes.
• Port Group Make changes as needed.
- Name The name of this group is displayed.
- Description Enter keywords to describe this group.
- Port Enter the port name, number, or range. Click
Add New to enter more ports.
Click Save to apply your changes.
NAT
NAT changes the addressing of packets. A NAT rule tells
the EdgeRouter what action to take with a specific packet.
Define the following:
• Criteria for matching packets
• Action to take with matching packets
Rules are organized into a set and applied in the specified
Rule Order. If the packets match a rule’s criteria, then its
action is performed. If not, then the next rule is applied.
Source NAT Rules
Source NAT changes the source address of packets;
a typical scenario is that a private source needs to
communicate with a public destination. A Source NAT Rule
goes from the private network to the public network and
is applied after routing.
Add Source NAT Rule To create a new rule, click Add
Source NAT Rule. Go to “Add or Configure a Source NAT
Rule” on page 25.
